Visaton TR 6.8, 100 V Transformer

Previous Product | Next Product
TR 6.8 — Product photo

Product photo · Enlarge image

TR 6.8 — Product photo Product photo TR 6.8 — Mounting drawing Mounting drawing

Product photographs and manufacturer drawings. Images are not to scale.

TR 6.8 — Product photo

Product photo

Open original image
Part number: 1806

A 100 V line transformer for connecting a suitable 4 Ω or 8 Ω loudspeaker to a PA system.

Line system
100 V
Power taps
6 / 3 / 1.5 W
Speaker connections
4 / 8 Ω
Frequency range
30–22,000 Hz (−3 dB)
Lead length
0.15 m
Net weight
0.2 kg
ex VAT
£16.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The TR 6.8 offers primary taps at 6 W, 3 W and 1.5 W, with 4 Ω and 8 Ω secondary connections. Select the tap to suit the required level and include it in the amplifier’s total connected load.

Typical applications

  • Adapting a suitable low-impedance speaker to a 100 V PA line
Full specifications
TR 6.8
System100 V
Primary taps6 W / 1.7 kΩ; 3 W / 3.3 kΩ; 1.5 W / 6.7 kΩ
Secondary4 Ω / 8 Ω
Frequency range30–22,000 Hz (−3 dB)
Lead length0.15 m
Net weight0.2 kg
Dimensions and drawings

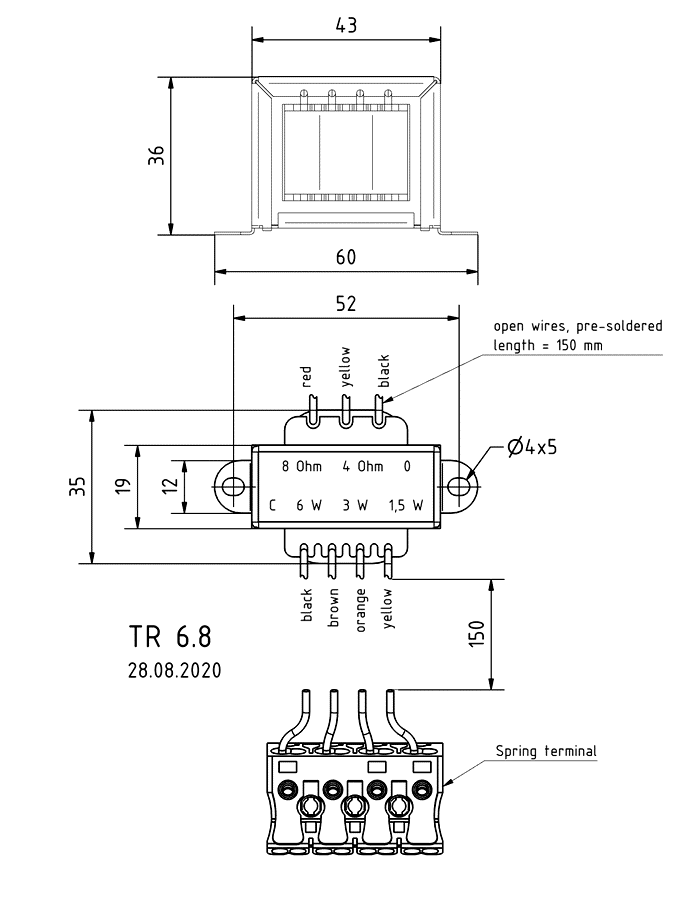

TR 6.8 — Mounting drawing

Mounting drawing · Open original image

Installation and cabinet guidance

Disconnect and isolate the line amplifier before wiring. Follow the manufacturer connection drawing for primary taps and the matching 4 Ω or 8 Ω secondary.

Add the selected wattage of every transformer on the line and keep within the amplifier rating. Check loudspeaker power handling and provide a secure, insulated mounting.
