Visaton BG 13 P 8 Ohm, 5 Inch, Full Range Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The BG 13 P combines a broad response with an 8 Ω load and 20 W rated power. Its compact round frame suits multi-driver and small-monitor designs.
Typical applications
- PA arrays
- Projection loudspeakers
- Small monitor cabinets
Full specifications
| Rated power | 20 W |
|---|---|
| Maximum power | 40 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 120–20000 Hz |
| Mean sound pressure level | 92 dB (1 W/1 m) |
| Opening angle (-6 dB) | 61°/4000 Hz |
| Excursion limit | ±2 mm |
| Resonance frequency fs | 168 Hz |
| Magnetic induction | 1.0 T |
| Magnetic flux | 190 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 4.5 mm |
| Cut-out | 110 mm |
| Net weight | 0.43 kg |
| D.C. resistance Rdc | 5.2 Ω |
| Mechanical Q factor Qms | 3.06 |
| Electrical Q factor Qes | 1.58 |
| Total Q factor Qts | 1.04 |
| Equivalent volume Vas | 2.0 l |
| Effective piston area Sd | 68 cm² |
| Dynamically moved mass Mms | 3.0 g |
| Force factor Bxl | 3.2 Tm |
| Inductance of the voice coil L | 0.65 mH |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Temperature range | –25 to 70 °C |

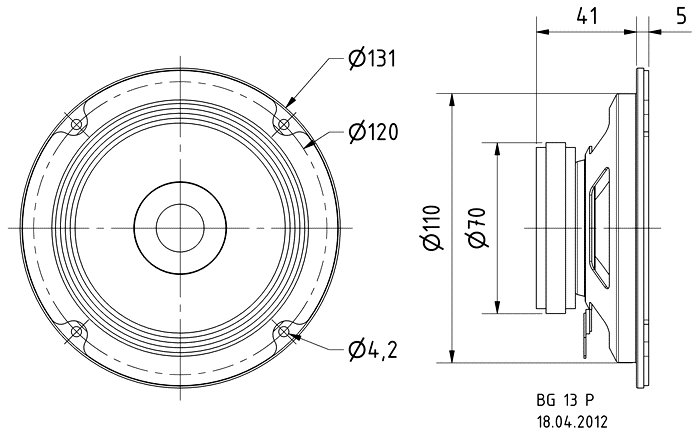

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 110 mm panel opening and a 120 mm fixing circle, with space behind the speaker for the magnet and terminals. Choose the enclosure to suit the required response and available space.
Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
