Visaton BG 17 8 Ohm, 6.5 Inch, Full Range Speaker

Previous Product | Next Product
BG 17 · 8 Ω · part 3017 — Product photo

Product photo · Enlarge image

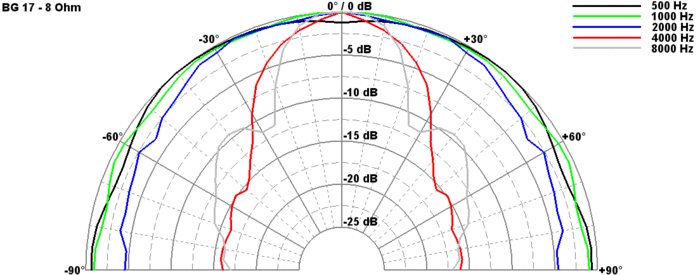

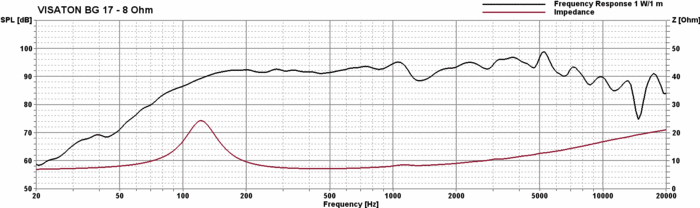

BG 17 · 8 Ω · part 3017 — Product photo Product photo BG 17 · 8 Ω · part 3017 — Dimension drawing Dimension drawing BG 17 · 8 Ω · part 3017 — Response and impedance Response and impedance BG 17 · 8 Ω · part 3017 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

BG 17 · 8 Ω · part 3017 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 3017

A high-sensitivity 16 cm dual-cone driver for vocal and guitar monitors, keyboard cabinets and PA midrange duties.

Nominal size
16 cm / 6.5 inch
Impedance
8 Ω
Rated power
40 W
Cut-out
146 mm
Sensitivity
93 dB (1 W/1 m)
Resonance
120 Hz
£20.95 Business price, ex VAT £25.14 inc VAT at 20%
Maximum quantity available reached.

Description

Its 93 dB sensitivity at 1 W/1 m suits efficient speech and instrument systems. The basket and magnet provide mounting holes for a suitable line transformer.

Typical applications

  • Vocal and guitar monitors
  • Keyboard and organ cabinets
  • PA midrange systems
Full specifications
BG 17 · 8 Ω
Rated power40 W
Maximum power60 W
Nominal impedance8 Ω
Frequency response (−10 dB)80–20000 Hz
Mean sound pressure level93 dB (1 W/1 m)
Opening angle (-6 dB)51°/4000 Hz
Excursion limit±2 mm
Resonance frequency fs120 Hz
Magnetic induction1.0 T
Magnetic flux250 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding7 mm
Cut-out146 mm
Net weight0.72 kg
D.C. resistance Rdc6.3 Ω
Mechanical Q factor Qms2.94
Electrical Q factor Qes0.98
Total Q factor Qts0.74
Equivalent volume Vas8.2 l
Effective piston area Sd143 cm²
Dynamically moved mass Mms6.5 g
Force factor Bxl5.7 Tm
Inductance of the voice coil L0.7 mH
Terminals5.2 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

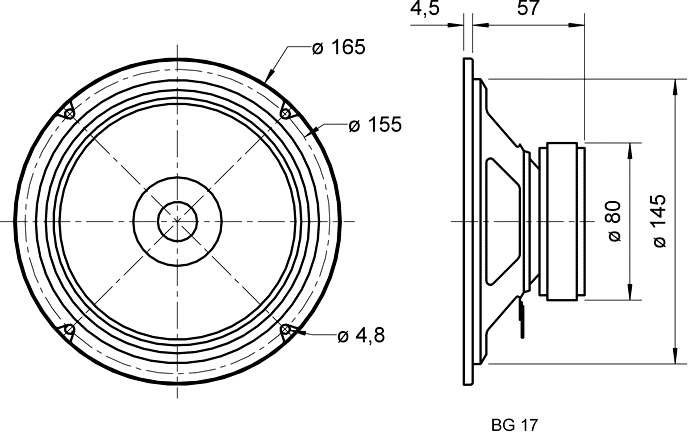

BG 17 · 8 Ω · part 3017 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 146 mm panel opening and a 155 mm fixing circle, with space behind the speaker for the magnet and connections. TR 10.16 and TR 6.8 transformers fit the mounting arrangement and are separate components.

Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
