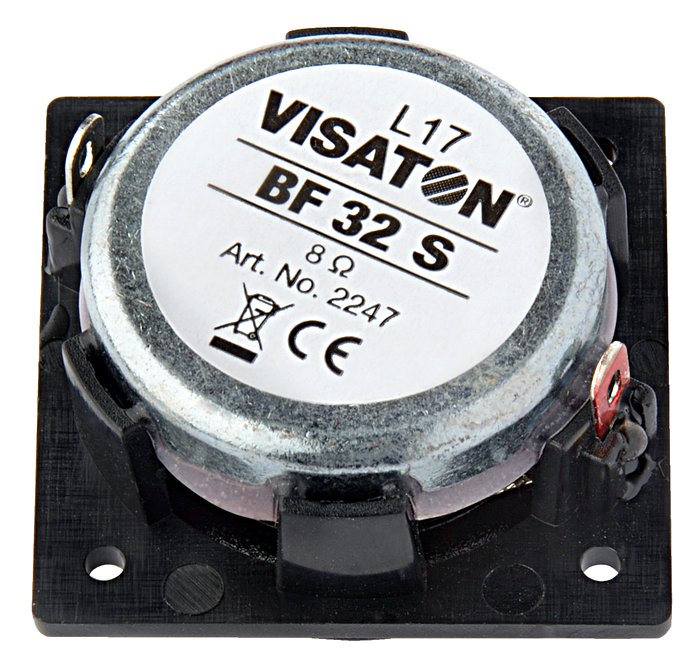

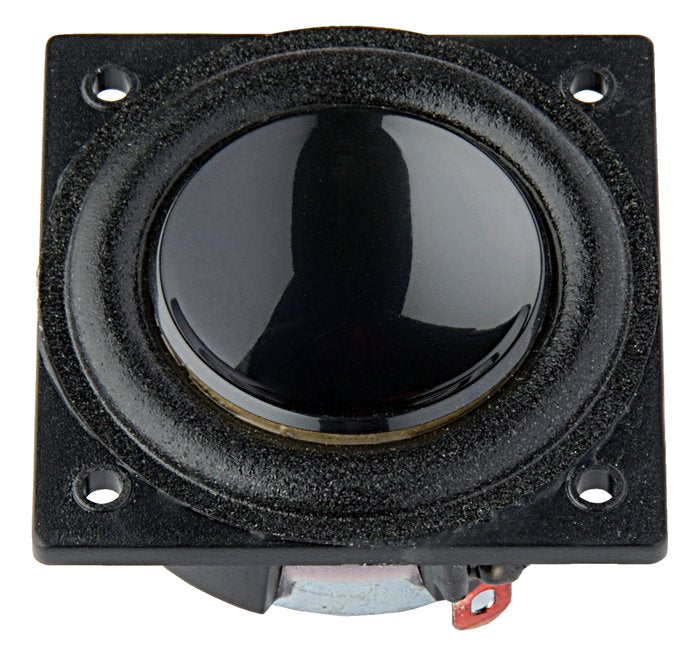

{ "id":15940476535166, "title":"Visaton BF 32 S 8 Ohm, 1.3 Inch, Full Range Miniature Speaker","handle":"visaton-bf-32-s-8-full-range-speaker-art-no-2247", "description":"\u003cp\u003eAn 8 Ω miniature full-range driver with a black cone and a compact neodymium motor.\u003c\/p\u003e\u003cp\u003eThe BF 32 S provides a discreet black front in a small square frame with four fixing holes. Its 20 mm voice coil and shallow construction suit built-in audio where space is limited.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Miniature full-range driver\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 8 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 2 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 150–20000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 3.2 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e 31.5 mm cut-out\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCompact multimedia equipment\u003c\/li\u003e\n\u003cli\u003eDiscreet built-in music and speech systems\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e2 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMaximum power\u003c\/th\u003e\n\u003ctd\u003e5 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e150–20000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e78 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e280 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e20 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of winding\u003c\/th\u003e\n\u003ctd\u003e3 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eCutout diameter\u003c\/th\u003e\n\u003ctd\u003e31.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e28 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003eSolder lugs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTemperature range\u003c\/th\u003e\n\u003ctd\u003e–25 to 70 °C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCheck the 31.5 mm cut-out and fixing pattern against the current dimension drawing.\u003c\/li\u003e\n\u003cli\u003eSolder the leads with controlled heat and provide strain relief. Match the amplifier to the 8 Ω version, part 2247.\u003c\/li\u003e\n\u003cli\u003eSeal the frame to the baffle and keep the cone clear of adjacent parts. The shared datasheet also includes a different impedance version.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/BF%2032%20S_2247_2249_0924_0.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/fullrange-systems\/bf-32-s-8-ohm\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:30:38", "created_at":"2026-06-02T13:28:06", "vendor":"Visaton", "type":"Full-range driver", "tags":["8 Ω","BF","Driver","Impedance_8 Ohm","Loudspeaker","New Products","speaker","Type_Full Range Speaker","Visaton","Visaton Miniature Speakers"], "price":912, "price_min":912, "price_max":912, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499381498238], "variants":[{ "id":57499381498238, "product_id":15940476535166, "product_handle":"visaton-bf-32-s-8-full-range-speaker-art-no-2247", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"2247", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton BF 32 S 8 Ohm, 1.3 Inch, Full Range Miniature Speaker - Default Title", "options":["Default Title"], "price":912, "weight":28, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/bf32s_8_1_0.jpg?v=1789040818"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/bf32s_8_1_0.jpg?v=1789040818", "options":["Title"], "url":"\/products\/visaton-bf-32-s-8-full-range-speaker-art-no-2247"}
