Visaton DK 8 100 V/20 Ohm, Re-Entrant Horn Speaker

Part number: 50203

A high-output 100 V re-entrant horn with five transformer settings, an additional 20 Ω connection and a pivoting metal bracket.

Frequency response
400–5000 Hz
Mean sound pressure level
105 dB (1 W/1 m)
Transformer matching
15 W/10 W/5 W/3 W/1 W / 20 Ω
Protective system
IP 66
Net weight
1.4 kg
Opening angle (-6 dB)
42°/4000 Hz
ex VAT
£134.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DK 8 is intended for clear speech over a 400–5000 Hz range. Visaton lists 105 dB mean sound pressure, 117 dB maximum sound pressure at 15 W/1 m, 15/10/5/3/1 W transformer settings, an additional 20 Ω connection and IP66 protection. The bracket permits wall, ceiling or column mounting.

Typical applications

  • Commercial audio systems
  • Speech and programme reproduction
  • Fixed installations using the stated 100 V or low-impedance connection
Full specifications
DK 8 100 V/20 Ohm, Re-Entrant Horn Speaker
Frequency response400–5000 Hz
Mean sound pressure level105 dB (1 W/1 m)
Opening angle (-6 dB)42°/4000 Hz
Net weight1.4 kg
Transformer matching15 W/10 W/5 W/3 W/1 W / 20 Ω
Sound pressure level109 dB (1 W/1 m)@ 1500 Hz
Max. sound pressure level117 dB (15 W/1 m)
Coloursimilar RAL 7012
Length of cable0.6 m
Protective systemIP 66
Temperature range–25 ... 70 °C
Dimensions and drawings

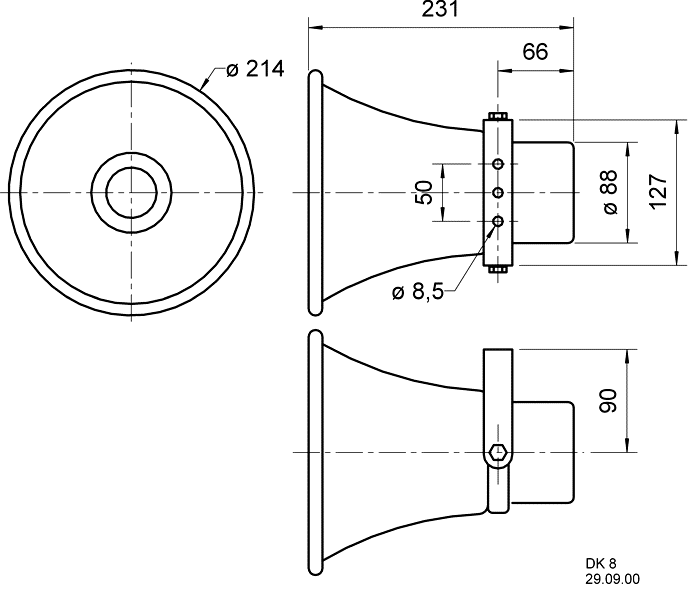

Visaton DK 8 - 100 V/20 Ω — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Isolate the 100 V line before wiring and select the transformer tap for the required local level.

Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.

Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
