Visaton DK 8 P 100 V, 15 W, Re-Entrant Horn Speaker

Visaton DK 8 P - 100 V/15 W — Product photo

Product photo · Enlarge image

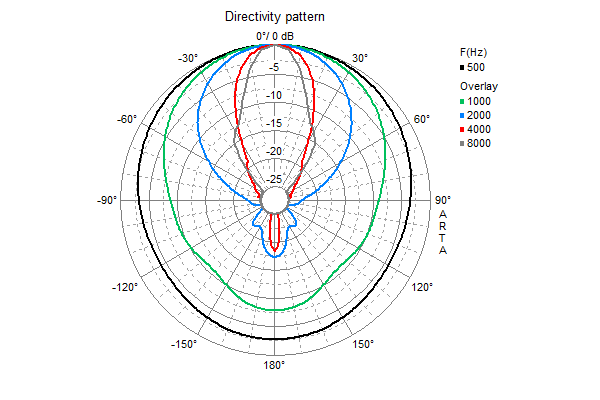

Visaton DK 8 P - 100 V/15 W — Product photoProduct photo Visaton DK 8 P - 100 V/15 W — Dimension drawingDimension drawing Visaton DK 8 P - 100 V/15 W — Response and impedanceResponse and impedance Visaton DK 8 P - 100 V/15 W — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

Visaton DK 8 P - 100 V/15 W — Product photo

Product photo

Open original image
Part number: 50220

A light-grey 100 V re-entrant horn with five transformer settings, an additional 20 Ω connection and a pivoting stainless-steel bracket.

Frequency response
500–5500 Hz
Mean sound pressure level
107 dB (1 W/1 m)
Transformer matching
15 W/10 W/5 W/3 W/1 W / 20 Ω
Protective system
IP 66
Net weight
1.8 kg
Opening angle (-6 dB)
37°/4000 Hz
ex VAT
£134.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DK 8 P 15 W uses an ABS horn body and a stainless-steel pivoting frame for wall, ceiling or column mounting. Visaton lists a 500–5500 Hz response, 107 dB mean sound pressure, 119 dB maximum at 15 W/1 m, 15/10/5/3/1 W transformer settings, an additional 20 Ω connection and IP66 protection.

Typical applications

  • Commercial audio systems
  • Speech and programme reproduction
  • Fixed installations using the stated 100 V or low-impedance connection
Full specifications
DK 8 P 100 V, 15 W, Re-Entrant Horn Speaker
Frequency response500–5500 Hz
Mean sound pressure level107 dB (1 W/1 m)
Opening angle (-6 dB)37°/4000 Hz
Net weight1.8 kg
Transformer matching15 W/10 W/5 W/3 W/1 W / 20 Ω
Sound pressure level110 dB (1 W/1 m)@ 2644 Hz
Max. sound pressure level119 dB (15 W/1 m)
Colourlight grey similar RAL 7035
Length of cable0.6 m
Protective systemIP 66
Temperature range−40 ... 80 °C
Dimensions and drawings

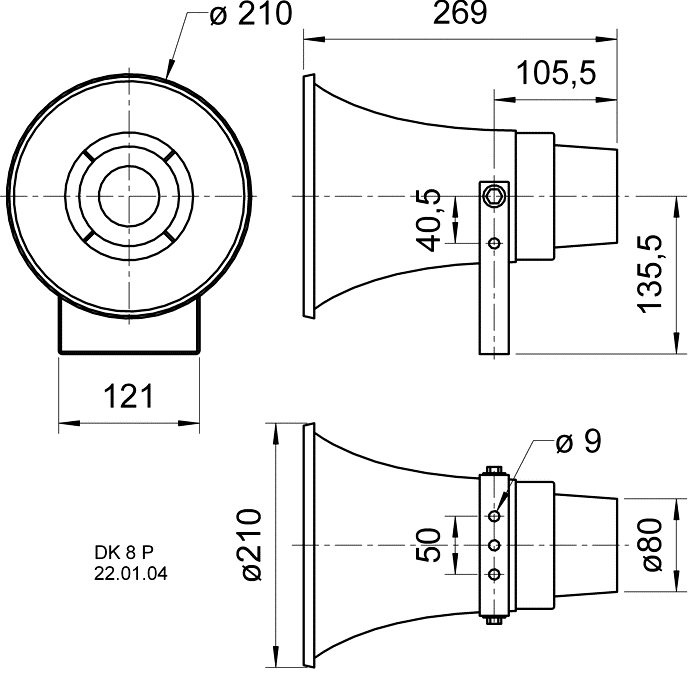

Visaton DK 8 P - 100 V/15 W — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Isolate the 100 V line before wiring and select the transformer tap for the required local level.

Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.

Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
