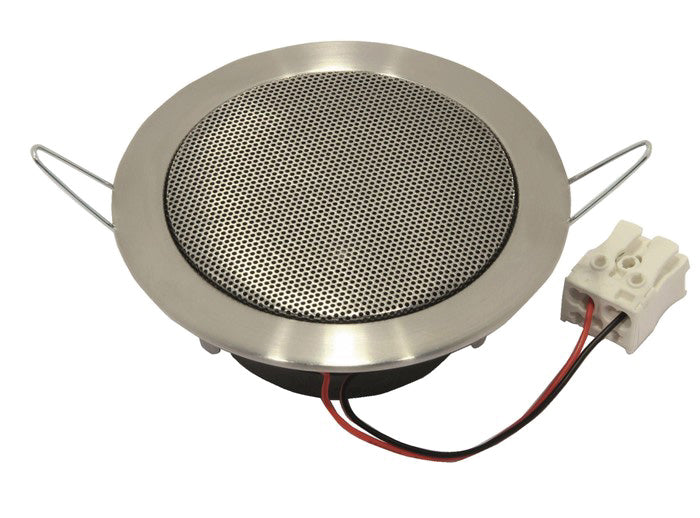

Visaton DL 10 ES 8 Ohm, 4 Inch, Stainless Steel Ceiling Speaker

Part number: 50012

A 20 W ceiling speaker with a brushed stainless-steel face and spring-arm mounting.

Type
Ceiling speaker
Impedance
8 Ω
Rated power
20 W
Cut-out
110 mm
Face / finish
Brushed stainless steel
Mean SPL
86 dB ( 1W/1 m)
ex VAT
£73.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

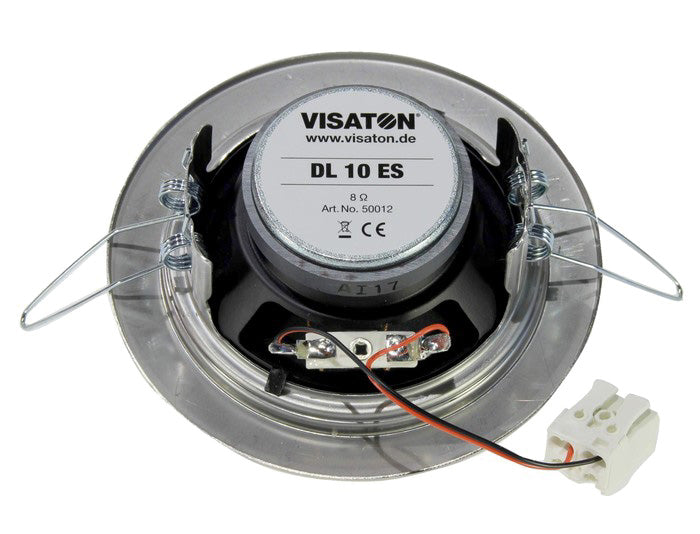

The DL 10 ES is a ceiling speaker with a brushed stainless steel face for music and speech. Spring arms hold it in a circular opening, and spring terminals simplify the connection. This 8 Ω version handles 20 W.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 10 ES · 8 Ω
Rated power20 W
Maximum power30 W
Nominal impedance8 Ω

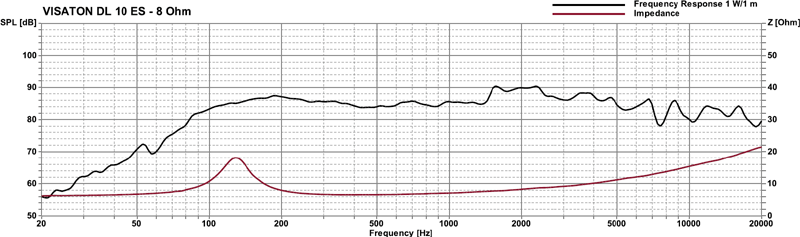

Frequency response (−10 dB)75-20000 Hz
Mean sound pressure level86 dB ( 1W/1 m)

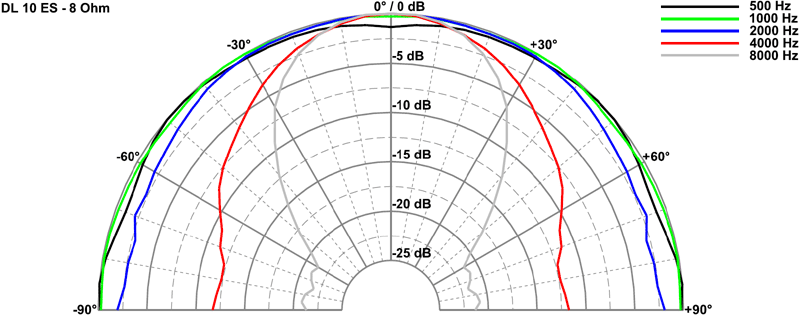

Opening angle (-6 dB)82°/4000 Hz
Excursion limit+/-2.5 mm
Resonance frequency140 Hz
Magnetic induction0.7 T
Magnetic flux130 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding6 mm
Cut-out diameter110 mm
Net weight0.39 kg
Sound pressure level90 dB (1 W/1 m) @ 2100 Hz
ColourBrushed stainless steel
ConnectionsSpring terminals
Mounting depth43 mm
Length of cable0.1 m
Protective systemIP54 — front side in a sealed enclosure
Temperature range-40 to 110 °C
Front diameter135 mm
Dimensions and drawings
DL 10 ES · 8 Ω · part 50012 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 110 mm circular cut-out for the 135 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 43 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect to an amplifier suitable for the 8 Ω load, observing the terminal polarity. Use the spring-terminal connection on the supplied 0.1 m lead. Support the cable so it does not pull on the connection.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
