Visaton EZ 30.10 MW 100 V, Cabinet Speaker

Part number: 50420

A slim IP65 cabinet speaker with two full-range drivers for outdoor public address.

Type
Cabinet speaker
Connection
100 V
Power / taps
12 W
Frequency range
190 - 17000 Hz
Finish
White, RAL 9016
Protection
IP65
ex VAT
£256.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The EZ 30.10 MW combines two full-range speakers in a white RAL 9016 cabinet with a metal grille and swivel bracket. It connects to a 100 V system at 12 W. A rear cover gives access to the spring terminals, allowing the connection to be protected within the completed housing.

Typical applications

  • Speech reproduction in public-address installations
  • Outdoor or industrial announcements
Full specifications
EZ 30.10 MW · 100 V
Rated power12 W
Frequency response (−10 dB)190 - 17000 Hz
Mean sound pressure level90 dB (1W/1m)
Resonance frequency fs174 Hz
Net weight2.04 kg
Transformer matching12 W
Sound pressure level93 dB (1 W/1 m)@2430 Hz
Max. sound pressure level101 dB (12 W/1m)
ColourWhite, RAL 9016
ConnectionsSpring terminals
Protective grilleMetal
Protective systemIP65
Dimensions and drawings

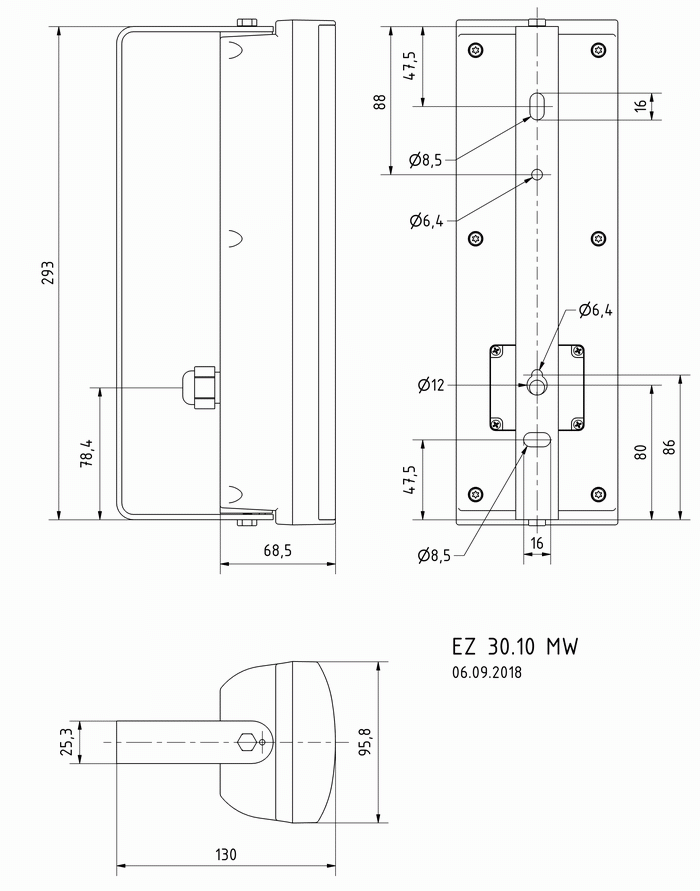

EZ 30.10 MW · 100 V · part 50420 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the dimension drawing and the actual fitting before drilling or setting a tight recess. Allow clearance for the swivel bracket, rear terminal cover and cable; secure the speaker without twisting the cabinet.

With the amplifier off, connect the 100 V line to the spring terminals behind the rear cover. This model has a stated 12 W transformer connection; do not assume additional power taps.

Refit the terminal cover and seal the cable entry for the environment. Preserve the IP65 housing and support the cable so it cannot pull on the terminals.
