Visaton DL 18/1 100 V, 6.5 Inch, Ceiling Speaker (RAL 9010)

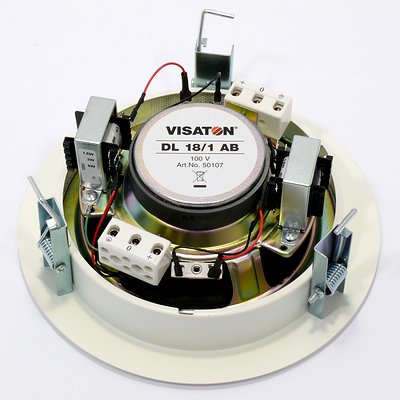

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The archived Visaton page identifies this as the DL 18/1 AB for PA installations with A/B wiring. It uses a corrosion-free RAL 9010 grille and a round 200 mm ceiling cut-out. The source lists 2 × 6/3/1.5 W transformer taps, 90–18000 Hz response and 1.55 kg net weight.
Typical applications
- Commercial 100 V audio systems
- Speech and programme reproduction
- Fixed installations using the published transformer taps
Full specifications

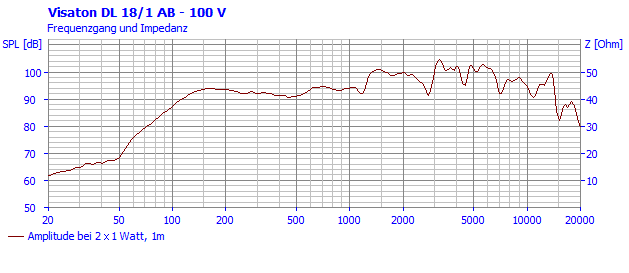

| Frequency response | 90–18000 Hz |
|---|---|
| Mean sound pressure level | 96 dB (2 x 1 W/1 m) |

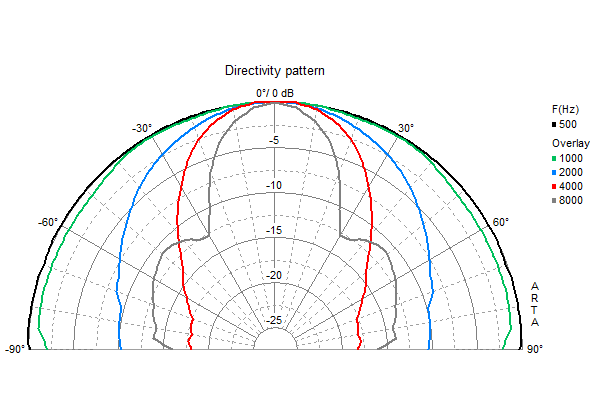

| Opening angle (-6 dB) | 57°/4000 Hz |
| Resonance frequency fs | 130 Hz |
| Voice coil diameter | 20 mm |
| Cutout diameter | 200 mm |
| Net weight | 1.55 kg |
| Transformer matching | 2 x 6 W;2 x 3 W;2 x 1.5 W |
| Max. sound pressure level | 104 dB (2 x 6 W/1 m) |
| Colour | RAL 9010 |
| Protective system | IP X3 |
| Temperature range | −40 ... 110 °C |
Dimensions and drawings

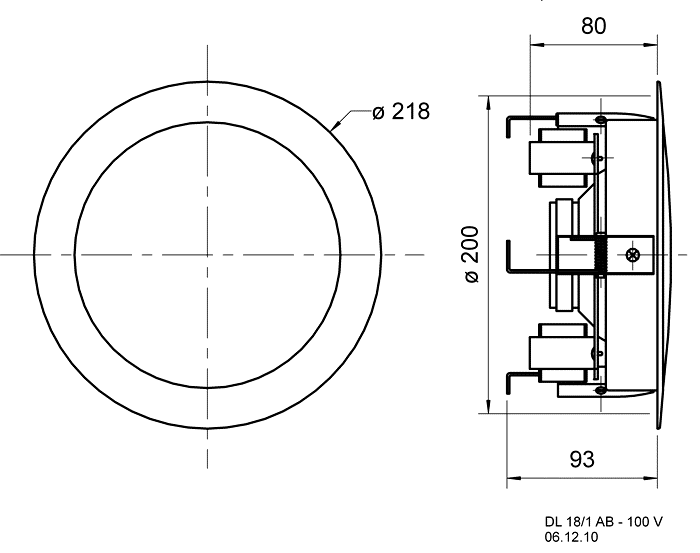

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
