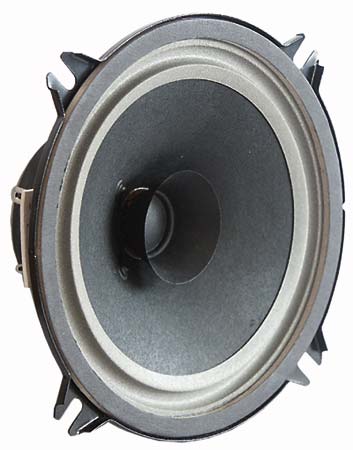

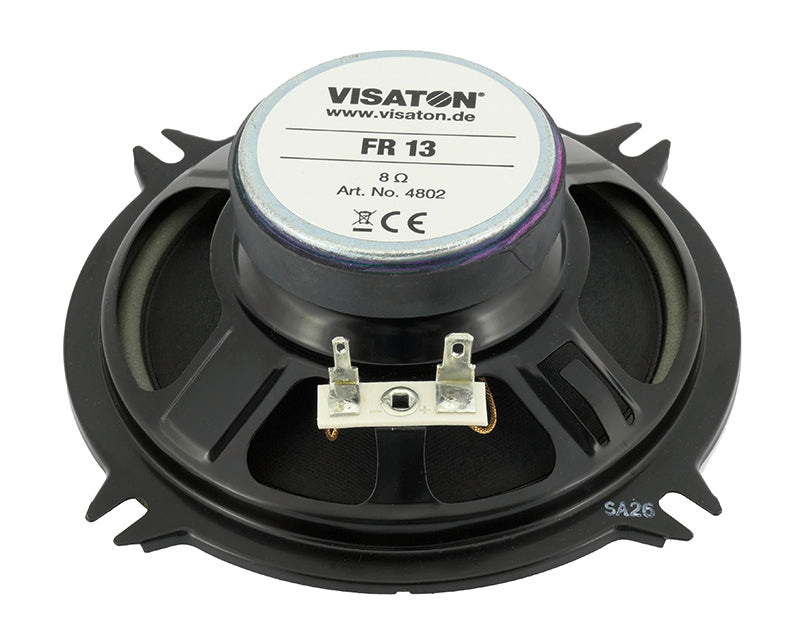

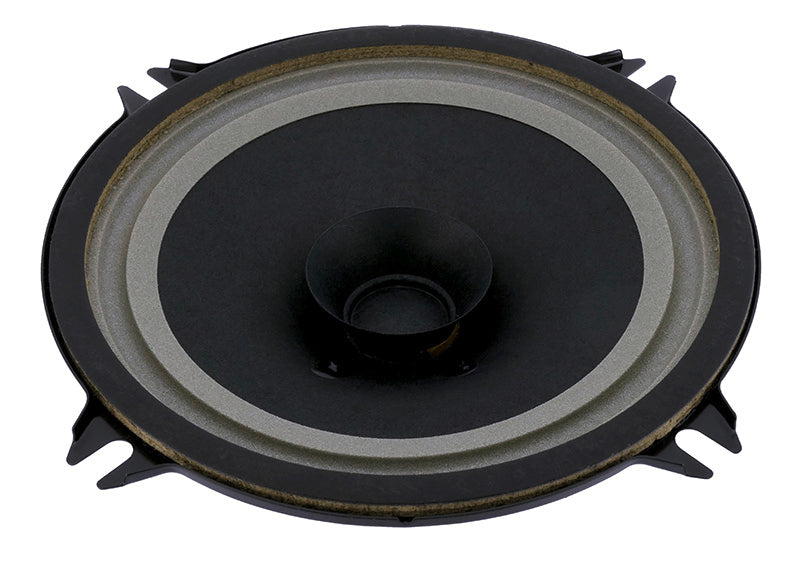

{ "id":15940216160638, "title":"Visaton FR 13 (8 Ohm) – 13 cm \/ 5\" Full-Range Speaker – Art. No. 4802","handle":"visaton-fr-13-8-ohm-13-cm-5-full-range-speaker-art-no-4802", "description":"\u003cp\u003eThe \u003cstrong\u003eVisaton FR 13\u003c\/strong\u003e is a 13 cm (5\") full-range loudspeaker with an inverted surround, delivering a uniform frequency response and powerful low-frequency output from a single driver. Its standard mounting dimensions make it a straightforward fit in vehicles and equipment designed for 13 cm speakers, and the wide bandwidth means no separate tweeter is required.\u003c\/p\u003e\n\n\u003cp\u003eThis is the \u003cstrong\u003e8 Ω version (Art. No. 4802)\u003c\/strong\u003e. A 4 Ω version is also available (Art. No. 4800).\u003c\/p\u003e\n\n\u003ch3\u003eTypical applications\u003c\/h3\u003e\n\u003cul\u003e\n \u003cli\u003eBuilt-in speaker for cars, buses and rail vehicles\u003c\/li\u003e\n \u003cli\u003eElectronic musical instruments\u003c\/li\u003e\n \u003cli\u003eMonitoring \/ control speaker in electronic equipment\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch3\u003eKey features\u003c\/h3\u003e\n\u003cul\u003e\n \u003cli\u003e13 cm (5\") full-range driver — single-driver wide bandwidth, no crossover needed\u003c\/li\u003e\n \u003cli\u003eInverted surround for uniform response and strong bass output\u003c\/li\u003e\n \u003cli\u003e30 W rated power, 88 dB sensitivity (1 W \/ 1 m)\u003c\/li\u003e\n \u003cli\u003e65–20,000 Hz frequency range (–10 dB)\u003c\/li\u003e\n \u003cli\u003eSimple drop-in installation in standard 13 cm mounts\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003cp\u003eCompatible protective grilles are available separately (Art. No. 4643 and 4667).\u003c\/p\u003e\n\n\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\n\u003ctable\u003e\n \u003ctr\u003e\n\u003ctd\u003eRated power\u003c\/td\u003e\n\u003ctd\u003e30 W\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eImpedance\u003c\/td\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eFrequency response (–10 dB)\u003c\/td\u003e\n\u003ctd\u003e65–20,000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eMean sound pressure level\u003c\/td\u003e\n\u003ctd\u003e88 dB (1 W \/ 1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eExcursion limit (xmech)\u003c\/td\u003e\n\u003ctd\u003e± 2.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eResonant frequency (fs)\u003c\/td\u003e\n\u003ctd\u003e100 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eHeight of front pole-plate\u003c\/td\u003e\n\u003ctd\u003e3 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eVoice coil diameter\u003c\/td\u003e\n\u003ctd\u003e20 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eHeight of winding\u003c\/td\u003e\n\u003ctd\u003e6 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eCut-out diameter\u003c\/td\u003e\n\u003ctd\u003e116 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eTerminals\u003c\/td\u003e\n\u003ctd\u003e4.8 x 0.8 mm (+) \/ 2.8 x 0.8 mm (–)\u003c\/td\u003e\n\u003c\/tr\u003e\n \u003ctr\u003e\n\u003ctd\u003eNet weight\u003c\/td\u003e\n\u003ctd\u003e0.29 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/table\u003e", "published_at":"2026-06-02T10:57:55", "created_at":"2026-06-02T10:57:54", "vendor":"Visaton", "type":"Full-range driver", "tags":["5","5ins","8 Ohm","Driver","FR","Full-Range","general purpose speakers","Impedance_8 Ohm","Loudspeaker","New Products","Size_5 inch","speaker","Type_Full Range","Type_Fullrange speakers","Visaton","Visaton - General Purpose Speaker","Visaton - General Purpose Speakers: Full Range"], "price":1377, "price_min":1377, "price_max":1377, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57498220593534], "variants":[{ "id":57498220593534, "product_id":15940216160638, "product_handle":"visaton-fr-13-8-ohm-13-cm-5-full-range-speaker-art-no-4802", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"4802", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton FR 13 (8 Ohm) – 13 cm \/ 5\" Full-Range Speaker – Art. No. 4802 - Default Title", "options":["Default Title"], "price":1377, "weight":290, "compare_at_price":null, "inventory_quantity":-2, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":-2, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/fr13.jpg?v=1780391716"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/fr13.jpg?v=1780391716", "options":["Title"], "url":"\/products\/visaton-fr-13-8-ohm-13-cm-5-full-range-speaker-art-no-4802"}
