Visaton FR 8 WP, 4Ohm, Black, Marine, 3.3ins, Full Range Driver - Price Per Speaker

Product Description

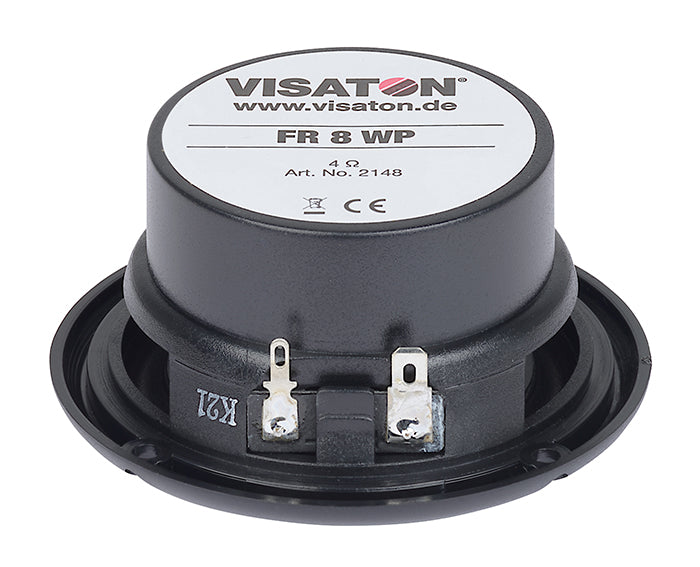

Saltwater resistant 8 cm (3.3") full-range speaker with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Clear-cut high-range output.

ip65

Typical applications

  • Outdoor PA systems
  • Loudspeaker for solariums and damp locations
  • Boats, ships and open vehicles

Attributes

  • Seawater proof
  • Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
  • Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
  • Plastic: ASA (UL 94:HB; UV-/weather-proof)
  • Ball-resistant

Technical Data

Rated power 15 W
Maximum power 25 W
Nominal impedance Z 4 Ohm
Frequency response 100–20000 Hz

Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 114°/4000 Hz
Excursion limit +/−3 mm
Resonance frequency fs 158 Hz
Magnetic induction 1 T
Magnetic flux 190 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 4 mm

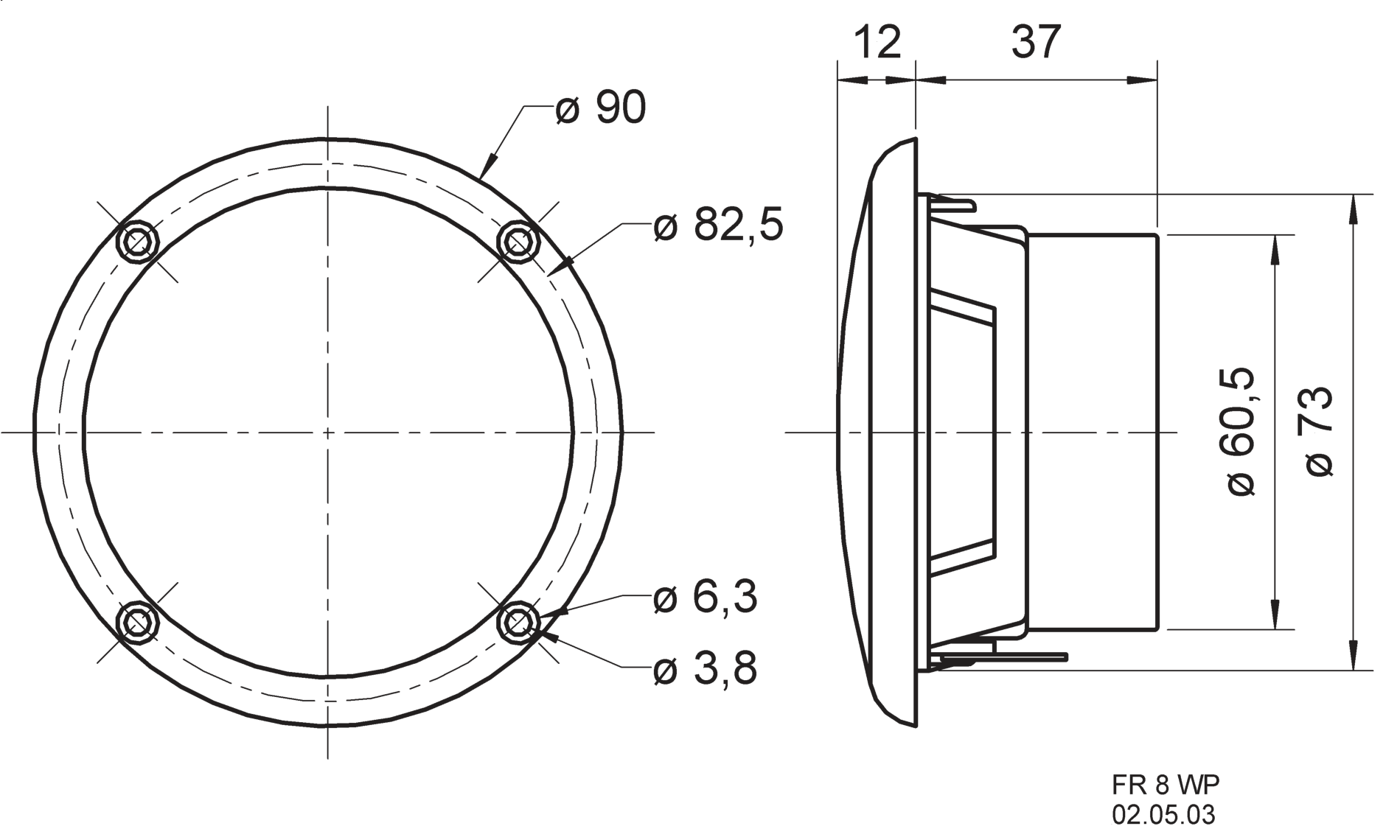

Cutout diameter 74 mm
Net weight 0,23 kg
D.C. resistance Rdc 4,1 Ohm
Mechanical Q factor Qms 2,62
Electrical Q factor Qes 1,33
Total Q factor Qts 0,88
Equivalent volume Vas 0,4 l
Effective piston area Sd 30 cm²
Dynamically moved mass Mms 2,9 g
Force factor Bxl 2,8 T m
Inductance of the voice coil L 0,3 mH
Connections 5,2 x 0,5 mm (+)
2,8 x 0,5 mm (−)
Protective system IP 65 *)
Temperature range −40 ... 80 °C
Colour schwarz / black

ex VAT
£20.52 inc VAT
