Visaton FR 8 WP 8 Ohm (White), 3.3 Inch, Waterproof Speaker

FR 8 WP · 8 Ω · white · part 2129 — Product photo

Product photo · Enlarge image

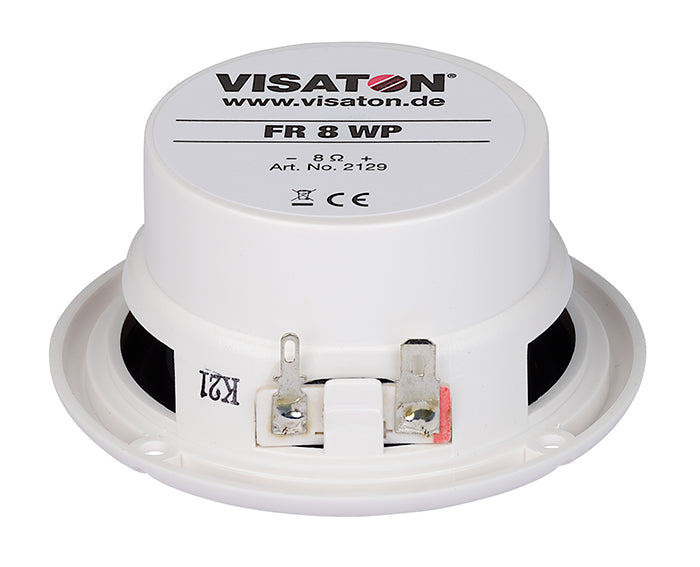

FR 8 WP · 8 Ω · white · part 2129 — Product photoProduct photo FR 8 WP · 8 Ω · white · part 2129 — Rear view and connectionsRear view and connections FR 8 WP · 8 Ω · white · part 2129 — Response and impedanceResponse and impedance FR 8 WP · 8 Ω · white · part 2129 — Directivity patternDirectivity pattern FR 8 WP · 8 Ω · white · part 2129 — Dimension drawing (from the manufacturer datasheet)Dimension drawing (from the manufacturer datasheet)

Product photographs and manufacturer drawings. Images are not to scale.

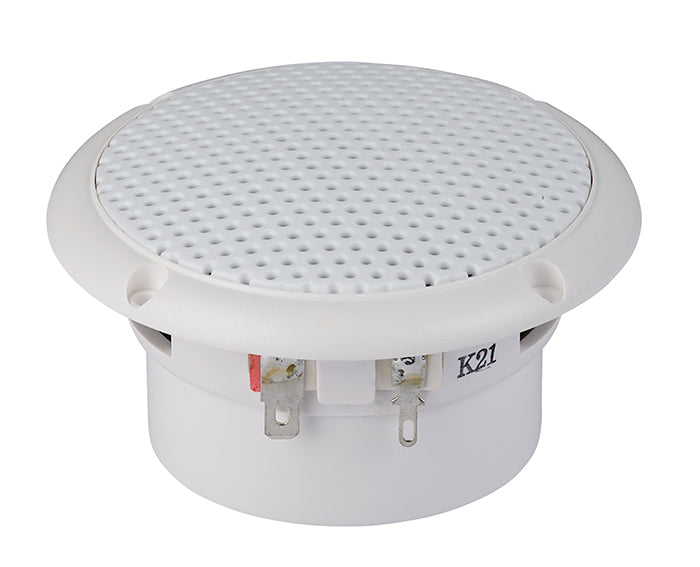

FR 8 WP · 8 Ω · white · part 2129 — Product photo

Product photo

Open original image
Part number: 2129

A white, saltwater-resistant 8 cm full-range speaker for outdoor PA, solariums and damp rooms, boats and ships.

Nominal size
8 cm / 3.3 inch
Impedance
8 Ω
Rated power
15 W
Cut-out
74 mm
Sensitivity
84 dB (1 W/1 m)
Resonance
158 Hz
ex VAT
£21.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 8 WP is a saltwater-resistant full-range speaker with a moulded plastic cone, plastic basket and grille, corrosion-resistant and waterproof thanks to the encased magnet and silicone-coated leads. Its IP65 protection applies to the front when it is built into a sealed enclosure. This white 8 Ω version handles 15 W, gives 84 dB (1 W/1 m) and is rated for −40 to 80 °C.

Typical applications

  • Outdoor PA systems
  • Solariums and damp rooms
  • Boats, ships and open vehicles
Full specifications
FR 8 WP · 8 Ω · white
Rated power15 W
Maximum power25 W
Nominal impedance8 Ω
Frequency response (−10 dB)100–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)114°/4000 Hz
Excursion limit±3 mm
Resonance frequency fs158 Hz
Magnetic induction1 T
Magnetic flux190 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4 mm
Cut-out74 mm
Net weight0.23 kg
ColourWhite
Terminals5.2 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Protective systemIP65 — front side in a sealed enclosure (the 2023 datasheet also shows IP67 under the same condition)
Temperature range−40 to 80 °C
Environmental attributesSeawater-proof
Low-temperature testEN 60068-2-1: −40 °C for 96 hours
Low-temperature requirementsGermanischer Lloyd (requirements for electrical equipment)
PlasticASA (UL 94 HB; UV- and weather-resistant)
Ball resistanceBall-resistant

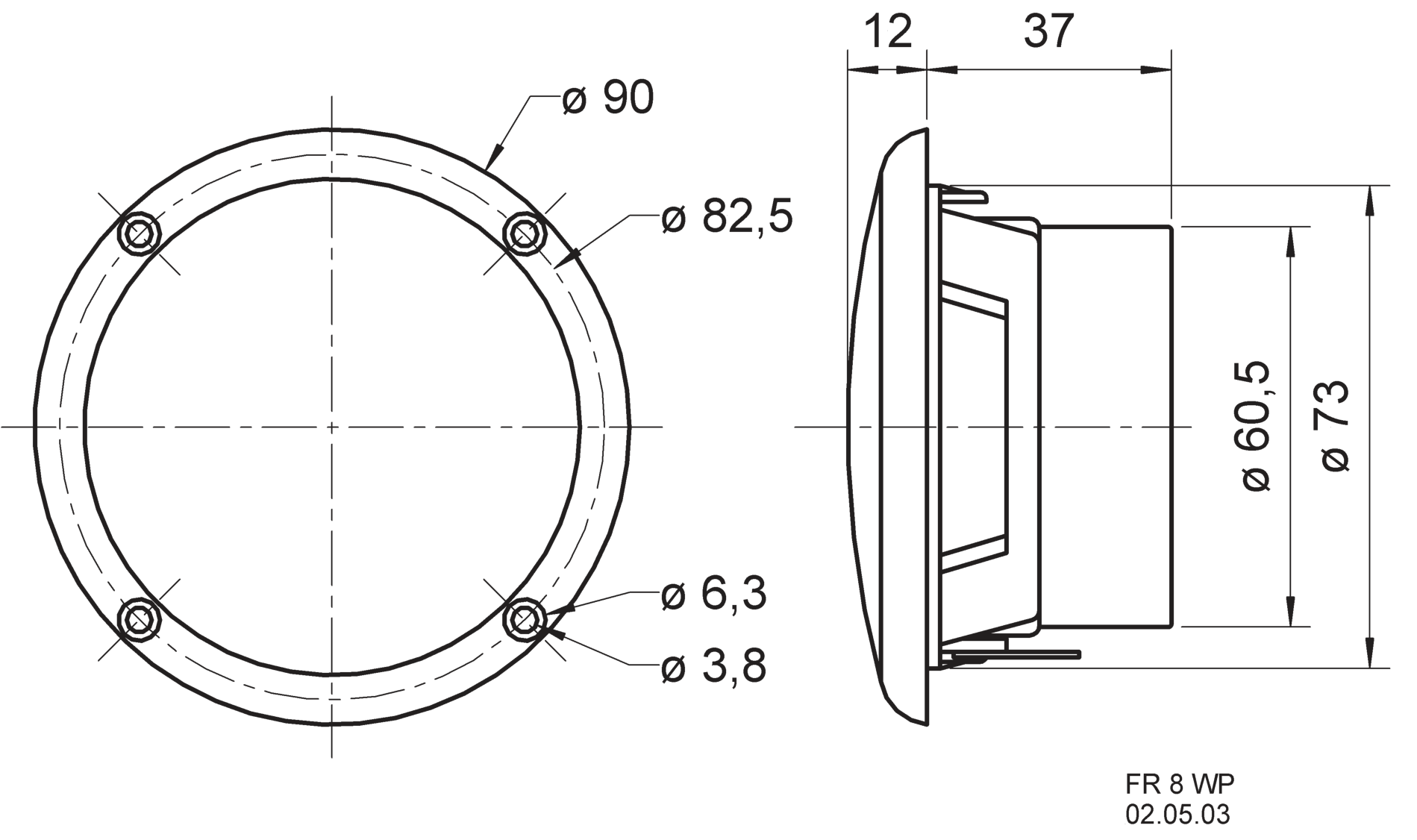

Dimensions and drawings
FR 8 WP · 8 Ω · white · part 2129 — Dimension drawing (from the manufacturer datasheet)

Dimension drawing (from the manufacturer datasheet) · Open original image

Installation and cabinet guidance

Allow for a 74 mm panel opening. The round flange is 90 mm in diameter with four 3.8 mm fixing holes, countersunk to 6.3 mm, on an 82.5 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 37 mm for the 73 mm basket and its 60.5 mm magnet cup, plus room for the terminals and the wiring. The domed grille stands about 12 mm proud of the panel, so allow for that behind any fascia or trim and keep the grille clear.

The IP65 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Seal the joint between the flange and the panel, for which a matching gasket, part 2127, is available, and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry and tighten the fixings evenly so the flange is not distorted. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.

Connect to the 5.2 x 0.5 mm (+)/2.8 x 0.5 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 8 Ω load and keep the drive within the 15 W rating (25 W maximum). For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.

This is the white version; it is also available as 4 Ω white (part 2128) and in black (parts 2148 and 2149). Check the impedance and the colour against the amplifier and the installation before ordering.
