Visaton FRS 7 XWP 8 Ohm, 2.5 Inch, Waterproof Full Range Speaker

FRS 7 XWP · 8 Ω · part 2016 — Product photo

Product photo · Enlarge image

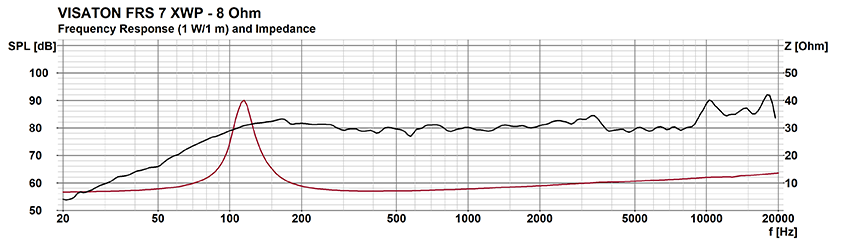

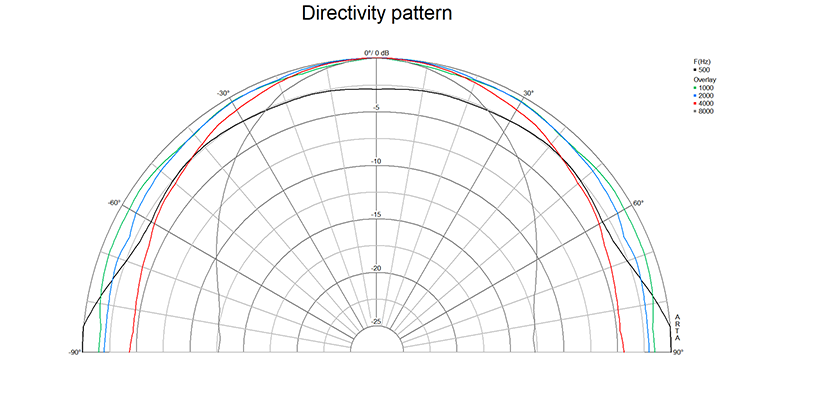

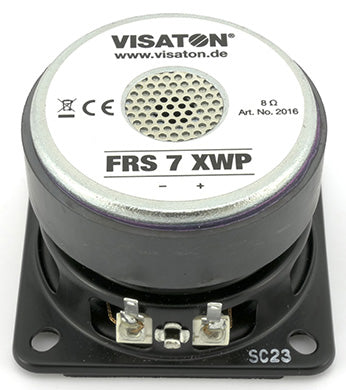

FRS 7 XWP · 8 Ω · part 2016 — Product photo Product photo FRS 7 XWP · 8 Ω · part 2016 — Rear view and connections Rear view and connections FRS 7 XWP · 8 Ω · part 2016 — Dimension drawing Dimension drawing FRS 7 XWP · 8 Ω · part 2016 — Response and impedance Response and impedance FRS 7 XWP · 8 Ω · part 2016 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRS 7 XWP · 8 Ω · part 2016 — Product photo

Product photo

Open original image
Part number: 2016

A 6.5 cm full-range speaker with balanced response and very good highs for built-in music reproduction and column speakers.

Nominal size
6.5 cm / 2.5 inch
Impedance
8 Ω
Rated power
10 W
Protection
IP64 — front side in a sealed enclosure
Sensitivity
81 dB (1 W/1 m)
Resonance
100 Hz
ex VAT
£18.60 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FRS 7 XWP is a 6.5 cm full-range speaker with a balanced response and very good highs, optimised for small closed and bass-reflex enclosures. Power and excursion reserves keep the quality up even in the bass. Its IP64 protection applies to the front when it is built into a sealed enclosure; this 8 Ω version handles 10 W and gives 81 dB (1 W/1 m).

Typical applications

  • Built-in speaker for music reproduction
  • Column speakers
Full specifications
FRS 7 XWP · 8 Ω
Rated power10 W
Nominal impedance8 Ω
Frequency response (−10 dB)fu–20000 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level81 dB (1 W/1 m)
Opening angle (-6 dB)360°/4000 Hz
Excursion limit± 5.0 mm
Resonance frequency fs100 Hz
Magnetic induction1.0 T
Height of front pole-plate3 mm
Voice coil diameter20.38 mm
Height of winding8.8 mm
Net weight0.360 kg
Mechanical Q factor Qms3.55
Electrical Q factor Qes0.74
Total Q factor Qts0.62
Equivalent volume Vas0.85 l
Effective piston area Sd23.6 cm²
Dynamically moved mass Mms2.5 g
Force factor Bxl3.60 Tm
Inductance of the voice coil L0.53 mH
Compliance Cm1.08 mm/N
Terminals2.8 x 0.5 mm/2.8 x 0.5 mm
Protective systemIP64 — front side in a sealed enclosure
Temperature range−40 to 85 °C
Dimensions and drawings
FRS 7 XWP · 8 Ω · part 2016 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

No cut-out is published for this driver: the frame is 66.5 mm square (75.1 mm across the corners) with four 4.5 x 6 mm fixing slots on 53 x 53 mm centres and a 60.5 mm cone opening. Size the opening from the unit itself, and mark the slots rather than assuming the spacing. The unit is 41.5 mm deep overall including the 2.5 mm flange, with a 62 mm magnet 22 mm long, so allow room behind for the terminals and the wiring.

The IP64 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Mount on a flat panel with a continuous seal and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Tighten the fixings evenly so the flange is not distorted. A matching grille, part 2312, is available. Operating temperature range −40 to 85 °C.

Connect to the 2.8 x 0.5 mm/2.8 x 0.5 mm blade terminals with matching push-on connectors; both blades are the same size, so follow the + and - marks on the rear label. Use an amplifier suitable for the 8 Ω load and keep the drive within the 10 W rating.
