Visaton Protective Grille FRS 8
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
This grille combines black painted metal with black plastic ring. Match the grille and speaker drawings before ordering; frame diameter, fixing holes, mounting side and cone clearance all affect the fit.
Typical applications
- Protecting the exposed front of a compatible loudspeaker
- Finishing a cabinet, panel or installation cut-out
Full specifications
| Grille | Black painted metal |
|---|---|
| Surround | Black plastic ring |
| Compatibility | FRS 8, rear-mounted |
| Mounting | Rear mounting |
| Manufacturer reference | 1138 |
Dimensions and drawings

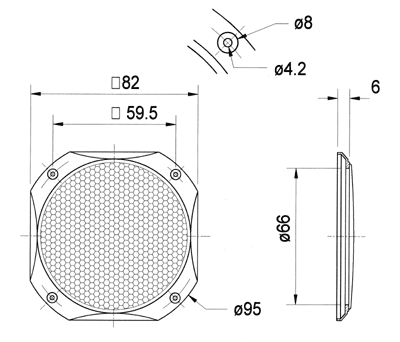

Mounting drawing · Open original image
Installation and cabinet guidance
Compatibility: FRS 8, rear-mounted. Check the full mounting geometry before fitting; a nominal speaker size alone is insufficient.
Fit the grille without loading or touching the cone or surround. Confirm clearance at the speaker’s maximum intended movement.
