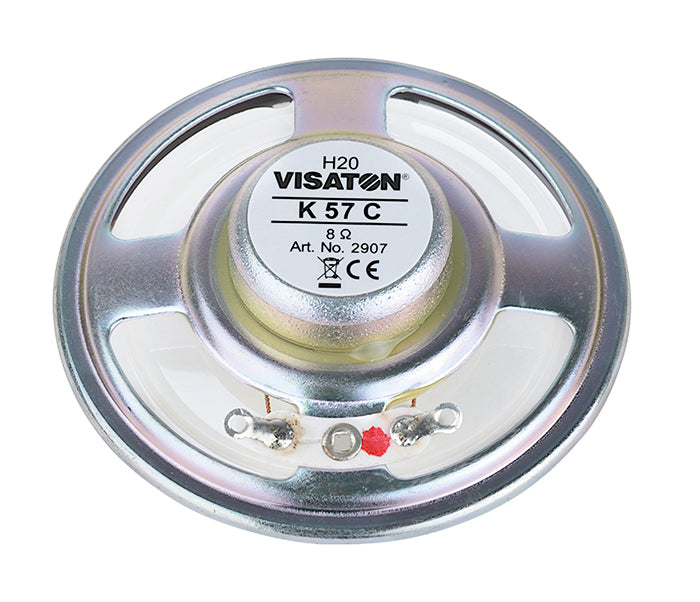

Visaton K 57 C, 8 Ohm, 2.2 Inch, Waterproof Miniature Speaker

Product Description

5.7 cm (2.2") miniature speaker with waterproofed, transparent Mylar membrane and Neodymmagnet. Light weight. Low installation hight. Can be used outside and at critical enviroments. Suitable as signal speaker for electronic equipment. Good speech, intelligibility.

Rated power 2 W
Maximum power 3 W
Nominal impedance Z 8 Ohm

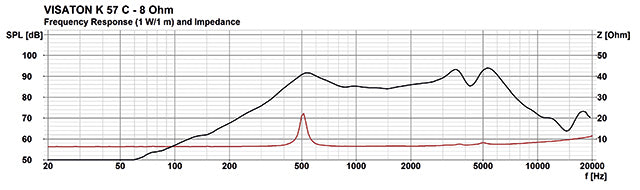

Frequency response 350–6800 Hz
Mean sound pressure level 87 dB (1 W/1 m)
Resonance frequency fs 550 Hz
Net weight 0,031 kg
Connections 2,8 x 0,3 mm
(Lötösen/solder lugs)
Protective system IP 65 *)
Temperature range −25 ... 70 °C

ex VAT
£3.34 inc VAT
