Visaton K 70 WP 8 Ohm, 2.8 Inch, Waterproof Speaker

K 70 WP · 8 Ω · part 2870 — Product photo

Product photo · Enlarge image

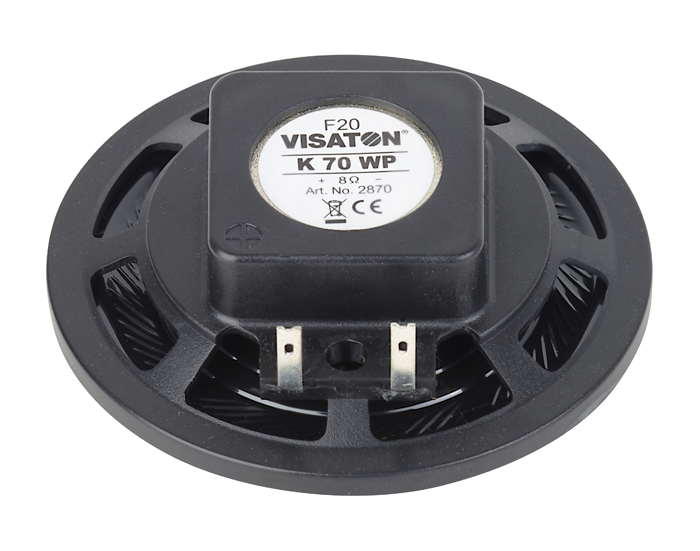

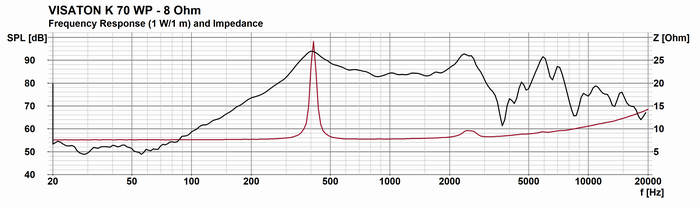

K 70 WP · 8 Ω · part 2870 — Product photo Product photo K 70 WP · 8 Ω · part 2870 — Rear view and connections Rear view and connections K 70 WP · 8 Ω · part 2870 — Dimension drawing Dimension drawing K 70 WP · 8 Ω · part 2870 — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

K 70 WP · 8 Ω · part 2870 — Product photo

Product photo

Open original image
Part number: 2870

A 7 cm full-range speaker with a plastic basket and diaphragm for monitoring outdoors and in humid conditions.

Nominal size
7 cm / 2.8 inch
Impedance
8 Ω
Rated power
2 W
Cut-out
62 mm
Sensitivity
84 dB (1 W/1 m)
Resonance
395 Hz
ex VAT
£11.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The K 70 WP is a 7 cm full-range speaker with a plastic basket and plastic diaphragm, giving a broad response and good voice reproduction. It is made for outdoor applications and unfavourable conditions such as high humidity, and its IP67 protection applies to the front when it is built into a sealed enclosure. This 8 Ω version handles 2 W and is rated for −40 to 80 °C.

Typical applications

  • Monitoring speaker for electronic devices
  • Model construction
  • Communication technology
  • Monitoring speaker for outdoor systems
Full specifications
K 70 WP · 8 Ω
Rated power2 W
Maximum power3 W
Nominal impedance8 Ω
Frequency response (−10 dB)200–15000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Resonance frequency fs395 Hz
Voice coil diameter10.25 mm
Height of winding3.4 mm
Cut-out62 mm
Mounting depth15.6 mm
Net weight51 g
Protective systemIP67 — front side in a sealed enclosure
Temperature range−40 to 80 °C
Dimensions and drawings

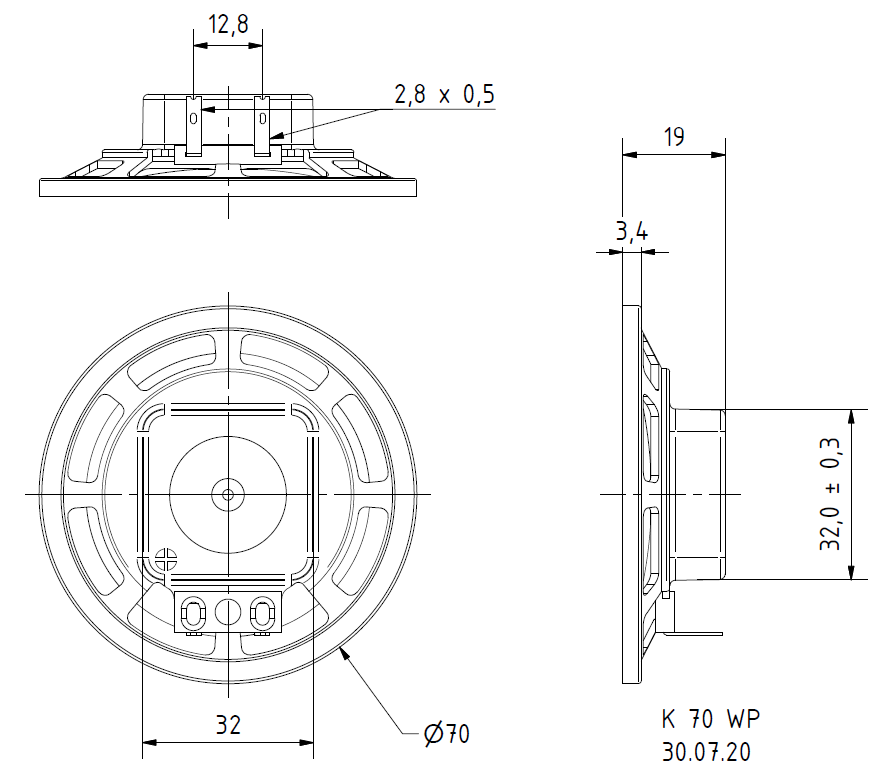

K 70 WP · 8 Ω · part 2870 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 62 mm panel opening. The round plastic frame is 70 mm in diameter; the mounting depth is 15.6 mm and the unit is 19 mm deep overall including the 3.4 mm flange, with a 32 mm square magnet housing. The frame has no fixing holes, so it is normally bonded or clamped in place; check the method against your enclosure design and keep the clamping even all round.

The IP67 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Mount on a flat panel with a continuous seal around the frame and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.

Connect to the two 2.8 x 0.5 mm blade terminals, 12.8 mm apart, with matching push-on connectors and observe polarity. Use an amplifier suitable for the 8 Ω load and keep the drive within the 2 W rating (3 W maximum).
