Visaton SC 3.7 ND WP 8 Ohm, 1.2 x 2.8 Inch, Waterproof Full Range Driver

SC 3.7 ND WP · 8 Ω · part 8030 — Product photo

Product photo · Enlarge image

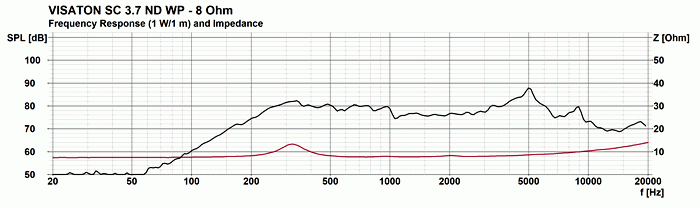

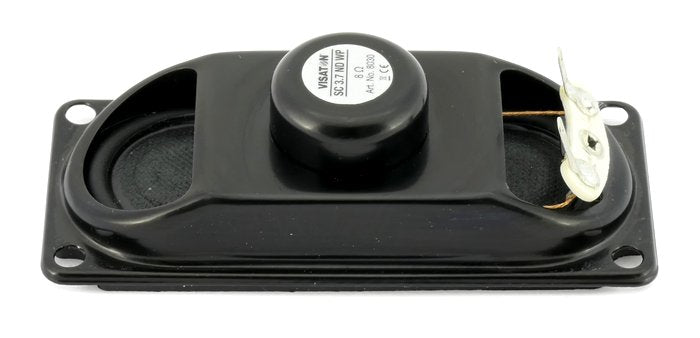

SC 3.7 ND WP · 8 Ω · part 8030 — Product photo Product photo SC 3.7 ND WP · 8 Ω · part 8030 — Rear view and connections Rear view and connections SC 3.7 ND WP · 8 Ω · part 8030 — Dimension drawing Dimension drawing SC 3.7 ND WP · 8 Ω · part 8030 — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

SC 3.7 ND WP · 8 Ω · part 8030 — Product photo

Product photo

Open original image
Part number: 8030

A 3 x 7 cm oval full-range driver with a neodymium magnet for built-in use in TVs and PCs.

Nominal size
3 × 7 cm / 1.2 × 2.8 inch
Impedance
8 Ω
Rated power
3 W
Protection
IPX4 — front side in a sealed enclosure
Sensitivity
78 dB (1 W/1 m)
Resonance
300 Hz
ex VAT
£8.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 3.7 ND WP is a 3 x 7 cm oval full-range driver with a balanced response and clear high range, made very small by a neodymium magnet system for built-in use in TVs and PCs. It has a moisture-resistant membrane and metal construction, and is rated IPX4 at the front when built into a sealed enclosure. This 8 Ω version handles 3 W and weighs 24.5 g.

Typical applications

  • Video monitoring screens and TVs
  • Monitoring speaker for electronic devices
  • ATMs
Full specifications
SC 3.7 ND WP · 8 Ω
Rated power3 W
Nominal impedance8 Ω
Frequency response (−10 dB)160–12000 Hz
Mean sound pressure level78 dB (1 W/1 m)
Excursion limit±2.4 mm
Resonance frequency fs300 Hz
Height of front pole-plate2 mm
Voice coil diameter13.5 mm
Height of winding3.6 mm
Net weight24.5 g
TerminalsSolder lugs (2.4 x 0.3 mm)
Protective systemIPX4 — front side in a sealed enclosure
Temperature range−20 to 70 °C
Environmental attributesMoisture-resistant membrane; metal construction

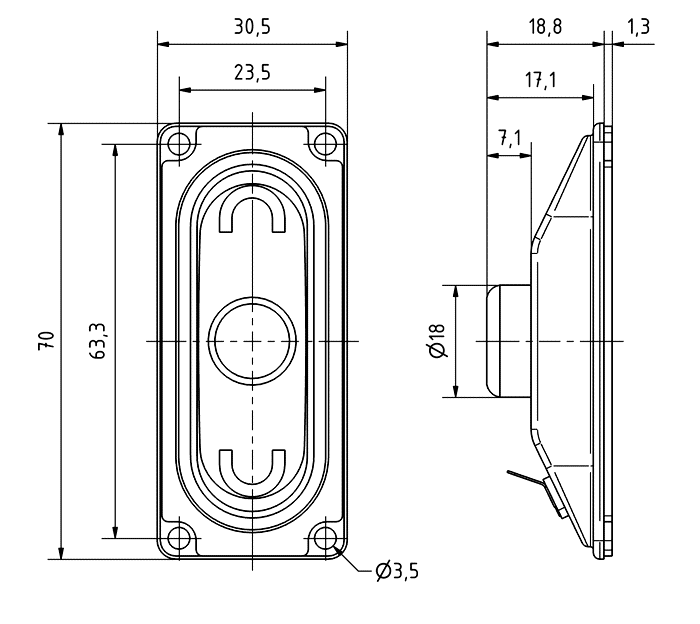

Dimensions and drawings
SC 3.7 ND WP · 8 Ω · part 8030 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

No cut-out is published for this driver: the frame is 30.5 x 70 mm with four 3.5 mm fixing holes on 23.5 x 63.3 mm centres. Size the opening from the unit itself, and mark the holes rather than assuming the spacing. The unit is 18.8 mm deep overall, with an 18 mm neodymium magnet, so allow room behind for the solder connections.

The IPX4 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Mount on a flat panel with a continuous seal around the frame and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Tighten the fixings evenly so the frame is not distorted. Operating temperature range −20 to 70 °C.

Solder to the solder lugs (2.4 x 0.3 mm), observe polarity and keep the leads clear of the moving parts. Use a suitable iron and keep the soldering time short so that heat is not conducted into the driver. Use an amplifier suitable for the 8 Ω load and keep the drive within the 3 W rating.
