Visaton SL 87 XA 4 Ohm, 3.3 Inch, Waterproof Speaker

SL 87 XA · 4 Ω · part 2092 — Product photo

Product photo · Enlarge image

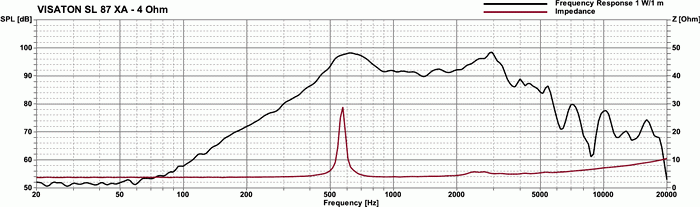

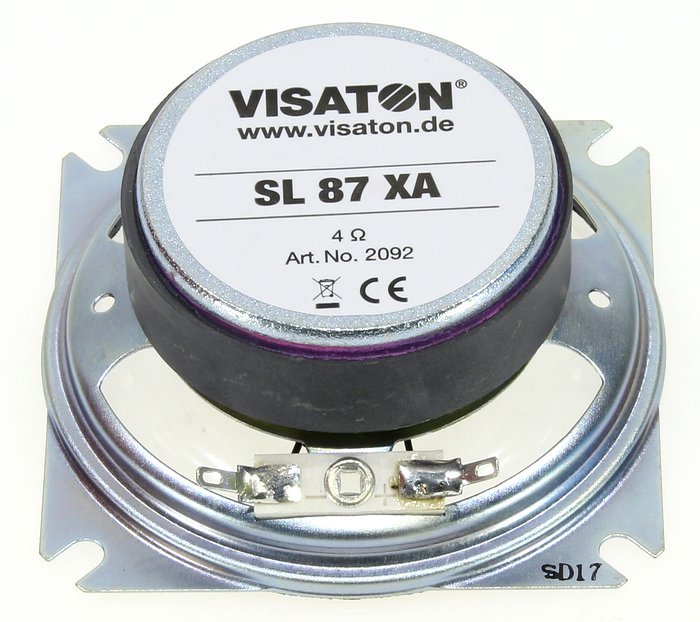

SL 87 XA · 4 Ω · part 2092 — Product photoProduct photo SL 87 XA · 4 Ω · part 2092 — Rear view and connectionsRear view and connections SL 87 XA · 4 Ω · part 2092 — Dimension drawingDimension drawing SL 87 XA · 4 Ω · part 2092 — Response and impedanceResponse and impedance SL 87 XA · 4 Ω · part 2092 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

SL 87 XA · 4 Ω · part 2092 — Product photo

Product photo

Open original image
Part number: 2092

A waterproof 8 cm full-range speaker with a very high sound pressure level for voice and signal output.

Nominal size
8 cm / 3.3 inch
Impedance
4 Ω
Rated power
20 W
Cut-out
80 mm
Sensitivity
94 dB (1 W/1 m)
Resonance
550 Hz
ex VAT
£13.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SL 87 XA is an 8 cm full-range speaker with a transparent plastic cone and rubber sealing ring, optimised for voice and signal output. It is rated IP65 and IPX8 at the front when built into a sealed enclosure (IPX8 at 1 m water depth for 16 h). This UV- and weather-resistant 4 Ω version handles 20 W and gives a very high 94 dB (1 W/1 m).

Typical applications

  • Monitoring speaker for electronic devices
  • Outdoor sound reinforcement systems
  • Alarm systems
Full specifications
SL 87 XA · 4 Ω
Rated power20 W
Nominal impedance4 Ω
Frequency response (−10 dB)350–5800 Hz
Mean sound pressure level94 dB (1 W/1 m)
Opening angle (-6 dB)142°/4000 Hz
Resonance frequency fs550 Hz
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4 mm
Cut-out80 mm
Net weight0.38 kg
Terminals2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Protective systemIP65 / IPX8 — front side in a sealed enclosure; IPX8 tested at 1 m water depth for 16 h
Temperature range−40 to 70 °C
Environmental attributesUV-resistant; weather-resistant
Dimensions and drawings

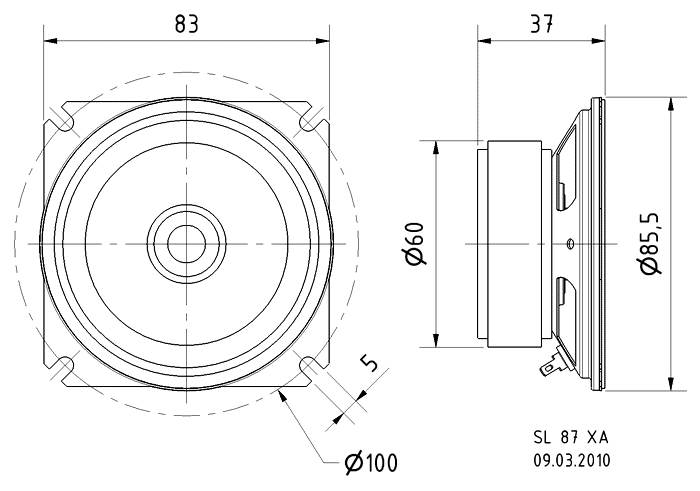

SL 87 XA · 4 Ω · part 2092 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for an 80 mm panel opening. The frame is 83 mm square with an open 5 mm slot at each corner on a 100 mm circle for the fixings; mark them from the unit itself rather than assuming the spacing. The unit is 37 mm deep overall, with an 85.5 mm basket and a 60 mm magnet, so allow room behind the panel for the terminals and the wiring.

The IP65 and IPX8 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. The IPX8 rating is the manufacturer's test at 1 m water depth for 16 h, under the same front-side condition. Compress the rubber sealing ring evenly against a flat panel and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Tighten the fixings evenly so the frame is not distorted, and run the cable so that water cannot track along it into the enclosure. A matching protective grille, part 4639, is available. Operating temperature range −40 to 70 °C.

Connect to the 2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-) blade terminals with matching push-on connectors and observe polarity; both blades are the same size, so identify the positive terminal before you fit the connectors. Use an amplifier suitable for the 4 Ω load and keep the drive within the 20 W rating.

This is the 4 Ω version; the 8 Ω version is part 2096. Check the impedance against the amplifier and the installation before ordering.
