Visaton TR 6.8, 100 V Transformer
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The TR 6.8 offers primary taps at 6 W, 3 W and 1.5 W, with 4 Ω and 8 Ω secondary connections. Select the tap to suit the required level and include it in the amplifier’s total connected load.
Typical applications
- Adapting a suitable low-impedance speaker to a 100 V PA line
Full specifications
| System | 100 V |
|---|---|
| Primary taps | 6 W / 1.7 kΩ; 3 W / 3.3 kΩ; 1.5 W / 6.7 kΩ |
| Secondary | 4 Ω / 8 Ω |
| Frequency range | 30–22,000 Hz (−3 dB) |
| Lead length | 0.15 m |
| Net weight | 0.2 kg |

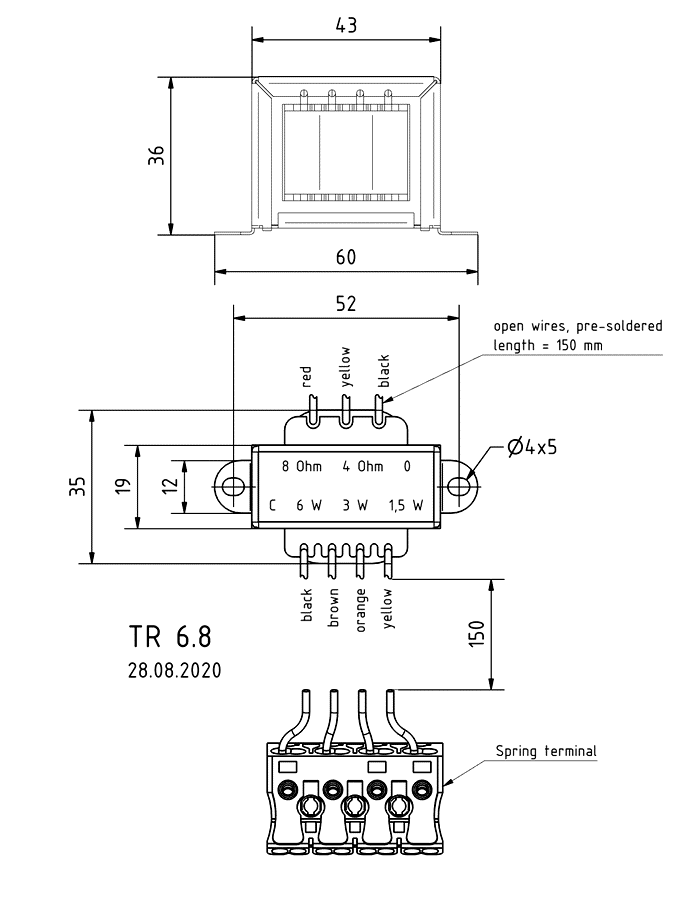

Dimensions and drawings
Mounting drawing · Open original image
Installation and cabinet guidance
Disconnect and isolate the line amplifier before wiring. Follow the manufacturer connection drawing for primary taps and the matching 4 Ω or 8 Ω secondary.
Add the selected wattage of every transformer on the line and keep within the amplifier rating. Check loudspeaker power handling and provide a secure, insulated mounting.
