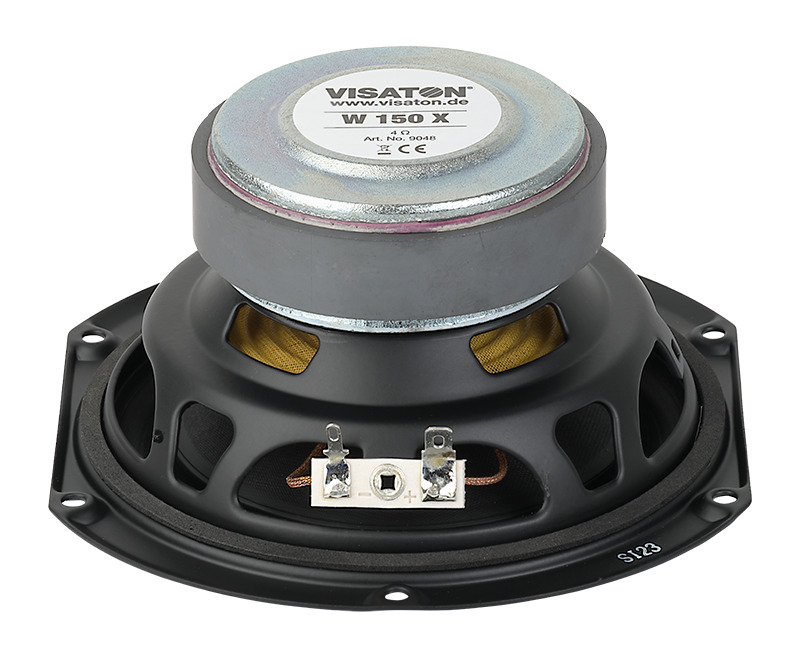

Visaton W 150 X 4 Ohm, 5.9 Inch, HiFi Woofer

Part number: 9048

A 15 cm (5.9 inch) 4 Ω woofer with a robust polypropylene membrane, also suited to compact subwoofer applications.

Type
Woofer
Connection
4 Ω
Power / taps
50 W
Frequency range
32–1400 Hz (−10 dB)
Nominal size
15 cm / 5.9 inch
Fitting / feature
Polypropylene cone
ex VAT
£44.12 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The W 150 X combines a robust polypropylene cone with a 50 W rating. It suits compact subwoofer projects where the enclosure and crossover are designed around its 4 Ω load and published response.

Typical applications

  • Compact subwoofer projects
  • Custom loudspeaker systems using a 4 Ω woofer
Full specifications
W 150 X · 4 Ω
Rated power50 W
Nominal impedance4 Ω

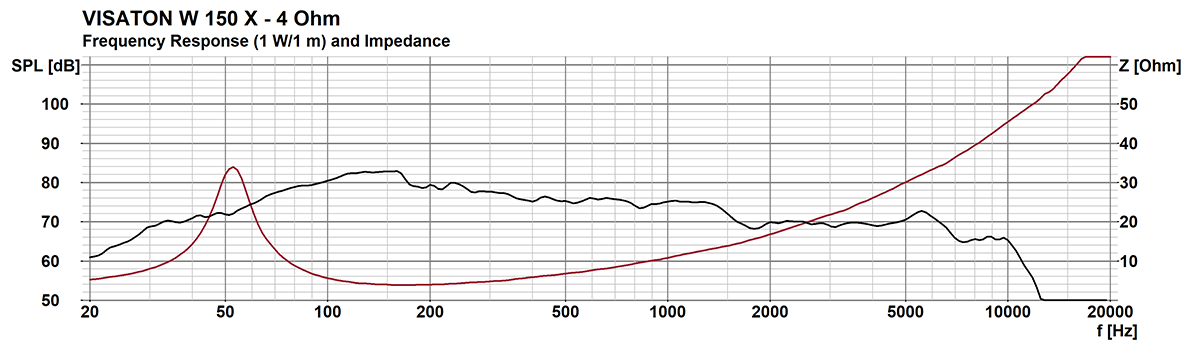

Frequency response (−10 dB)32–1400 Hz
Mean sound pressure level80 dB (1 W/1 m)
Resonance frequency fs50 Hz
Net weight0.92 kg
Connections5.2 x 0.5 mm (+) / 2.8 x 0.5 mm (−)
Temperature range−20 to 70 °C
Depth shown in drawing66.5 mm
Dimensions and drawings

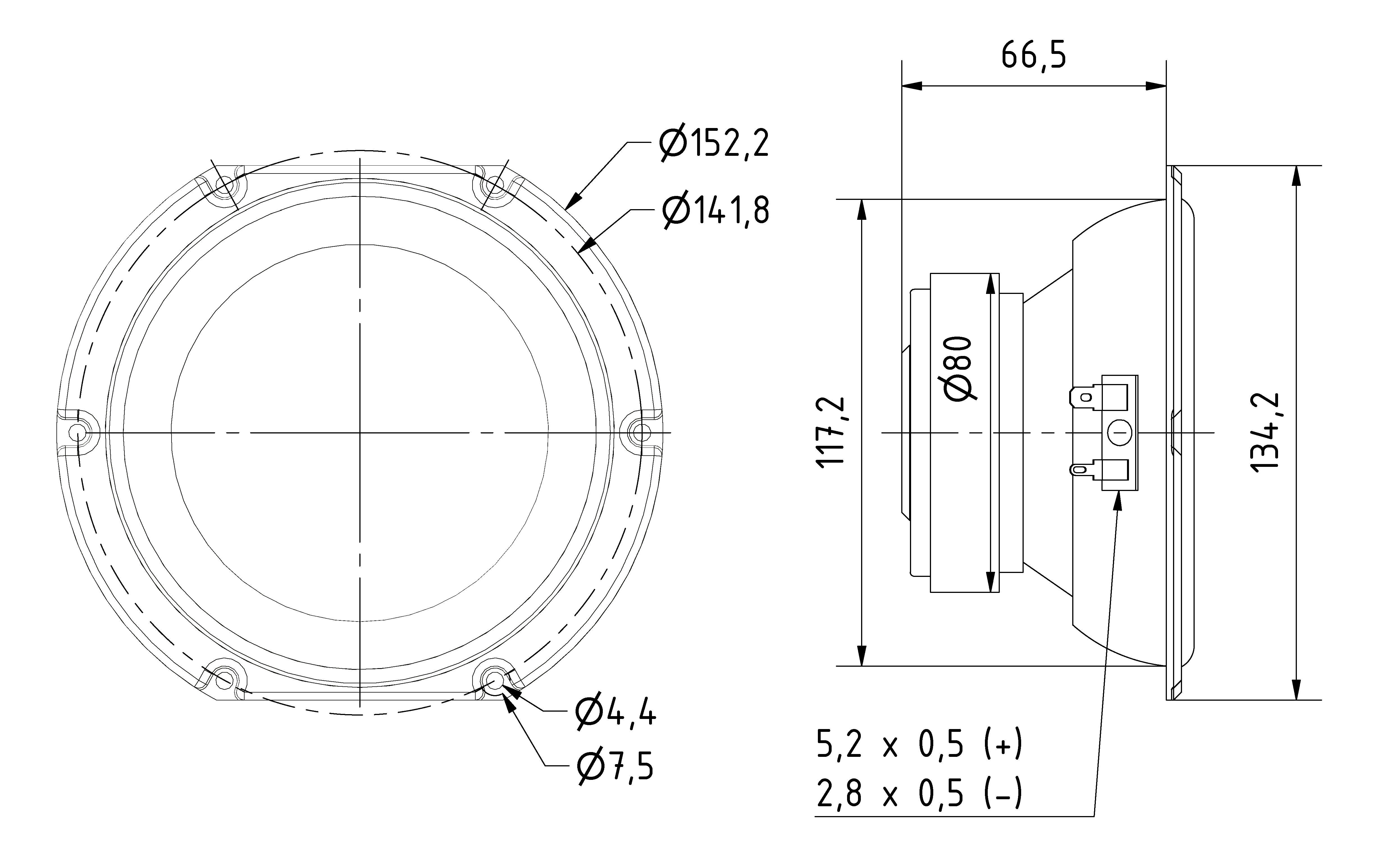

W 150 X · 4 Ω · part 9048 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the complete mounting profile and the 66.5 mm depth in the manufacturer drawing before designing the baffle. Allow clearance for the terminals and wiring.

Connect the positive and negative terminals with an amplifier and crossover suitable for the 4 Ω version. Keep the leads clear of moving parts and support them so the terminals are not strained.

The manufacturer describes compact subwoofer use, but cabinet alignment, damping, crossover and low-frequency limits remain design-specific. Confirm the complete enclosure before committing to an installation.
