Visaton WB 10 100 V/8 Ohm, 2-Way Compact Speaker (Black)

WB 10 · 100 V / 8 Ω · black · part 50312 — Product photo

Product photo · Enlarge image

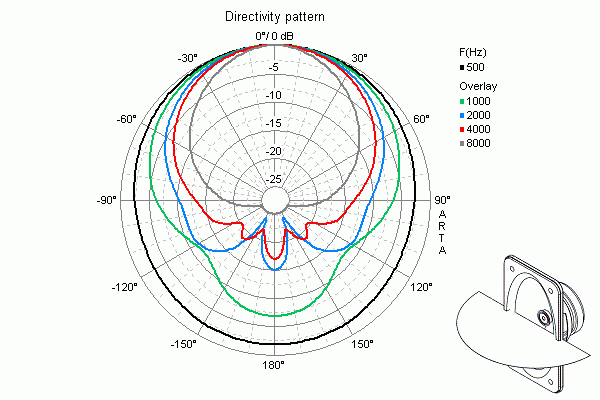

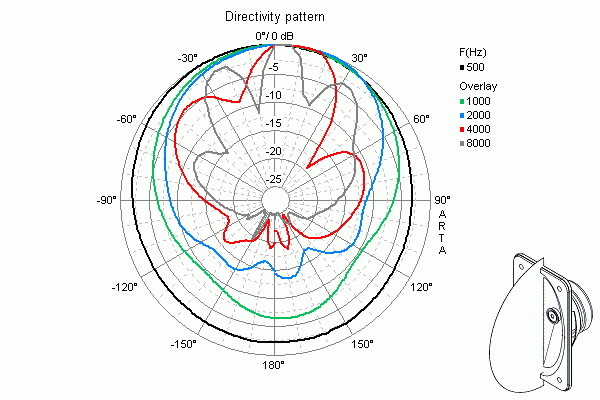

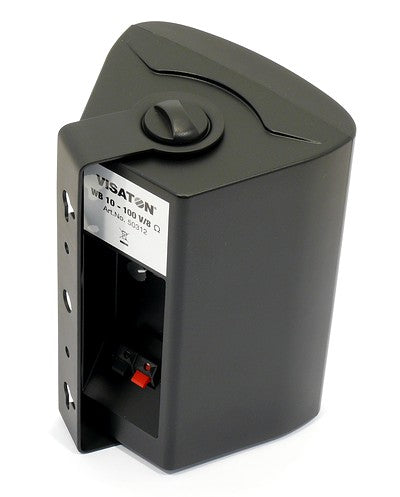

WB 10 · 100 V / 8 Ω · black · part 50312 — Product photoProduct photo WB 10 · 100 V / 8 Ω · black · part 50312 — Rear view and connectionsRear view and connections WB 10 · 100 V / 8 Ω · black · part 50312 — Dimension drawingDimension drawing WB 10 · 100 V / 8 Ω · black · part 50312 — Response and impedance · 8 Ω modeResponse and impedance · 8 Ω mode WB 10 · 100 V / 8 Ω · black · part 50312 — Horizontal directivityHorizontal directivity WB 10 · 100 V / 8 Ω · black · part 50312 — Vertical directivityVertical directivity

Product photographs and manufacturer drawings. Images are not to scale.

WB 10 · 100 V / 8 Ω · black · part 50312 — Product photo

Product photo

Open original image
Part number: 50312

A black two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Type
Two-way cabinet speaker
Connection
100 V / 8 Ω
Power / taps
40 W at 8 Ω
Frequency range
100–20000 Hz
Finish
Black
Protection
IP54
ex VAT
£98.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The WB 10 pairs a 10 cm woofer with a tweeter in a compact plastic cabinet. It handles 40 W in 8 Ω operation, while its built-in 100 V transformer offers 15 W/7.5 W/4 W/2 W settings. A selector chooses the operating mode and power tap. The swivel bracket supports horizontal or vertical installation, and the cabinet is rated IP54.

Typical applications

  • Speech and music in conference and commercial spaces
  • Indoor or suitably protected outdoor public address
Full specifications
WB 10 · 100 V / 8 Ω · black
Rated power (8 Ω operation)40 W
Maximum power (8 Ω operation)60 W
Nominal impedance8 Ω
Frequency response (−10 dB)100–20000 Hz
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)111°/4000 Hz hor. / 44°/4000 Hz vert.
Net weight1.325 kg
Transformer matching15 W/7.5 W/4 W/2 W/8 Ω
Sound pressure level91 dB (1 W/1 m)@ 8200 Hz
Max. sound pressure level96 dB (15 W/1 m)
ColourBlack
ConnectionsSpring terminals
Protective systemIP54
Temperature range–25 to 70 °C
Height × width208 × 130 mm
Cabinet depth / depth with bracket105 / 122 mm

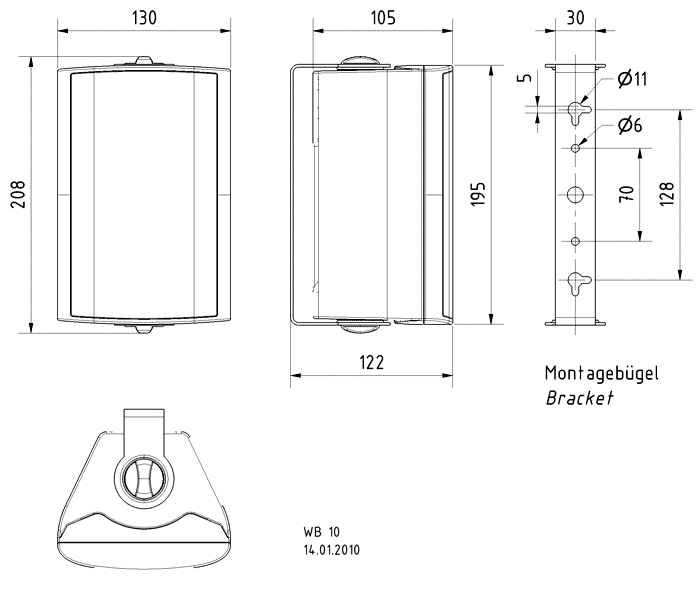

Dimensions and drawings
WB 10 · 100 V / 8 Ω · black · part 50312 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the bracket and dimension drawing to plan the mounting position. Allow clearance for rotation, cable access and the full fitting; secure it to a surface suitable for the 1.325 kg speaker.

Set the selector for the amplifier output before connecting. Use one of the stated transformer taps for a 100 V line, or the 8 Ω setting for a compatible low-impedance amplifier. Never connect a 100 V line with the selector at 8 Ω.

Connect through the spring terminals, maintaining polarity. Protect the cable joint and leave a service loop that does not pull on the terminals.

For outdoor fitting, preserve the housing seals and provide weather protection for the complete connection. IP54 does not make the speaker suitable for immersion.
