Visaton WB 13 100 V/8 Ohm, 2-Way Waterproof Speaker (White)

Part number: 50311

A white two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Type
Two-way cabinet speaker
Connection
100 V / 8 Ω
Power / taps
50 W at 8 Ω
Frequency range
95–20000 Hz
Finish
White
Protection
IP54
ex VAT
£113.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The WB 13 pairs a 13 cm woofer with a tweeter in a compact plastic cabinet. It handles 50 W in 8 Ω operation, while its built-in 100 V transformer offers 25 W/15 W/7.5 W/4 W/2 W settings. A selector chooses the operating mode and power tap. The swivel bracket supports horizontal or vertical installation, and the cabinet is rated IP54.

Typical applications

  • Speech and music in conference and commercial spaces
  • Indoor or suitably protected outdoor public address
Full specifications
WB 13 · 100 V / 8 Ω · white
Rated power (8 Ω operation)50 W
Maximum power (8 Ω operation)80 W
Nominal impedance8 Ω
Frequency response (−10 dB)95–20000 Hz
Mean sound pressure level88 dB (1 W/1 m)

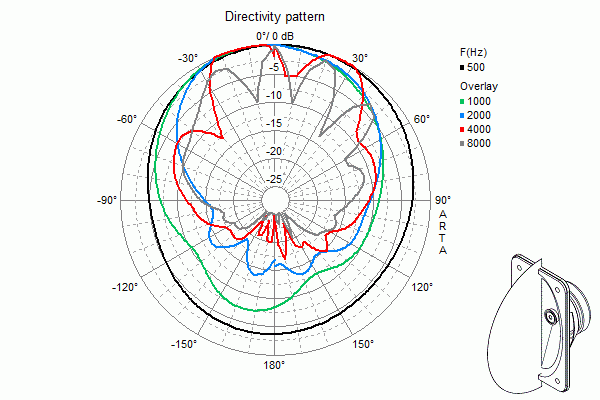

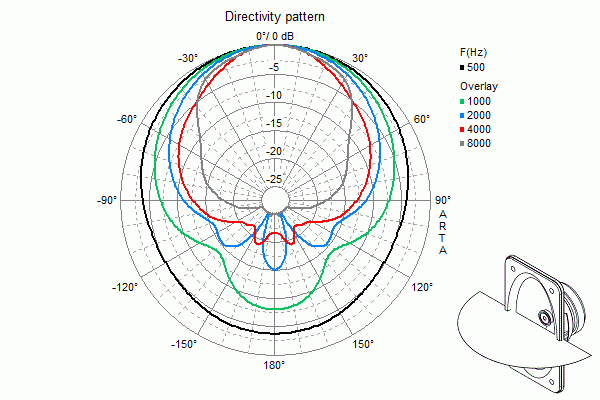

Opening angle (-6 dB)89°/4000 Hz hor. / 77°/4000 Hz vert.
Net weight2.4 kg
Transformer matching25 W/15 W/7.5 W/4 W/2 W/8 Ω
Max. sound pressure level102 dB (25 W/1 m)
ColourWhite
ConnectionsScrew terminals
Protective systemIP54
Temperature range–25 to 70 °C
Cabinet dimensions (H × W × D)240 × 180 × 140 mm
Dimensions and drawings

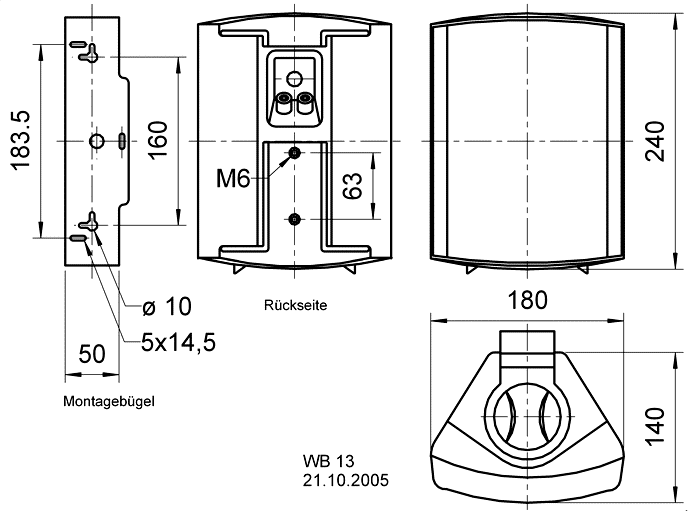

WB 13 · 100 V / 8 Ω · white · part 50311 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the bracket and dimension drawing to plan the mounting position. Allow clearance for rotation, cable access and the full fitting; secure it to a surface suitable for the 2.4 kg speaker.

Set the selector for the amplifier output before connecting. Use one of the stated transformer taps for a 100 V line, or the 8 Ω setting for a compatible low-impedance amplifier. Never connect a 100 V line with the selector at 8 Ω.

Connect through the screw terminals, maintaining polarity. Protect the cable joint and leave a service loop that does not pull on the terminals.

For outdoor fitting, preserve the housing seals and provide weather protection for the complete connection. IP54 does not make the speaker suitable for immersion.
