Visaton WB 16 100 V/8 Ohm, 2-Way Compact Speaker (Black)

Part number: 50318

A black two-way cabinet speaker for music and speech, with selectable 100 V or 8 Ω operation.

Type
Two-way cabinet speaker
Connection
100 V / 8 Ω
Power / taps
60 W at 8 Ω
Frequency range
80–20000 Hz
Finish
Black
Protection
IP54
ex VAT
£152.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The WB 16 pairs a 16 cm woofer with a tweeter in a compact plastic cabinet. It handles 60 W in 8 Ω operation, while its built-in 100 V transformer offers 25 W/15 W/7.5 W/4 W/2 W settings. A selector chooses the operating mode and power tap. The swivel bracket supports horizontal or vertical installation, and the cabinet is rated IP54.

Typical applications

  • Speech and music in conference and commercial spaces
  • Indoor or suitably protected outdoor public address
Full specifications
WB 16 · 100 V / 8 Ω · black
Rated power (8 Ω operation)60 W
Maximum power (8 Ω operation)90 W
Nominal impedance8 Ω
Frequency response (−10 dB)80–20000 Hz
Mean sound pressure level89 dB (1 W/1 m)

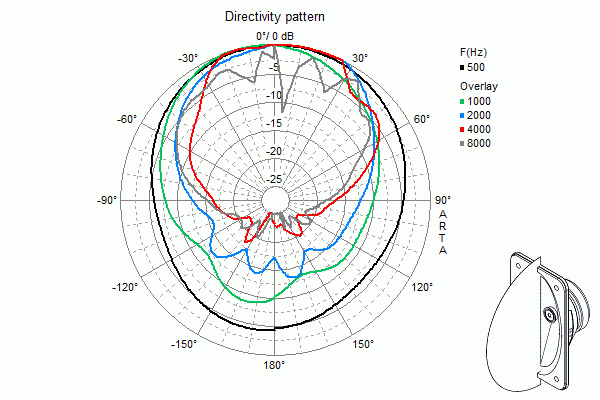

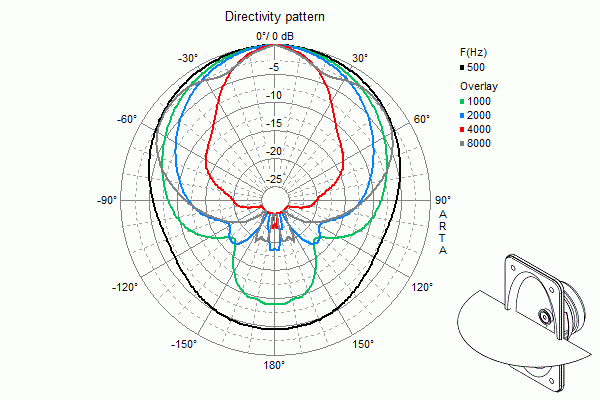

Opening angle (-6 dB)52° hor./4000 Hz / 97° vert./4000 Hz
Net weight2.8 kg
Transformer matching25 W/15 W/7.5 W/4 W/2 W/8 Ω
Sound pressure level92 dB (1 W/1 m)@ 16223 Hz
Max. sound pressure level103 dB (25 W/1 m)
ColourBlack
ConnectionsScrew terminals
Protective systemIP54
Temperature range–25 to 70 °C
Cabinet dimensions (H × W × D)292 × 220 × 172 mm
Dimensions and drawings

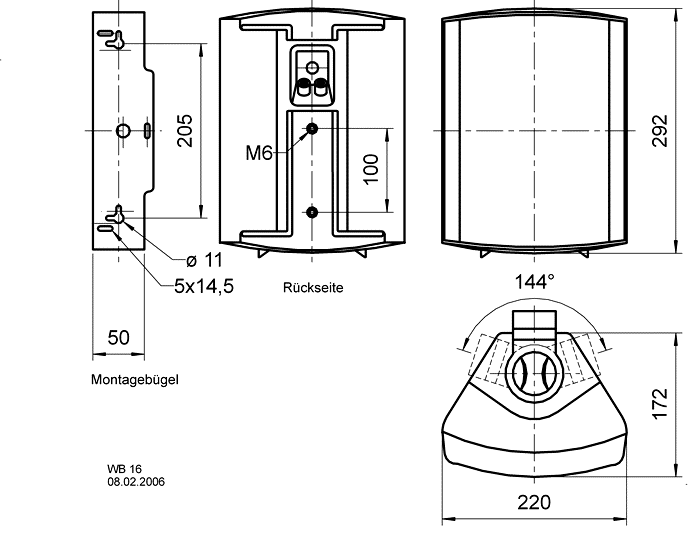

WB 16 · 100 V / 8 Ω · black · part 50318 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the bracket and dimension drawing to plan the mounting position. Allow clearance for rotation, cable access and the full fitting; secure it to a surface suitable for the 2.8 kg speaker.

Set the selector for the amplifier output before connecting. Use one of the stated transformer taps for a 100 V line, or the 8 Ω setting for a compatible low-impedance amplifier. Never connect a 100 V line with the selector at 8 Ω.

Connect through the screw terminals, maintaining polarity. Protect the cable joint and leave a service loop that does not pull on the terminals.

For outdoor fitting, preserve the housing seals and provide weather protection for the complete connection. IP54 does not make the speaker suitable for immersion.
