Visaton WL 10 P 100 V, Waterproof Cabinet Speaker

Part number: 50329

A small IP66 cabinet speaker for distributed speech and background music systems.

Type
Cabinet speaker
Connection
100 V
100 V taps
6 / 4 / 2 / 1 / 0.5 W
Frequency range
200–15000 Hz
Finish
White
Protection
IP66
ex VAT
£55.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

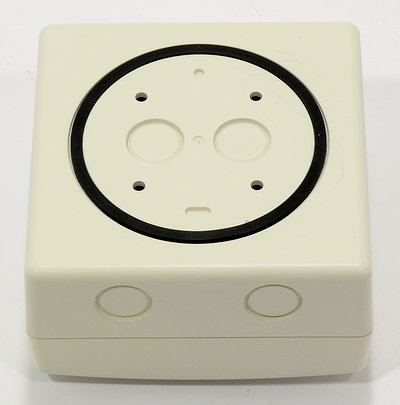

The WL 10 P combines a full-range driver and 100 V transformer in a white plastic cabinet with an integral grille. Five power taps let the installer balance local sound levels. Its ceramic terminal and thermal fuse support the connection arrangement; they do not by themselves establish certification of a complete alarm system.

Typical applications

  • Speech reproduction in public-address installations
  • Outdoor or industrial announcements
Full specifications
WL 10 P · 100 V
Frequency response (−10 dB)200–15000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)76°/4000 Hz
Net weight0.55 kg
Transformer matching6 W / 4 W / 2 W / 1 W / 0.5 W
Sound pressure level90 dB (1 W/1 m) @ 2800 Hz
Max. sound pressure level94 dB (6 W/1 m)
ConnectionsScrew terminals
Protective systemIP66
Temperature range−40 to 90 °C
ColourWhite
Face width shown in drawing119 mm
Dimensions and drawings

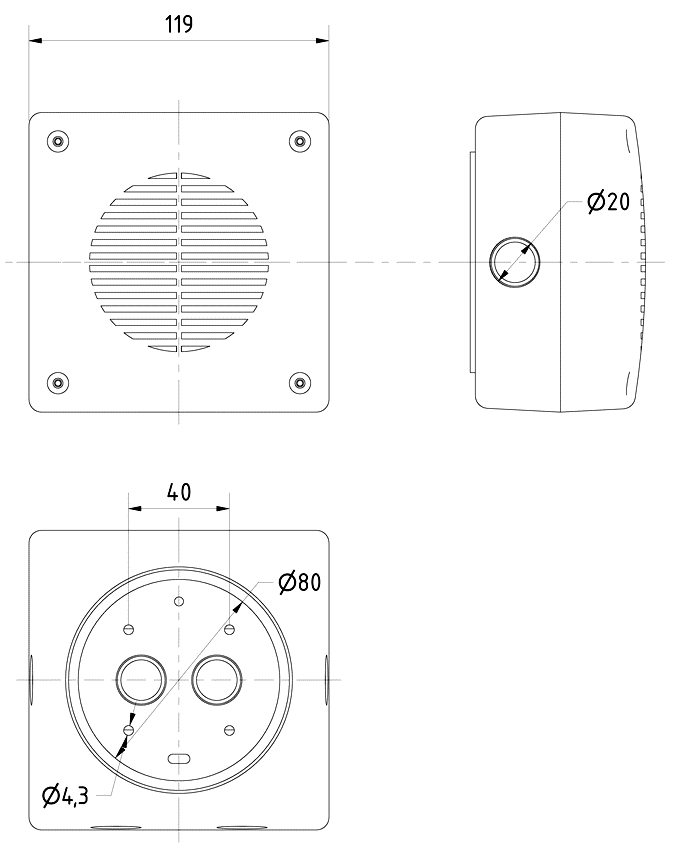

WL 10 P · 100 V · part 50329 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the 119 mm face-width drawing and fixing layout to position the cabinet. Check the substrate and route the cable through a suitable entry before securing the enclosure.

Connect the 100 V line to the ceramic screw terminal at 6 W, 4 W, 2 W, 1 W or 0.5 W, with the amplifier off. Include the chosen tap in the amplifier load calculation.

Keep the thermal fuse and internal wiring intact. Seal the cable entry and close the cabinet correctly so the IP66 construction is retained.
