Visaton DPS 26 100 V, Dipole Flat-Panel Speaker (Silver)

Part number: 50280

A passive dipole panel speaker for directing announcements along platforms and other narrow listening areas.

Type
Dipole panel speaker
Connection
100 V
Power / taps
6/3/1.5/1/0.5/0.3 W
Frequency range
200–18000 Hz
Finish
Silver, RAL 9006
Protection
IP55
ex VAT
£584.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DPS 26 uses a square aluminium housing and dipole radiation to concentrate speech towards the intended listening area. Its 100 V transformer offers six power settings. The RAL 9006 finish and IP55 construction suit outdoor public-address work, with the installation and aim chosen for the site.

Typical applications

  • Railway-platform announcements
  • Speech coverage along narrow public areas
Full specifications
DPS 26 · 100 V
Frequency response (−10 dB)200–18000 Hz
Mean sound pressure level92 dB (1 W/1 m)
Net weight3.2 kg
Transformer matching6/3/1.5/1/0.5/0.3 W
Max. sound pressure level100 dB (6 W/1 m)
ColourSilver, RAL 9006
Length of cable3 m
Protective systemIP55
Temperature range−40 to 80 °C
Housing dimensions (W × H × D)260 × 260 × 82 mm
100 V connection: Red / White6 W
100 V connection: White / Yellow3 W
100 V connection: Yellow / Black1.5 W
100 V connection: Red / Yellow1 W
100 V connection: White / Black0.5 W
100 V connection: Red / Black0.3 W
Dimensions and drawings

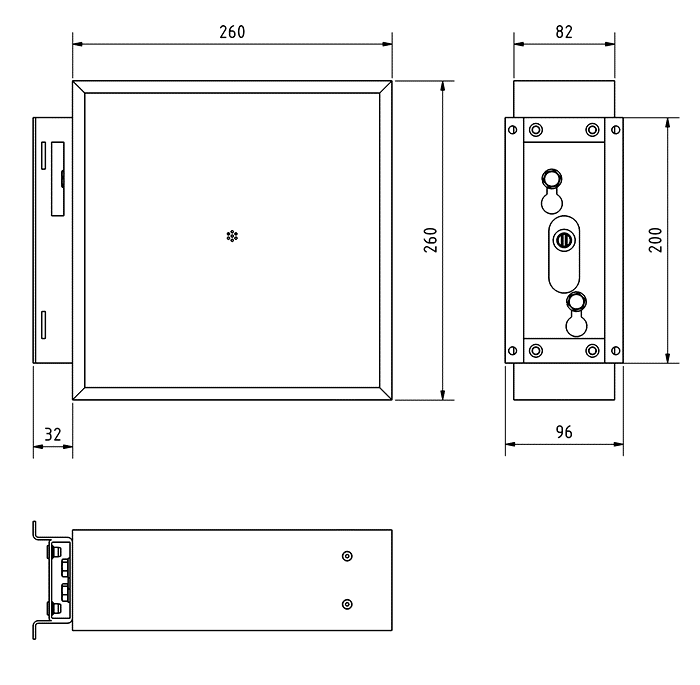

DPS 26 · 100 V · part 50280 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Plan for the 260 × 260 × 82 mm housing plus the bracket and cable. Use the mounting drawing and a fixing arrangement suitable for the 3.2 kg assembly. Keep both radiating faces clear and aim them along the intended listening area.

Choose the required 100 V tap using the manufacturer’s wire-pair table before connecting. Keep the unused conductors individually insulated and protect the cable joint against the installation environment.

Make the connection through the supplied 3 m cable without opening the cabinet. Maintain its seals and avoid obstructions immediately against either face.
