Visaton FR 16 WP CL 100 V, 6.5 Inch, Waterproof Speaker
Product photo · Enlarge image
Product photo

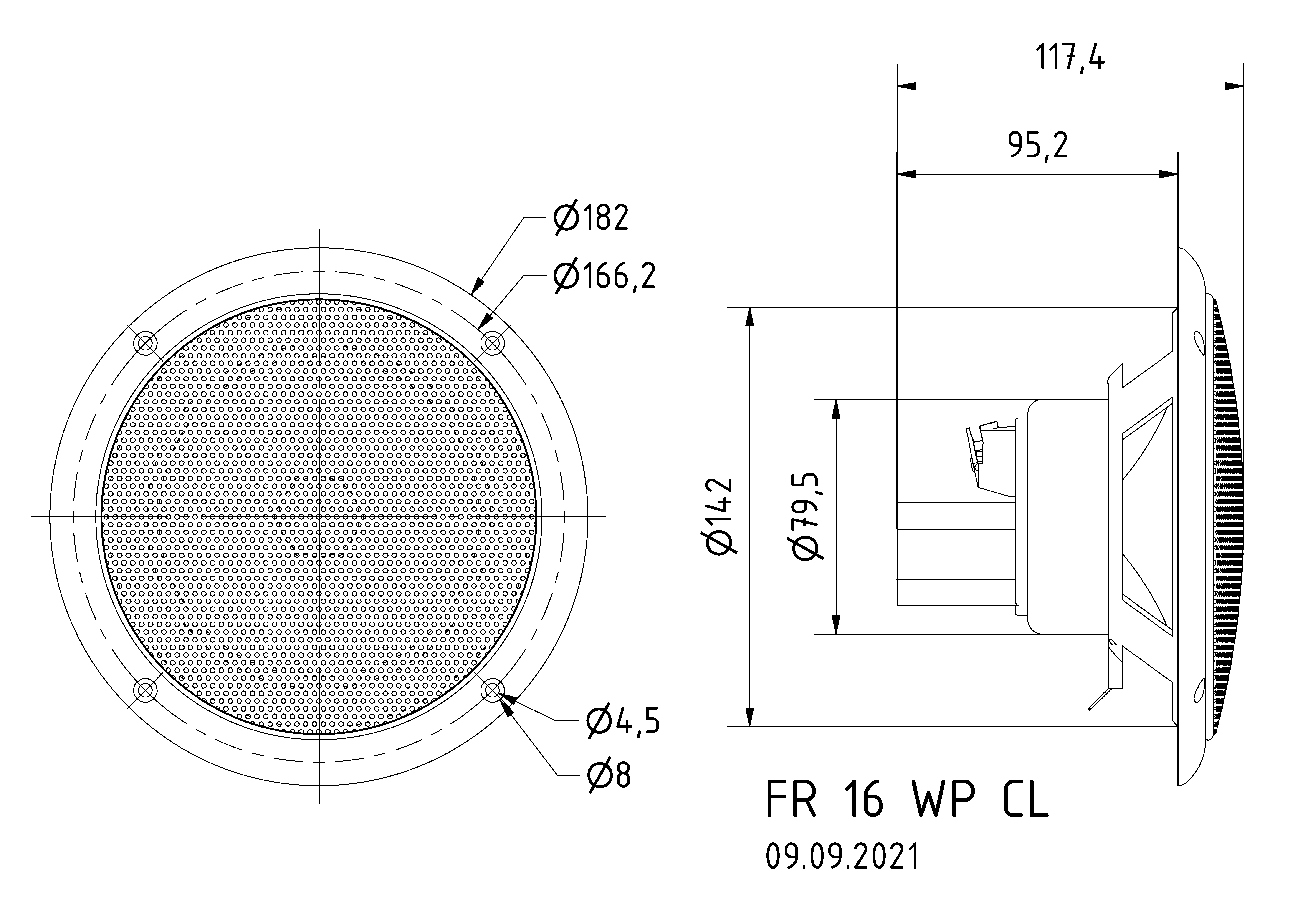

Dimension drawing · 2021 revision
Frequency response · 100 V configuration
Supplied FR 16 WP 4 Ω driver directivity reference
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The FR 16 WP CL uses a moulded plastic cone, plastic basket and grille, an enclosed magnet and silicone-coated leads. Its transformer offers 6 W, 3 W and 1.5 W connections. The front reaches IP65 when the speaker is mounted into a sealed enclosure; the rear connections still need protection.
Typical applications
- Indoor swimming-pool announcements
- Speech and background audio in suitable humid or salt-air installations
Full specifications
| Frequency response (−10 dB) | 60–15000 Hz |
|---|---|
| Mean sound pressure level | 86 dB (1 W/1 m) |
| Opening angle (-6 dB) | 46°/4000 Hz |
| Excursion limit | 6 mm |
| Magnetic induction | 1.0 T |
| Magnetic flux | 250 µWb |
| Height of front pole-plate | 4 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 6 mm |
| Cutout diameter | 142 mm |
| Net weight | 0.6 kg |
| Transformer matching | 6; 3; 1.5 W |
| Sound pressure level | 94 dB (1 W/1 m) @ 3500 Hz |
| Max. sound pressure level | 93 dB (6 W/1 m) |
| Connections | Spring terminals |
| Protective system | IP65 front only in a sealed enclosure |
| Temperature range | −40 to 80 °C |
| Face diameter (2021 drawing) | 182 mm |
| Rear mounting depth (2021 drawing) | 95.2 mm |
| Overall depth (2021 drawing) | 117.4 mm |
| Fixing circle (2021 drawing) | 166.2 mm |
Dimensions and drawings

Dimension drawing · 2021 revision · Open original image
Installation and cabinet guidance
Check the 142 mm cutout against the current 2021 drawing: 182 mm face, 95.2 mm rear depth and 117.4 mm overall. The older drawing in the PDF has different dimensions, so verify the supplied part for a close fit.
Use the spring terminals and marked 100 V tap with the amplifier off. Include the selected power in the amplifier load calculation and protect the transformer and cable joint.
Seal the front mounting interface to a suitable enclosure. The separate 2118 gasket is an accessory; do not assume it is included. Preserve the protected leads and do not submerge the assembled speaker or expose the rear connection to water.
