Visaton R 10 SC 4 Ohm, 4 Inch, Full Range Speaker

R 10 SC · 4 Ω · part 2040 — Product photo

Product photo · Enlarge image

R 10 SC · 4 Ω · part 2040 — Product photo Product photo R 10 SC · 4 Ω · part 2040 — Dimension drawing Dimension drawing R 10 SC · 4 Ω · part 2040 — Response and impedance Response and impedance R 10 SC · 4 Ω · part 2040 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

R 10 SC · 4 Ω · part 2040 — Product photo

Product photo

Open original image
Part number: 2040

A magnetically shielded 10 cm full-range driver with a water-repellent cone for public and transport installations.

Nominal size
10 cm / 4 inch
Impedance
4 Ω
Rated power
20 W
Cut-out
93 mm
Sensitivity
90 dB (1 W/1 m)
Resonance
165 Hz
ex VAT
£14.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The R 10 SC adds magnetic shielding, a water-repellent cone and a rubber gasket to the efficient R 10 S design, so it can sit close to screens and cope with damp or cold conditions. This 4 Ω version handles 20 W rated power and suits control speakers, public-address and public transport systems.

Typical applications

  • Video monitoring screens
  • Equipment monitoring
  • Ceiling speakers in rail vehicles and buses
  • Public-address and transport systems
Full specifications
R 10 SC · 4 Ω
Rated power20 W
Maximum power30 W
Nominal impedance4 Ω
Frequency response (−10 dB)100–13000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)92°/4000 Hz
Excursion limit±1.5 mm
Resonance frequency fs165 Hz
Magnetic induction0.95 T
Magnetic flux135 µWb
Height of front pole-plate3 mm
Voice coil diameter15 mm
Height of winding4 mm
Cut-out93 mm
Net weight0.24 kg
D.C. resistance Rdc3.6 Ω
Mechanical Q factor Qms6.4
Electrical Q factor Qes1.67
Total Q factor Qts1.32
Equivalent volume Vas2.6 l
Effective piston area Sd56 cm²
Dynamically moved mass Mms1.9 g
Force factor Bxl2 T m
Inductance of the voice coil L0.2 mH
Terminals5.2 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Protective systemIP64 — front side in a sealed enclosure
Temperature range−40 to 70 °C

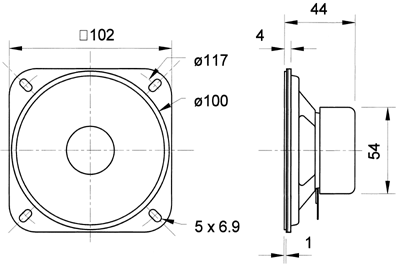

Dimensions and drawings
R 10 SC · 4 Ω · part 2040 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 93 mm panel opening and a 102 mm square frame with four 5 x 6.9 mm fixing slots. Leave about 44 mm behind the panel for the shielded magnet assembly, terminals and wiring.

Seat the rubber gasket evenly against a flat panel so the front-side protection is effective; the IP rating applies only to the front when the driver is built into a sealed enclosure.

Use connectors that fit the 5.2 x 0.5 mm positive and 2.8 x 0.5 mm negative blade terminals. Use an amplifier suitable for the 4 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.

Optional protective grilles for 10 cm drivers are available; match the grille to the panel finish and check its fixing pattern against the frame before drilling.
