Visaton F 8 SC 8 Ohm, 3.3 Inch, Magnetically Shielded Full Range Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The F 8 SC is a magnetically shielded 8 cm full-range driver with a balanced response and a moisture-resistant cone, intended for compact multimedia speakers and equipment placed close to a television or monitor. This 8 Ω driver handles 20 W rated power and has 4.8 x 0.8 mm and 2.8 x 0.8 mm blade terminals.
Typical applications
- Multimedia systems
- Video monitoring screens
- TVs
- Computer terminals
Full specifications
| Rated power | 20 W |
|---|---|
| Maximum power | 30 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 80–15000 Hz |
| Mean sound pressure level | 82 dB (1 W/1 m) |
| Opening angle (-6 dB) | 180°/4000 Hz |
| Excursion limit | ±2.5 mm |
| Resonance frequency fs | 125 Hz |
| Magnetic induction | 0.8 T |
| Magnetic flux | 150 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 4.5 mm |
| Cut-out | 76 mm |
| Net weight | 0.25 kg |
| D.C. resistance Rdc | 7.9 Ω |
| Mechanical Q factor Qms | 2.94 |
| Electrical Q factor Qes | 1.29 |
| Total Q factor Qts | 0.9 |
| Equivalent volume Vas | 1.0 l |
| Effective piston area Sd | 30 cm² |
| Dynamically moved mass Mms | 2 g |
| Force factor Bxl | 2.2 Tm |
| Inductance of the voice coil L | 0.3 mH |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Temperature range | –25 to 70 °C |

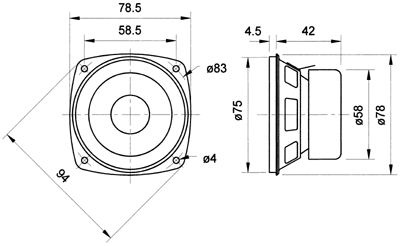

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 76 mm panel opening and a 78.5 mm square frame with four fixing holes. Leave about 47 mm behind the panel for the shielded magnet assembly, terminals and wiring.
Use push-on connectors that fit the 4.8 x 0.8 mm positive and 2.8 x 0.8 mm negative blade terminals, observe polarity and use an amplifier suitable for the 8 Ω load.
A matching 8 cm protective grille is available as an accessory; check its fixing pattern against the frame before drilling.
