Visaton FR 58 8 Ohm, 2.3 Inch, Full Range Speaker

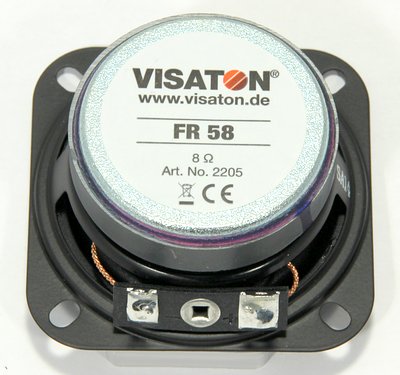

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The FR 58 combines a coated paper cone and rubber surround in a compact square basket. Four fixing holes and a supplied rubber gasket support installation in small audio systems and electronic equipment.
Typical applications
- Compact HiFi systems
- Small built-in audio systems
Full specifications
| Rated power | 10 W |
|---|---|
| Maximum power | 12 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 120–20000 Hz |
| Mean sound pressure level | 81 dB (1 W/1 m) |
| Maximum linear displacement | ± 0.55 mm(= 1.1 mm) |
| Excursion limit | ± 2.5 mm |
| Resonance frequency fs | 190 Hz |
| Height of front pole-plate | 2.4 mm |
| Voice coil diameter | 14 mm |
| Height of winding | 3.5 mm |
| Cut-out | 57 mm |
| Net weight | 0.13 kg |
| D.C. resistance Rdc | 7.3 Ω |
| Mechanical Q factor Qms | 2.41 |
| Electrical Q factor Qes | 1.64 |
| Total Q factor Qts | 0.98 |
| Equivalent volume Vas | 0.18 l |
| Effective piston area Sd | 13.2 cm² |
| Dynamically moved mass Mms | 0.97 g |
| Force factor Bxl | 2.27 Tm |
| Inductance of the voice coil L | 0.15 mH |
| Terminals | 5.2 x 0.5 mm (+)/2.8 x 0.5 mm (-) |
| Protective system | IP64 at the front when installed in a sealed enclosure |
| Temperature range | −40 to +100 °C |
Dimensions and drawings

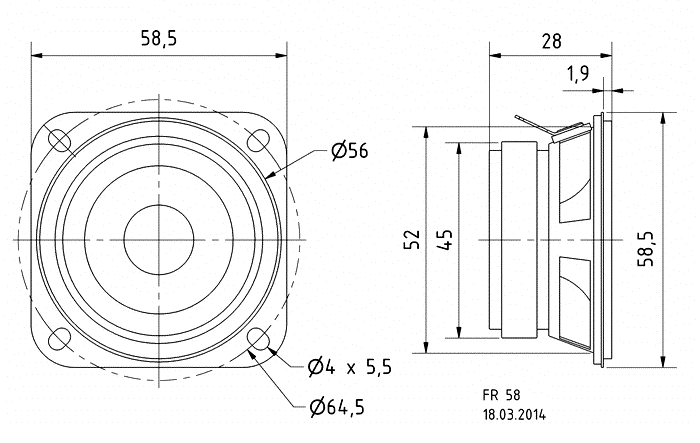

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 57 mm panel opening and align the four slotted fixing holes. Seal the mounting joint and protect the rear from moisture: IP64 protection applies to the front when installed in a sealed enclosure. Optional grille: 2203.
Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
