Visaton FRS 8 4 Ohm, 3.3 Inch, HiFi Full Range Speaker

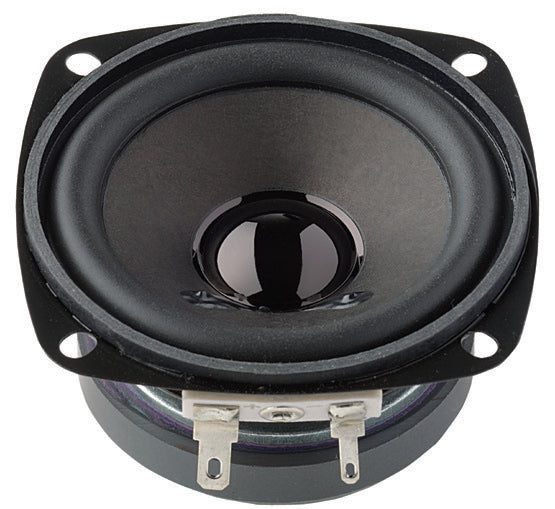

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The FRS 8 uses a metal basket and a moisture-resistant cone. This is the 4 Ω model, part 2003. Its compact format suits surround effects and small subwoofer/satellite systems; a moisture-resistant cone does not make the complete driver waterproof.
Typical applications
- Compact HiFi and surround-effect speakers
- Monitoring audio in electronic equipment
- Model construction
- Ceiling speakers in buses and railway carriages
Full specifications
| Rated power | 30 W |
|---|---|
| Maximum power | 50 W |
| Nominal impedance | 4 Ω |

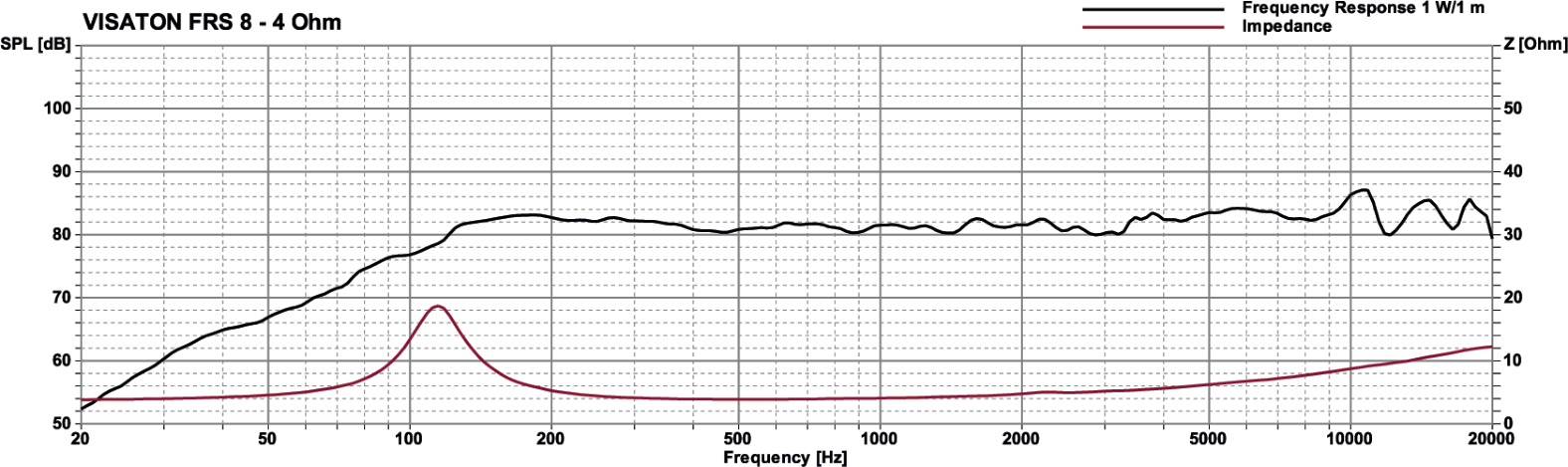

| Frequency response (−10 dB) | 100–20000 Hz |
| Mean sound pressure level | 82 dB (1 W/1 m) |

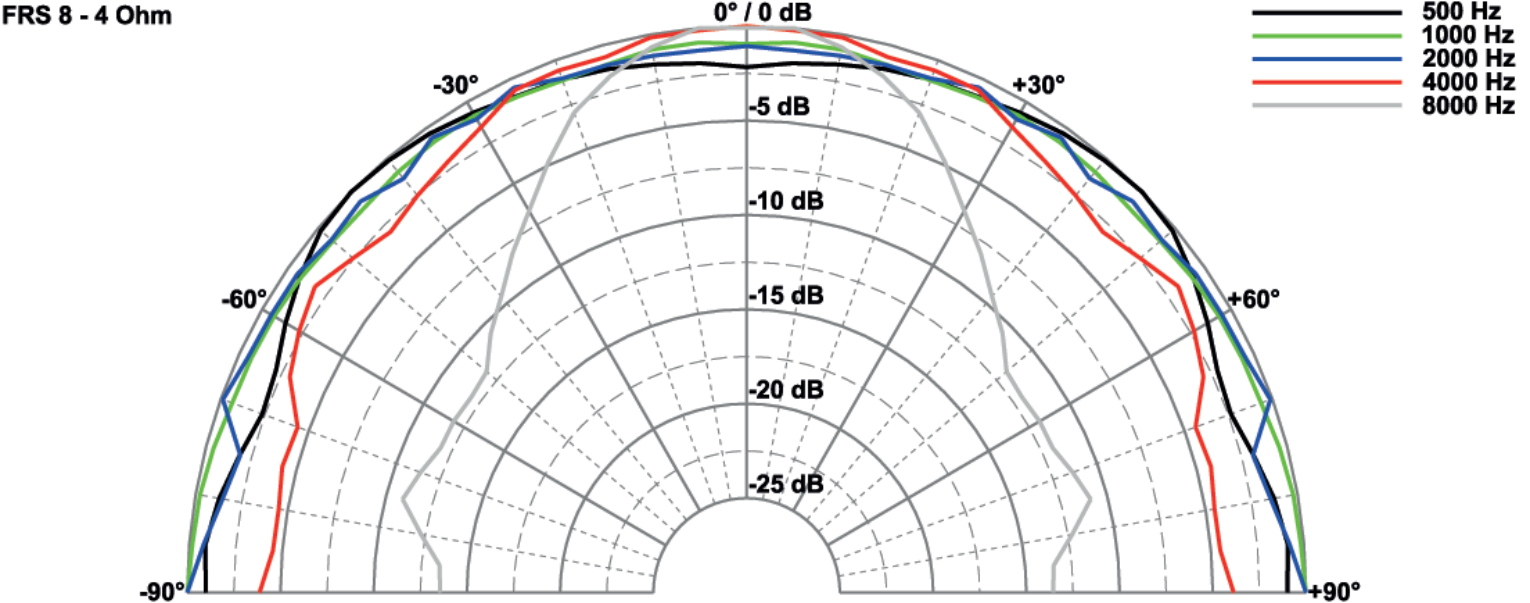

| Opening angle (−6 dB) | 180°/4000 Hz |
| Excursion limit | ±2.5 mm |
| Resonance frequency (fs) | 120 Hz |
| Magnetic induction | 0.8 T |
| Magnetic flux | 200 µWb |
| Height of front pole-plate | 4 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 4.5 mm |
| Cut-out diameter | 73 mm |
| Net weight | 0.28 kg |
| DC resistance (Rdc) | 3.5 Ω |
| Mechanical Q factor Qms | 3.61 |
| Electrical Q factor Qes | 0.85 |
| Total Q factor Qts | 0.69 |
| Equivalent volume Vas | 1 l |
| Effective piston area Sd | 31 cm² |
| Dynamically moved mass Mms | 2.5 g |
| Force factor Bxl | 2.2 T m |
| Inductance of the voice coil L | 0.4 mH |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Temperature range | –25 to 70 °C; contact us for use in extreme temperatures |

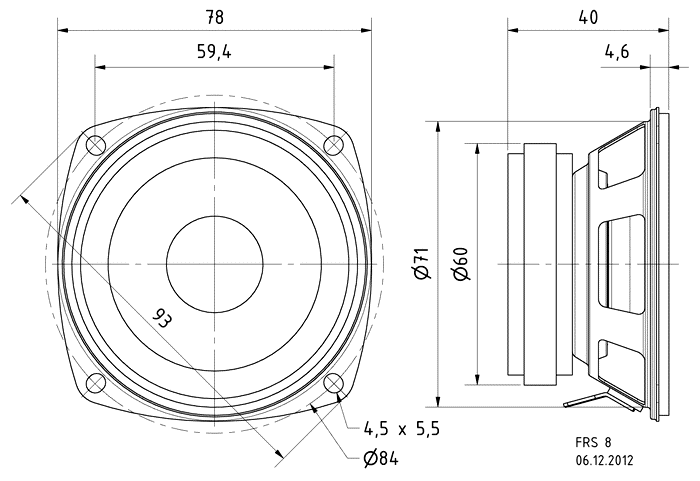

Dimensions and drawings
Installation and cabinet guidance
Allow for a 73 mm panel opening and match the fixing slots before drilling. Leave room behind the speaker for the magnet, terminals and wiring. Optional grille 1138 suits rear mounting; grille 4634 suits front mounting.
