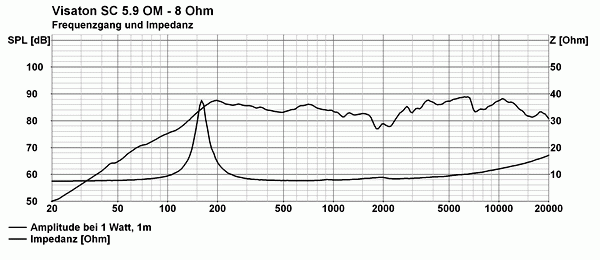

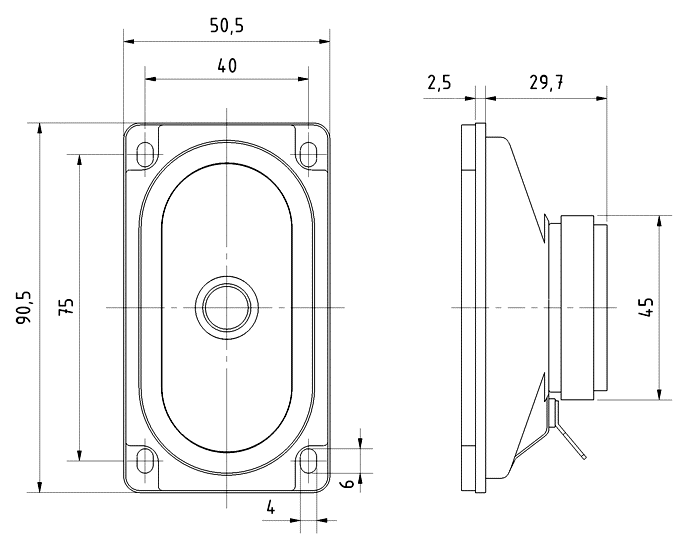

{ "id":15940478304638, "title":"Visaton SC 5.9 OM 8 Ohm, 2 x 3.5 Inch, Oval Full Range Speaker","handle":"visaton-sc-5-9-om-8-full-range-speaker-art-no-8003", "description":"\u003cp\u003eAn 8 Ω oval full-range driver for slim multimedia and built-in audio equipment.\u003c\/p\u003e\u003cp\u003eThe SC 5.9 OM uses an oval cone to provide useful radiating area in a narrow mounting space. Its 43 × 82 mm cut-out makes it a candidate for compact music and speech systems or carefully matched replacement work.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Oval full-range driver\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 8 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 10 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 90–20000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 5 × 9 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e 43 × 82 mm cut-out\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eMultimedia and television audio\u003c\/li\u003e\n\u003cli\u003eBuilt-in music and speech behind narrow panels\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e10 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMaximum power\u003c\/th\u003e\n\u003ctd\u003e15 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e90–20000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e84 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e170 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of front pole-plate\u003c\/th\u003e\n\u003ctd\u003e3 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e14 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of winding\u003c\/th\u003e\n\u003ctd\u003e4 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eCutout diameter\u003c\/th\u003e\n\u003ctd\u003e43 x 82 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e0.14 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003e4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTemperature range\u003c\/th\u003e\n\u003ctd\u003e–25 to 70 °C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCheck the 43 × 82 mm cut-out, fixing positions and available depth against the drawing.\u003c\/li\u003e\n\u003cli\u003eConnect the 4.8 × 0.8 mm positive and 2.8 × 0.8 mm negative terminals to a suitable 8 Ω amplifier.\u003c\/li\u003e\n\u003cli\u003eSeal the frame to the baffle and verify electrical and mechanical compatibility for replacement work. The shared manufacturer photographs also illustrate the 4 Ω family version.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/SC%205.9%20OM_8002_8003_0.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/fullrange-systems\/sc-59-om-8-ohm\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:32:03", "created_at":"2026-06-02T13:28:30", "vendor":"Visaton", "type":"Full-range driver", "tags":["8 Ω","Driver","Impedance_8 Ohm","Loudspeaker","New Products","SC","speaker","Type_Full Range Speaker","Visaton","Visaton - General Purpose Speakers: Oval"], "price":802, "price_min":802, "price_max":802, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499384381822], "variants":[{ "id":57499384381822, "product_id":15940478304638, "product_handle":"visaton-sc-5-9-om-8-full-range-speaker-art-no-8003", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"8003", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton SC 5.9 OM 8 Ohm, 2 x 3.5 Inch, Oval Full Range Speaker - Default Title", "options":["Default Title"], "price":802, "weight":140, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/sc5.9om_4_180731_1_0_1.jpg?v=1789040869"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/sc5.9om_4_180731_1_0_1.jpg?v=1789040869", "options":["Title"], "url":"\/products\/visaton-sc-5-9-om-8-full-range-speaker-art-no-8003"}
