Visaton FRS 7 A 8 Ohm, 2.5 Inch, Full Range Speaker

Previous Product | Next Product
FRS 7 A · 8 Ω · part 2412 — Product photo

Product photo · Enlarge image

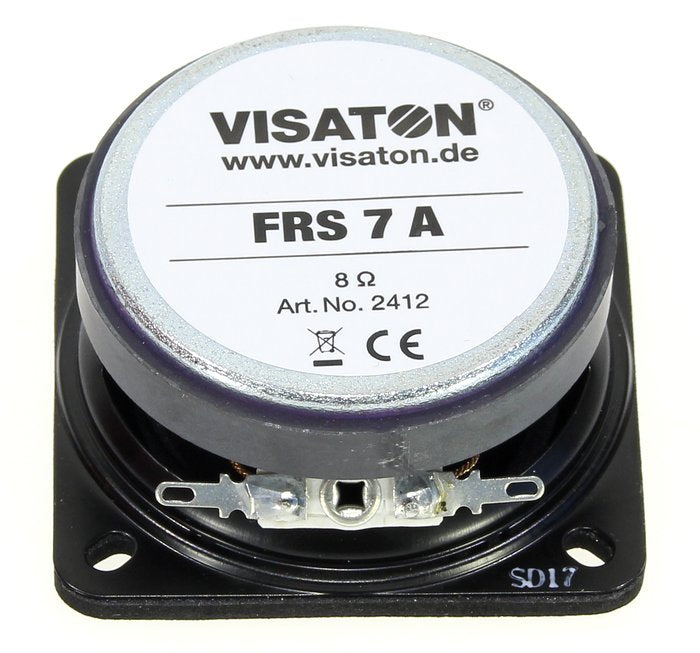

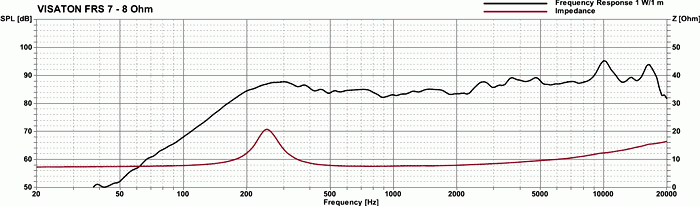

FRS 7 A · 8 Ω · part 2412 — Product photo Product photo FRS 7 A · 8 Ω · part 2412 — Label and terminals Label and terminals FRS 7 A · 8 Ω · part 2412 — Dimension drawing Dimension drawing FRS 7 A · 8 Ω · part 2412 — Response and impedance Response and impedance FRS 7 A · 8 Ω · part 2412 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRS 7 A · 8 Ω · part 2412 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 2412

A compact full-range driver with 2.8 × 0.8 mm blade terminals for narrow columns and electronic equipment.

Nominal size
6.5 cm / 2.5 inch
Impedance
8 Ω
Rated power
8 W
Cut-out
Confirm from drawing
Sensitivity
88 dB (1 W/1 m)
Resonance
220 Hz
£11.95 Business price, ex VAT £14.34 inc VAT at 20%
Maximum quantity available reached.

Description

The FRS 7 A is suited to narrow speaker columns, equipment monitoring and electronic instruments. It uses 2.8 × 0.8 mm blade terminals for both polarities, distinguishing it from the solder-lug FRS 7.

Typical applications

  • Narrow speaker columns
  • Equipment monitoring
  • Model projects
  • Electronic instruments
Full specifications
FRS 7 A · 8 Ω
Rated power8 W
Maximum power15 W
Nominal impedance8 Ω
Frequency response (−10 dB)200–20000 Hz
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)149°/4000 Hz
Resonance frequency fs220 Hz
Voice coil diameter14 mm
Net weight0.2 kg
Terminals2.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range−25 to 100 °C
Dimensions and drawings

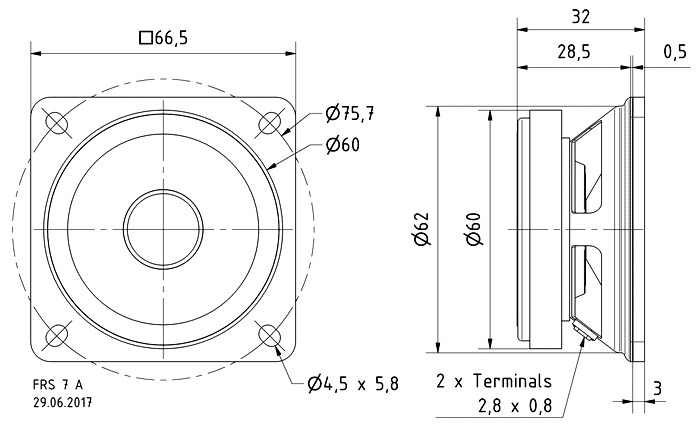

FRS 7 A · 8 Ω · part 2412 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the required panel opening against the actual speaker before cutting. Allow space for the frame, fixing slots and rear connections. Optional grille: 2312.

Use a protected mounting position and keep the rear connections dry. The waterproof cone does not make the complete driver or installation waterproof.

Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
