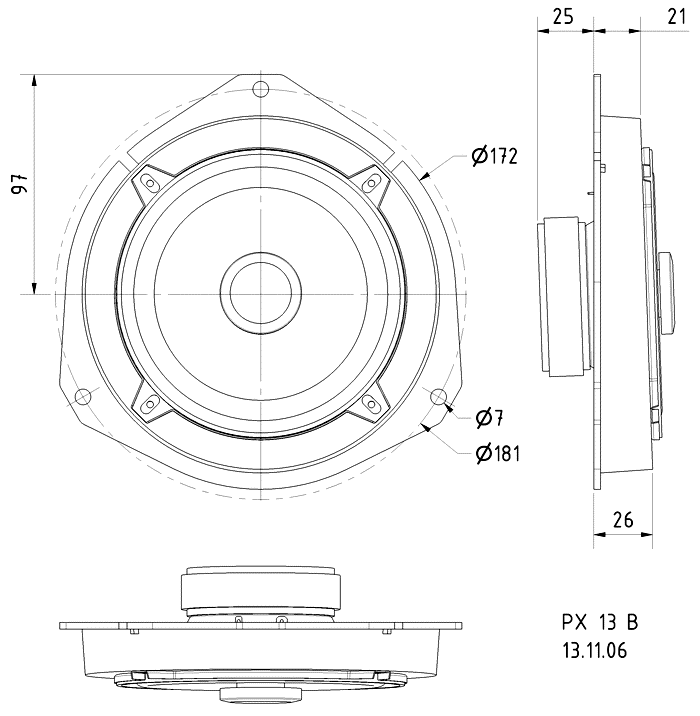

{ "id":15940478009726, "title":"Visaton PX 13 B 4 Ohm, 5 Inch, Two Way Coaxial Speaker","handle":"visaton-px-13-b-4-coaxial-speaker-art-no-4605", "description":"\u003cp\u003eA 4 Ω coaxial speaker with an adapter ring for selected Fiat Ducato installations.\u003c\/p\u003e\u003cp\u003eThe PX 13 B combines a 13 cm cone driver and piezo tweeter with a vehicle mounting adapter. Visaton identifies Fiat Ducato models from 2006 as the intended application; the drawing lets you check the actual vehicle aperture and trim before ordering.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Two-way coaxial speaker\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 4 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 20 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 60–15000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 13 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e Adapter ring included\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eMusic and speech in compatible Fiat Ducato installations\u003c\/li\u003e\n\u003cli\u003eVehicle speaker replacement with matching adapter dimensions\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e20 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMaximum power\u003c\/th\u003e\n\u003ctd\u003e30 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e4 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e60–15000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e84 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eOpening angle (-6 dB)\u003c\/th\u003e\n\u003ctd\u003e75°\/4000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eExcursion limit\u003c\/th\u003e\n\u003ctd\u003e±2 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e95 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMagnetic induction\u003c\/th\u003e\n\u003ctd\u003e1.0 T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMagnetic flux\u003c\/th\u003e\n\u003ctd\u003e190 µWb\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of front pole-plate\u003c\/th\u003e\n\u003ctd\u003e3 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e20 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of winding\u003c\/th\u003e\n\u003ctd\u003e5.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e0.53kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003e4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTemperature range\u003c\/th\u003e\n\u003ctd\u003e–25 to 70 °C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCompare the adapter drawing with the specific vehicle, model year and trim. Confirm aperture, fixing positions and clearance before ordering.\u003c\/li\u003e\n\u003cli\u003eConnect to a suitable 4 Ω vehicle audio output and maintain polarity. The separate ADK F adapter cable, part 4777, is not included.\u003c\/li\u003e\n\u003cli\u003eSecure the adapter and speaker without twisting the frame; check that the door or dashboard trim clears the cone and tweeter.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/PX%2013%20B_4605.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/coaxial-speakers\/px-13-b-4-ohm\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:31:52", "created_at":"2026-06-02T13:28:27", "vendor":"Visaton", "type":"Coaxial driver", "tags":["4 Ω","car loudspeakers","Driver","Impedance_4 Ohm","Loudspeaker","New Products","PX","speaker","Type_Co-Axial","Visaton","Visaton - General Purpose Speakers: Co-Axial"], "price":2279, "price_min":2279, "price_max":2279, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499383759230], "variants":[{ "id":57499383759230, "product_id":15940478009726, "product_handle":"visaton-px-13-b-4-coaxial-speaker-art-no-4605", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"4605", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton PX 13 B 4 Ohm, 5 Inch, Two Way Coaxial Speaker - Default Title", "options":["Default Title"], "price":2279, "weight":530, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/px13b.jpg?v=1789040859"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/px13b.jpg?v=1789040859", "options":["Title"], "url":"\/products\/visaton-px-13-b-4-coaxial-speaker-art-no-4605"}
