Visaton SC 5.9 ND 8 Ohm, 2 x 3.5 Inch, Full Range Oval Speaker

Previous Product | Next Product
SC 5.9 ND · 8 Ω · part 8056 — Product photo

Product photo · Enlarge image

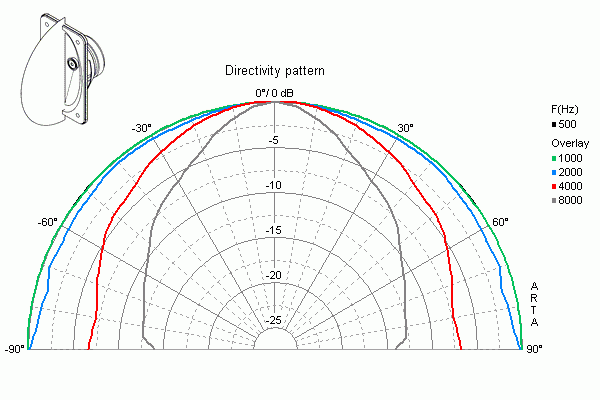

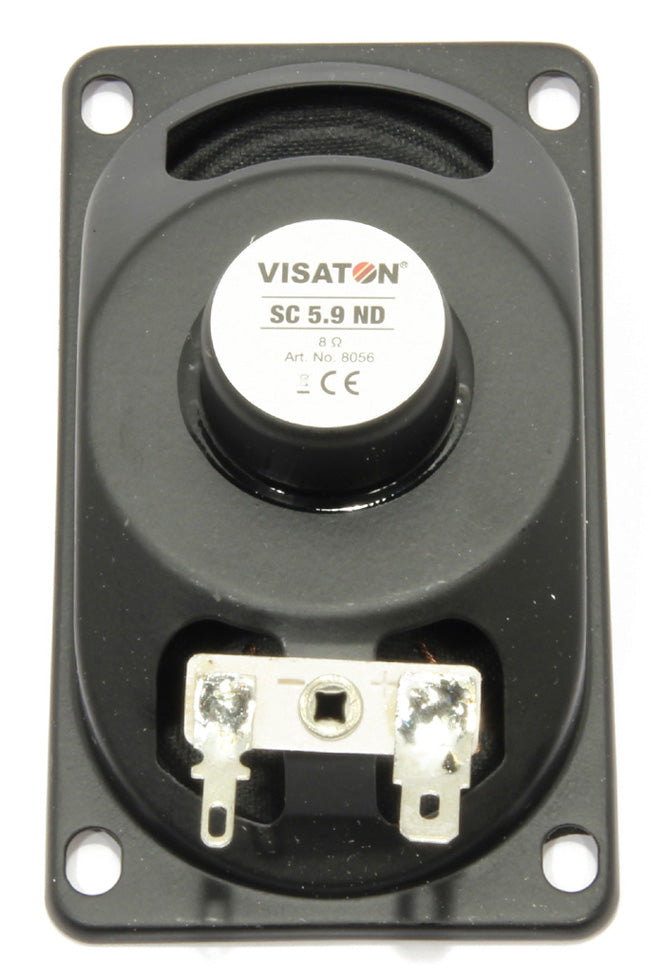

SC 5.9 ND · 8 Ω · part 8056 — Product photo Product photo SC 5.9 ND · 8 Ω · part 8056 — Rear view and connections Rear view and connections SC 5.9 ND · 8 Ω · part 8056 — Dimension drawing Dimension drawing SC 5.9 ND · 8 Ω · part 8056 — Response and impedance Response and impedance SC 5.9 ND · 8 Ω · part 8056 — Directivity pattern — vertical Directivity pattern — vertical SC 5.9 ND · 8 Ω · part 8056 — Directivity pattern — horizontal Directivity pattern — horizontal

Product photographs and manufacturer drawings. Images are not to scale.

SC 5.9 ND · 8 Ω · part 8056 — Product photo

Product photo

Open original image
Part number: 8056

A light, shielded oval driver for narrow multimedia enclosures.

Nominal size
5 × 9 cm / 2 × 3.5 inch
Impedance
8 Ω
Rated power
3 W
Cut-out
43 x 82 mm (oval)
Sensitivity
82 dB (1 W/1 m)
Resonance
280 Hz
ex VAT
£10.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 5.9 ND uses a compact neodymium magnet to reduce weight and mounting space in TVs, PCs and monitoring equipment. Its magnetically shielded construction and clear upper-frequency response suit speech and multimedia audio. This 8 Ω version handles 3 W rated power and weighs 60 g.

Typical applications

  • TV and PC audio
  • Electronic monitoring
  • Compact multimedia systems
Full specifications
SC 5.9 ND · 8 Ω
Rated power3 W
Maximum power4 W
Nominal impedance8 Ω
Frequency response (−10 dB)150–17000 Hz
Mean sound pressure level82 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz horizontal; 131°/4000 Hz vertical
Excursion limit±1 mm
Resonance frequency fs280 Hz
Magnetic induction0.75 T
Magnetic flux100 µWb
Height of front pole-plate3 mm
Voice coil diameter14 mm
Height of winding4 mm
Cut-out43 x 82 mm (oval)
Net weight0.06 kg
D.C. resistance Rdc7.7 Ω
Mechanical Q factor Qms6.98
Electrical Q factor Qes10.02
Total Q factor Qts4.11
Equivalent volume Vas0.4 l
Effective piston area Sd26.5 cm²
Dynamically moved mass Mms1.2 g
Force factor Bxl1.2 Tm
Inductance of the voice coil L0.4 mH
TerminalsBlade terminals — check width and thickness before selecting connectors
Temperature range–25 to 70 °C
Dimensions and drawings

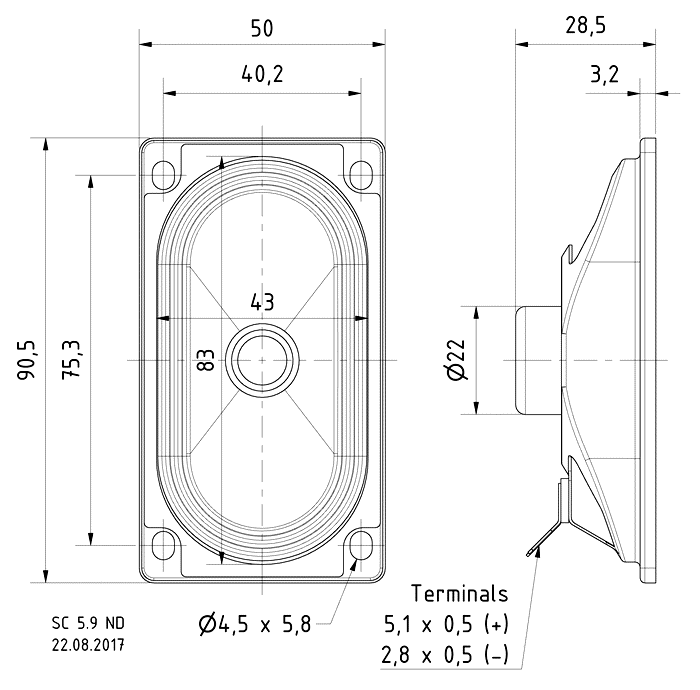

SC 5.9 ND · 8 Ω · part 8056 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 43 × 82 mm oval opening, 50 × 90.5 mm frame and 28.5 mm depth, plus wiring clearance. Check connector fit on the supplied driver before ordering terminals. Confirm impedance and fixing positions when replacing an existing speaker.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Use this impedance version’s enclosure parameters when developing a cabinet, and test the response at the intended listening level. Allow for the volume occupied by the driver and keep damping material clear of the cone and terminals.
