Visaton SC 8 N 8 Ohm, 3.3 Inch, Magnetically Shielded Full Range Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The SC 8 N is a magnetically shielded 8 cm full-range driver with a cellulose cone, an inverted rubber surround and a very balanced frequency response. Paired with the shielded SC 5 tweeter it forms a compact two-way system for multimedia, centre and screen-side speakers. This 8 Ω driver handles 30 W rated power.
Typical applications
- Surround centre speakers
- Multimedia systems
- Video monitoring screens
- TVs
- Computer terminals
Full specifications
| Rated power | 30 W |
|---|---|
| Maximum power | 50 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 70–20000 Hz |
| Mean sound pressure level | 81 dB (1 W/1 m) |
| Opening angle (-6 dB) | 150°/4000 Hz |
| Excursion limit | ±3 mm |
| Resonance frequency fs | 110 Hz |
| Magnetic induction | 0.9 T |
| Magnetic flux | 170 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 4 mm |
| Cut-out | 73 mm |
| Net weight | 0.28 kg |
| D.C. resistance Rdc | 7.0 Ω |
| Mechanical Q factor Qms | 3.68 |
| Electrical Q factor Qes | 1.31 |
| Total Q factor Qts | 0.97 |
| Equivalent volume Vas | 1.5 l |
| Effective piston area Sd | 26 cm² |
| Dynamically moved mass Mms | 1.9 g |
| Force factor Bxl | 2.4 Tm |
| Inductance of the voice coil L | 0.3 mH |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Temperature range | –25 to 70 °C |
Dimensions and drawings

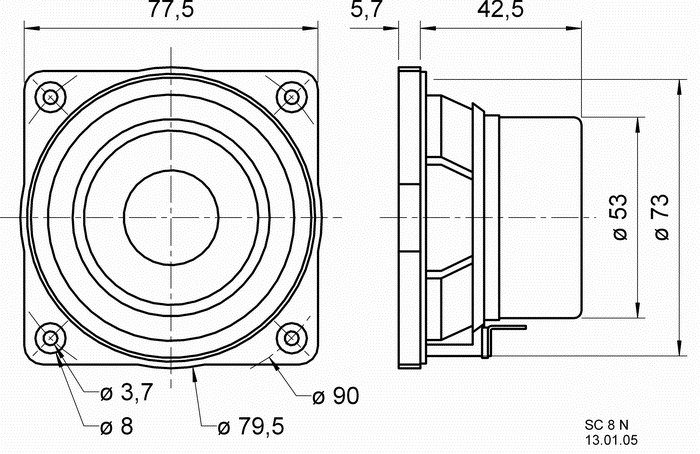

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 73 mm panel opening and a 77.5 mm square frame with four fixing holes. Leave about 48 mm behind the panel for the shielded magnet assembly, terminals and wiring.
Use push-on connectors that fit the 4.8 x 0.8 mm positive and 2.8 x 0.8 mm negative blade terminals, observe polarity and use an amplifier suitable for the 8 Ω load.
In a two-way system, add a suitable crossover for the tweeter and keep the cabinet sealed around the frame to avoid leaks and rattles.
