Visaton SL 713, 4 Ohm, 2.8 x 5 Inch - Full Range Oval Loudspeaker

Product Description

Oval fullrange driver with high efficiency and highrange rise for good speech audibility. For applications in slim column speakers and in 100 V sound reinforcement networks.



Technical Data:
Rated power 10 W
Maximum power 15 W
Nominal impedance Z 4 Ohm
Frequency response 100–20000 Hz
Mean sound pressure level 90 dB (1 W/1 m)

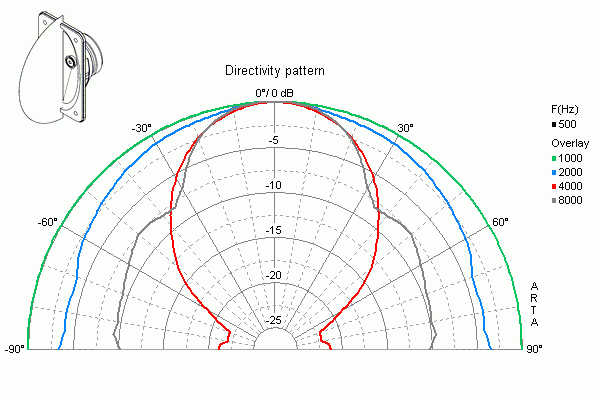

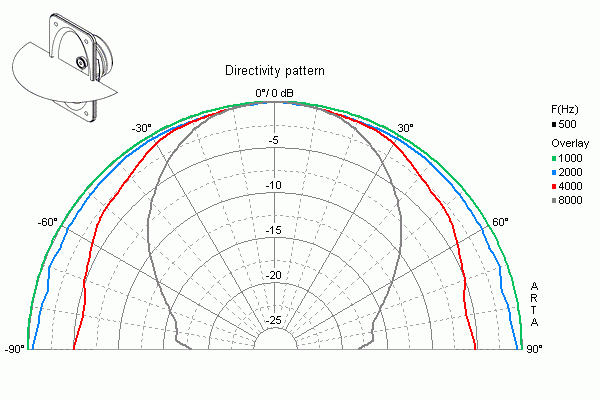

Angle of sound emmision 180°/4000 Hz (hor.)
63°/4000 Hz (vert.)
Maximum cone displacement 4 mm
Resonance frequency fs 200 Hz
Magnetic induction 0,9 T
Magnetic flux 130 µWb
Height of front pole-plate 3 mm
Voice coil diameter 15 mm
Height of winding 5 mm

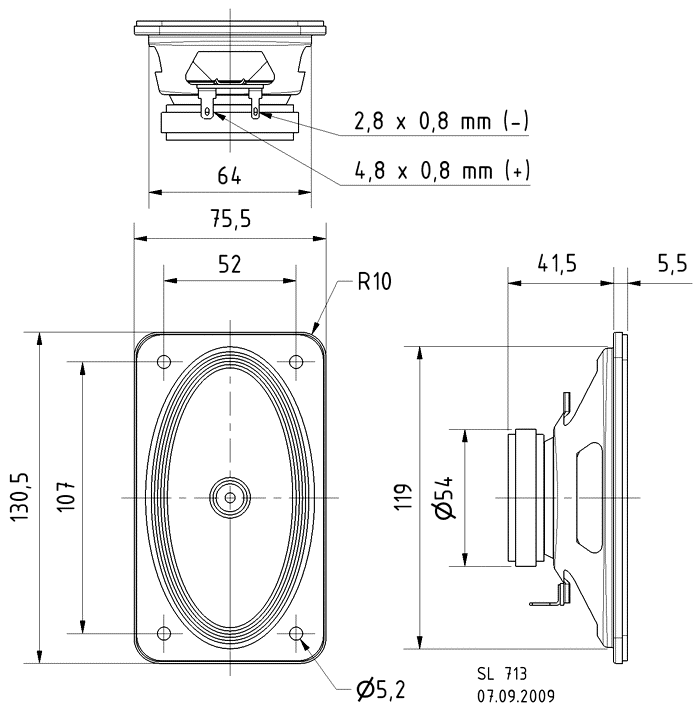

Cutout diameter 66 x 118 mm (oval)
Net weight 0,28 kg
D.C. resistance Rdc 3,9 Ohm
Mechanical Q factor Qms 8,39
Electrical Q factor Qes 2,4
Total Q factor Qts 1,87
Equivalent volume Vas 1,9 l
Effective piston area Sd 50 cm²
Dynamically moved mass Mms 1,7 g
Force factor Bxl 1,9 T m
Inductance of the voice coil L 0,2 mH
Heat resistance −25 ... 70 °C
ex VAT
£13.87 inc VAT
