Visaton DK 97 8 Ohm, Re-Entrant Horn Speaker
Product photo · Enlarge image
Product photo

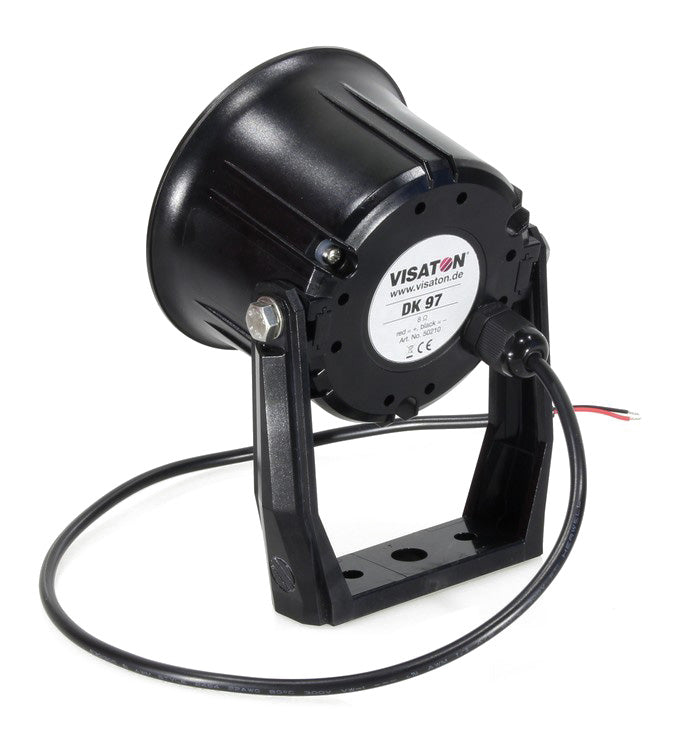

Rear view and connections

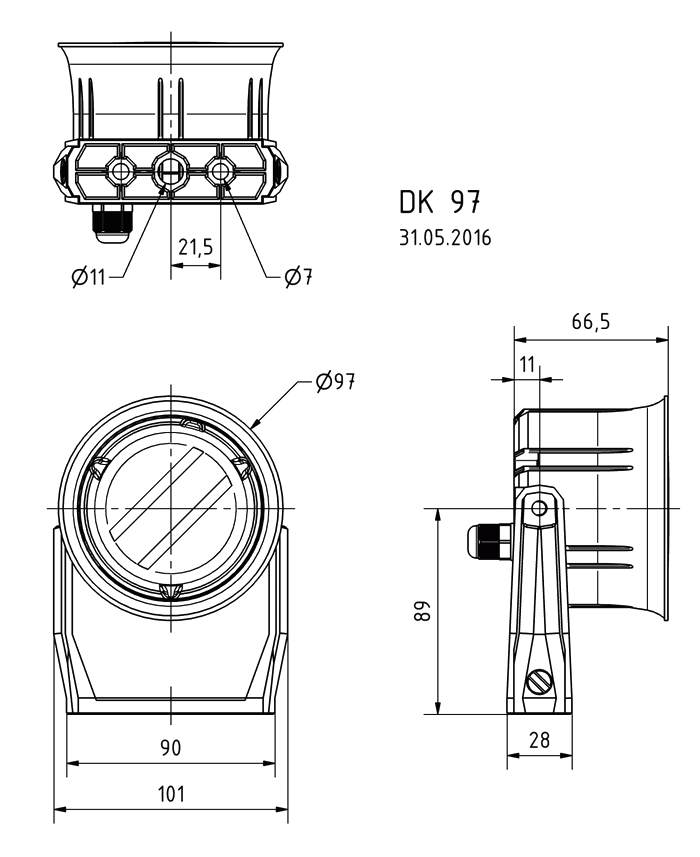

Dimension drawing

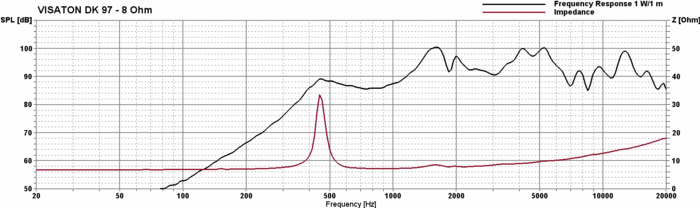

Response and impedance · 8 Ω

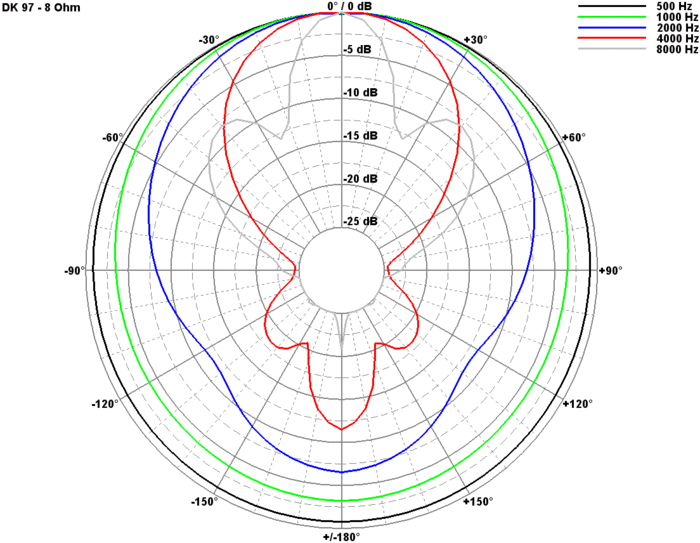

Directivity pattern
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DK 97 combines a 97 mm horn mouth with a small mounting bracket and 0.5 m connection lead. The black IP67 design suits compact public-address and vehicle installations where intelligible speech matters more than bass reproduction.
Typical applications
- Speech reproduction in public-address installations
- Outdoor or industrial announcements
Full specifications
| Rated power | 6 W |
|---|---|
| Maximum power | 10 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 380–20000 Hz |
| Mean sound pressure level | 93 dB (1 W/1 m) |
| Opening angle (-6 dB) | 69°/4000 Hz |
| Voice coil diameter | 15 mm |
| Net weight | 0.35 kg |
| Sound pressure level | 100 dB (1 W/1 m)@ 1600 Hz |
| Colour | Black |
| Connections | Stripped ends (red cable = plus) |
| Length of cable | 0.5 m |
| Protective system | IP67 |
| Temperature range | -40 to 100 °C |
| Horn mouth diameter | 97 mm |
| Horn depth shown in drawing | 66.5 mm |
Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Use the adjustable bracket and dimension drawing to check the fixing position and clearance around the 97 mm horn mouth. Select fixings suitable for the supporting surface and leave room for the lead.
Connect the 0.5 m stripped cable to a compatible 8 Ω amplifier; the red conductor is positive. Enclose and strain-relieve the joint for the installation environment.
Aim the horn towards listeners and secure the bracket. Preserve the enclosure and cable-entry seals; protect the cable joint separately from the IP67 horn.
