Visaton DL 18/1 100 V, 6.5 Inch, Ceiling Speaker (RAL 9010)
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription

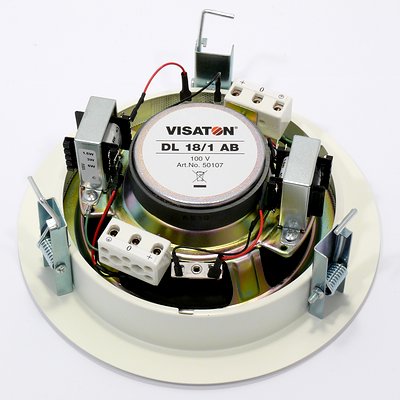

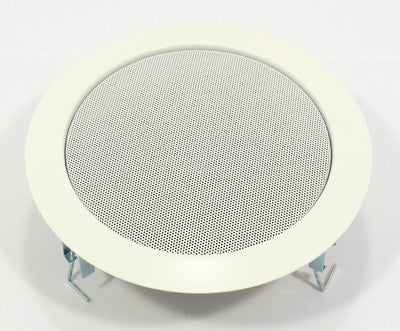

The archived Visaton page identifies this as the DL 18/1 AB for PA installations with A/B wiring. It uses a corrosion-free RAL 9010 grille and a round 200 mm ceiling cut-out. The source lists 2 × 6/3/1.5 W transformer taps, 90–18000 Hz response and 1.55 kg net weight.
Typical applications
- Commercial 100 V audio systems
- Speech and programme reproduction
- Fixed installations using the published transformer taps
Full specifications
| Frequency response | 90–18000 Hz |
|---|---|
| Mean sound pressure level | 96 dB (2 x 1 W/1 m) |

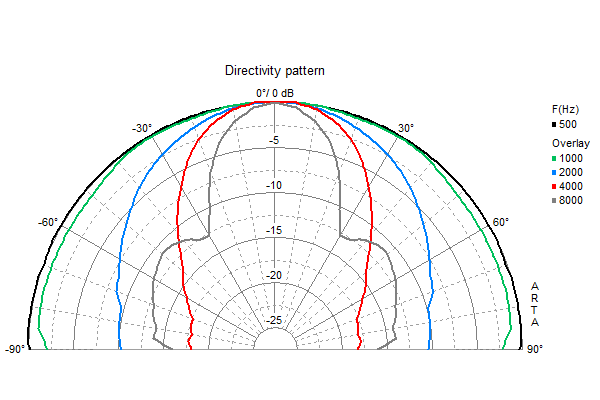

| Opening angle (-6 dB) | 57°/4000 Hz |
| Resonance frequency fs | 130 Hz |
| Voice coil diameter | 20 mm |
| Cutout diameter | 200 mm |
| Net weight | 1.55 kg |
| Transformer matching | 2 x 6 W;2 x 3 W;2 x 1.5 W |
| Max. sound pressure level | 104 dB (2 x 6 W/1 m) |
| Colour | RAL 9010 |
| Protective system | IP X3 |
| Temperature range | −40 ... 110 °C |
Dimensions and drawings

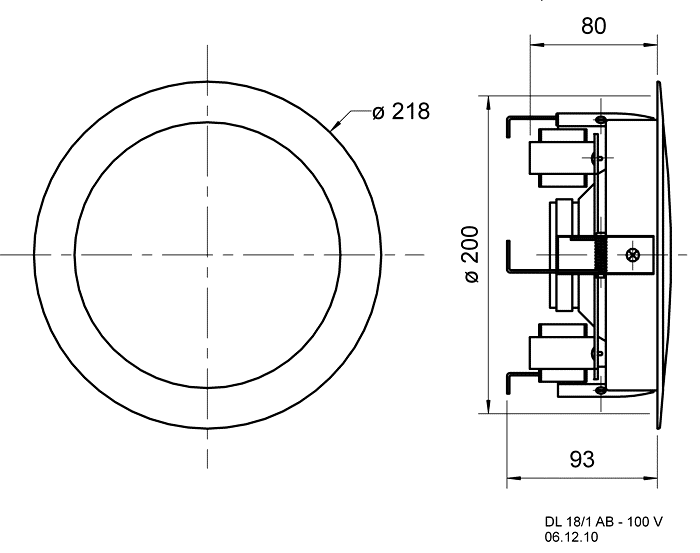

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
