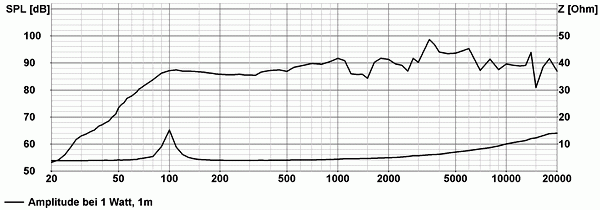

{ "id":15940478861694, "title":"Visaton DL 18\/1 100 V, 6.5 Inch, Ceiling Speaker (RAL 9016)","handle":"visaton-dl-18-1-100-v-ceiling-speaker-art-no-50106", "description":"\u003cp\u003eA 100 V ceiling speaker in RAL 9016 white with snap-in mounting and three power taps.\u003c\/p\u003e\u003cp\u003eThe DL 18\/1 combines a full-range driver, line transformer and removable bayonet grille for ceiling music and speech. Part 50106 is the RAL 9016 finish, distinct from the RAL 9010 version sold under part 50105.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Ceiling speaker\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 100 V\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 6 \/ 3 \/ 1.5 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 70–20000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 17 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e RAL 9016 white\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCeiling background music\u003c\/li\u003e\n\u003cli\u003eDistributed speech and announcements\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e70–20000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e93 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eOpening angle (-6 dB)\u003c\/th\u003e\n\u003ctd\u003e57°\/4000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e100 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e20 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eCutout diameter\u003c\/th\u003e\n\u003ctd\u003e200 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e1.15 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTransformer matching\u003c\/th\u003e\n\u003ctd\u003e6 \/ 3 \/ 1.5 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eSound pressure level\u003c\/th\u003e\n\u003ctd\u003e101 dB (1 W\/1 m)@ 3260 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMax. sound pressure level\u003c\/th\u003e\n\u003ctd\u003e101 dB (6 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eColour\u003c\/th\u003e\n\u003ctd\u003eRAL 9016\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003eSpring terminals\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eProtective system\u003c\/th\u003e\n\u003ctd\u003eIPX3\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTemperature range\u003c\/th\u003e\n\u003ctd\u003e−40 to 110 °C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eInput\u003c\/th\u003e\n\u003ctd\u003e100 V line\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCheck the 200 mm cut-out, ceiling thickness and available void using the drawing; support the installation to suit the ceiling construction.\u003c\/li\u003e\n\u003cli\u003eIsolate the 100 V line before wiring and select the 6, 3 or 1.5 W transformer tap. Include the selected tap in the total amplifier load calculation.\u003c\/li\u003e\n\u003cli\u003eSecure the snap-in mounting and bayonet grille. Protect rear terminals and use any required ceiling\/fire accessories separately; IPX3 is not a fire-resistance classification.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/DL%2018-1_50105_50106_0.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/ceiling-speakers\/dl-181-100-v-ral-9016\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:32:24", "created_at":"2026-06-02T13:28:38", "vendor":"Visaton", "type":"Visaton - Ceiling Speakers", "tags":["100 V","Collection_Ceiling Rule Members","DL","Driver","Impedance_100 V","Loudspeaker","New Products","speaker","Type_Ceiling Speakers","Visaton","Visaton Public Address Speakers : Ceiling Speakers"], "price":4235, "price_min":4235, "price_max":4235, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499385299326], "variants":[{ "id":57499385299326, "product_id":15940478861694, "product_handle":"visaton-dl-18-1-100-v-ceiling-speaker-art-no-50106", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"50106", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton DL 18\/1 100 V, 6.5 Inch, Ceiling Speaker (RAL 9016) - Default Title", "options":["Default Title"], "price":4235, "weight":1150, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/dl18_1.jpg?v=1789040884"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/dl18_1.jpg?v=1789040884", "options":["Title"], "url":"\/products\/visaton-dl-18-1-100-v-ceiling-speaker-art-no-50106"}
