Visaton KL 33 EN 100 V/4 Ohm, Spherical Speaker (White)
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
33 cm spherical loudspeaker. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles and therefore provide a uniform and pleasant sound quality. The KL 33 EN can be connected to a 100 V network or a normal amplifier (4 Ω).
Typical applications
- Commercial audio systems
- Speech and programme reproduction
- Fixed installations using the stated 100 V or low-impedance connection
Full specifications
| Rated power | 50 W |
|---|---|
| Maximum power | 70 W |
| Nominal impedance Z | 4 Ω |

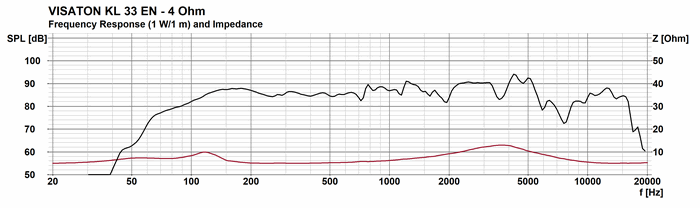

| Frequency response | 70–18000 Hz |
| Mean sound pressure level | 86 dB (1 W/1 m) |

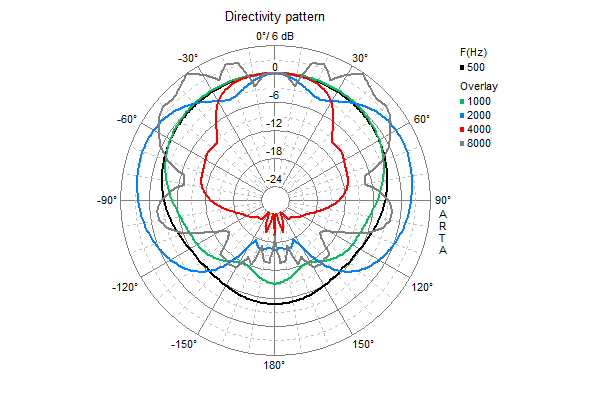

| Opening angle (-6 dB) | 73°/4000 Hz |
| Net weight | 4.6 kg |
| Transformer matching | 12/6/3/1.5 W |
| Max. sound pressure level | 97 dB (12 W/1 m) |
| Colour | white |
| Length of cable | 3 m |
| Protective system | IP 44 |

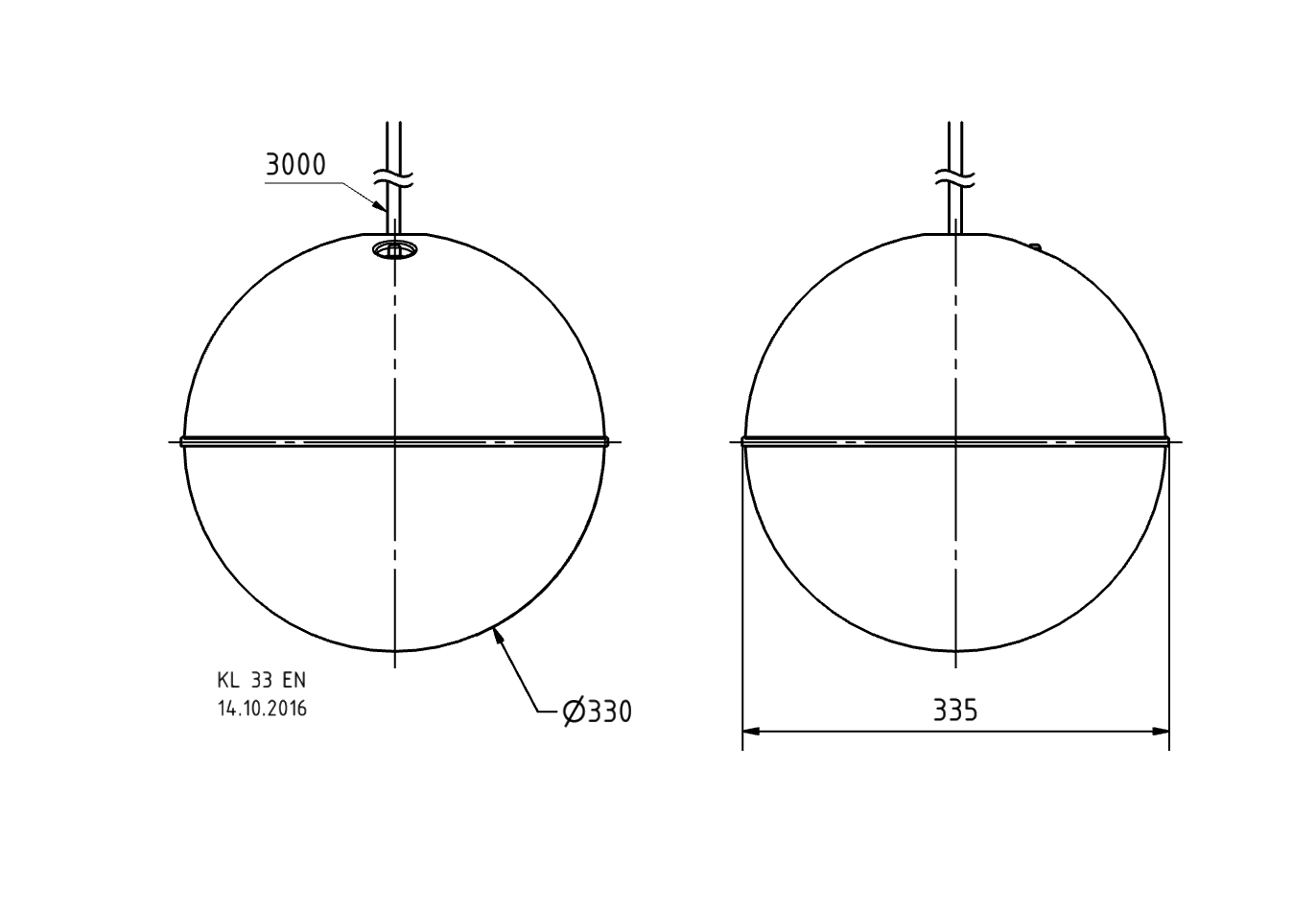

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
