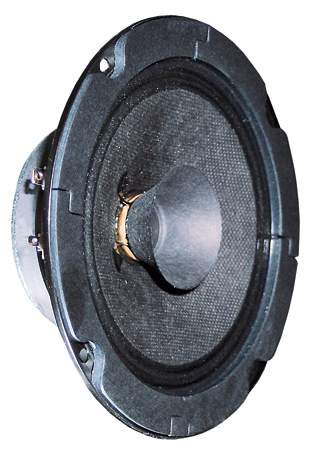

Visaton BG 13 P 8 Ohm, 5 Inch, Full Range Speaker

Part number: 3011

A 13 cm full-range driver with 92 dB sensitivity for speech-focused PA arrays, projection speakers and small monitors.

Nominal size
13 cm / 5 inch
Impedance
8 Ω
Rated power
20 W
Cut-out
110 mm
Sensitivity
92 dB (1 W/1 m)
Resonance
168 Hz
ex VAT
£19.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The BG 13 P combines a broad response with an 8 Ω load and 20 W rated power. Its compact round frame suits multi-driver and small-monitor designs.

Typical applications

  • PA arrays
  • Projection loudspeakers
  • Small monitor cabinets
Full specifications
BG 13 P · 8 Ω
Rated power20 W
Maximum power40 W
Nominal impedance8 Ω
Frequency response (−10 dB)120–20000 Hz
Mean sound pressure level92 dB (1 W/1 m)
Opening angle (-6 dB)61°/4000 Hz
Excursion limit±2 mm
Resonance frequency fs168 Hz
Magnetic induction1.0 T
Magnetic flux190 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4.5 mm
Cut-out110 mm
Net weight0.43 kg
D.C. resistance Rdc5.2 Ω
Mechanical Q factor Qms3.06
Electrical Q factor Qes1.58
Total Q factor Qts1.04
Equivalent volume Vas2.0 l
Effective piston area Sd68 cm²
Dynamically moved mass Mms3.0 g
Force factor Bxl3.2 Tm
Inductance of the voice coil L0.65 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

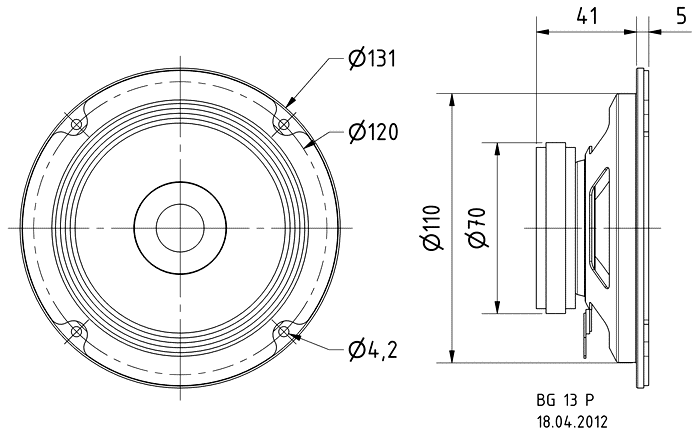

BG 13 P · 8 Ω · part 3011 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 110 mm panel opening and a 120 mm fixing circle, with space behind the speaker for the magnet and terminals. Choose the enclosure to suit the required response and available space.

Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
