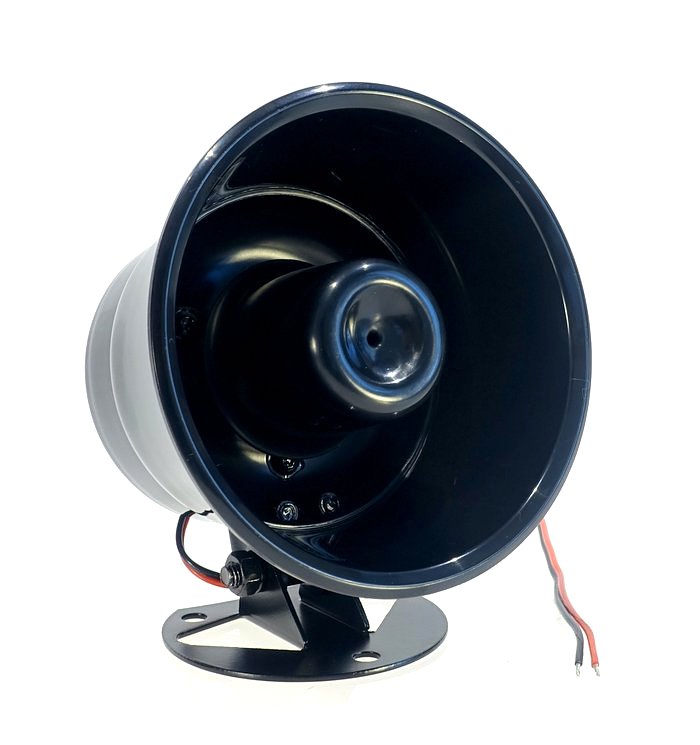

Visaton DK 115 S 8 Ohm, Re-Entrant Horn Speaker

Part number: 50211

A compact mid/high-frequency horn with a pivoting base for speech and alert systems.

Type
Horn speaker
Connection
8 Ω
Power / taps
15 W
Frequency range
700–15000 Hz
Finish
Black
Protection
IP66
ex VAT
£51.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DK 115 S is a 15 W, 8 Ω horn in black impact-resistant ABS. Its short body, adjustable base and additional rear M4 threads give several mounting options. The IP66 housing and 700–15000 Hz operating range suit speech reinforcement in industrial and outdoor installations.

Typical applications

  • Speech reproduction in public-address installations
  • Outdoor or industrial announcements
Full specifications
DK 115 S · 8 Ω
Rated power15 W
Nominal impedance8 Ω

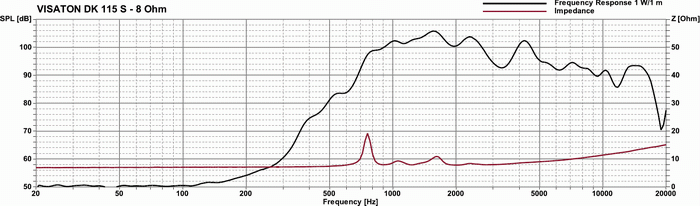

Frequency response (−10 dB)700–15000 Hz
Mean sound pressure level101 dB (1 W/1 m)
Net weight0.45 kg
Max. sound pressure level112 dB (15 W/1 m)
Length of cable0.35 m
Protective systemIP66
Temperature range−40 to 70 °C
ColourBlack
Horn mouth diameter115 mm
Horn depth shown in drawing87 mm
Height with base shown in drawing123 mm
Dimensions and drawings

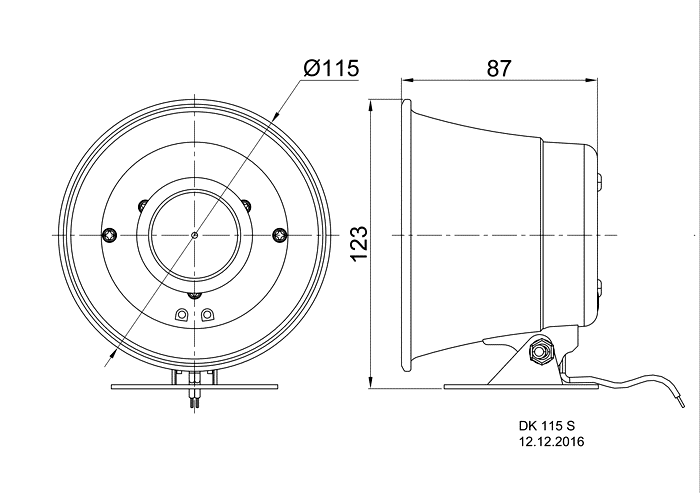

DK 115 S · 8 Ω · part 50211 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

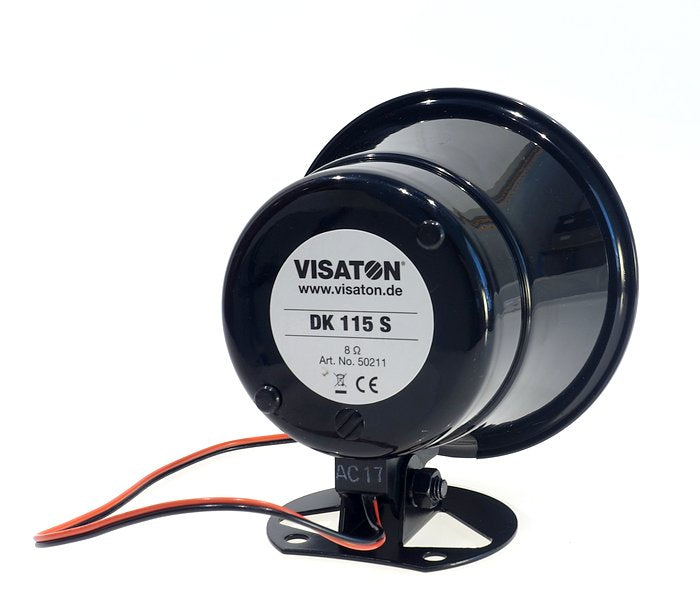

Use the pivoting metal base, or the two rear M4 threads where appropriate, to secure the horn. Allow for its 115 mm mouth, 87 mm body depth, base and cable before choosing the position.

Connect the 0.35 m cable to a compatible 8 Ω amplifier, observing the product connection markings. Protect the joint and keep strain off the lead.

Aim the horn towards the listening area and secure the pivot. Preserve the IP66 housing; the specified operating range begins at 700 Hz, so it is intended for speech and mid/high-frequency duties.
