Visaton DK 97 8 Ohm, Re-Entrant Horn Speaker

DK 97 · 8 Ω · part 50210 — Product photo

Product photo · Enlarge image

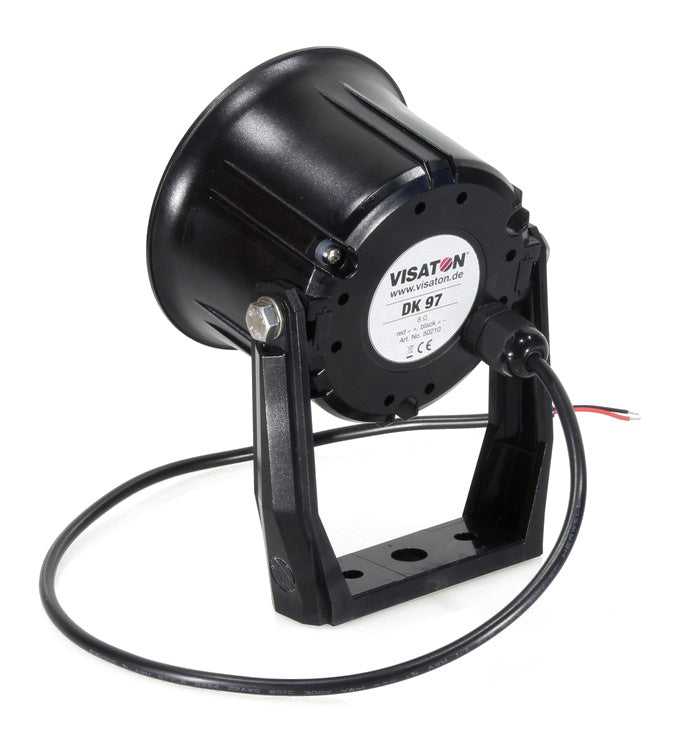

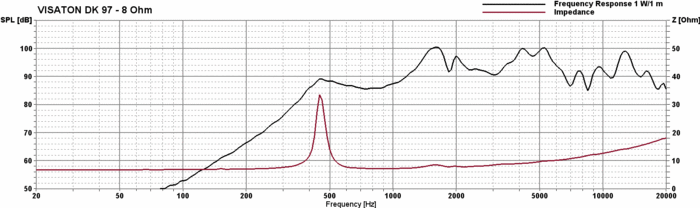

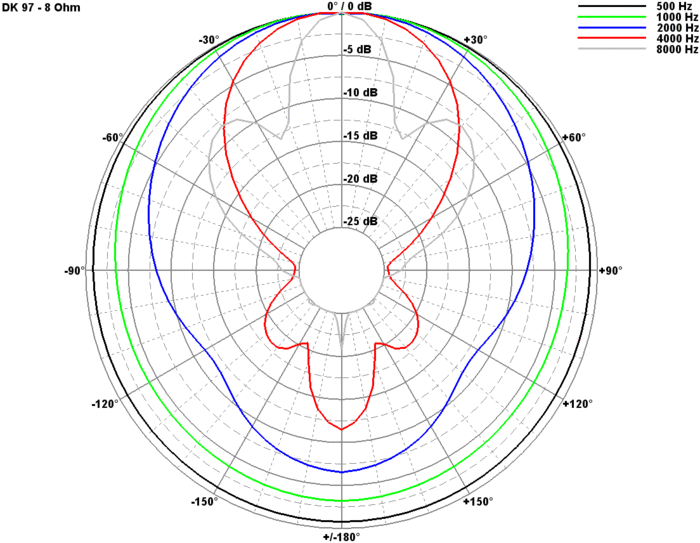

DK 97 · 8 Ω · part 50210 — Product photoProduct photo DK 97 · 8 Ω · part 50210 — Rear view and connectionsRear view and connections DK 97 · 8 Ω · part 50210 — Dimension drawingDimension drawing DK 97 · 8 Ω · part 50210 — Response and impedance · 8 ΩResponse and impedance · 8 Ω DK 97 · 8 Ω · part 50210 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DK 97 · 8 Ω · part 50210 — Product photo

Product photo

Open original image
Part number: 50210

A compact 8 Ω horn for speech and alert signals in exposed installations.

Type
Horn speaker
Connection
8 Ω
Power / taps
6 W
Frequency range
380–20000 Hz
Finish
Black
Protection
IP67
ex VAT
£100.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DK 97 combines a 97 mm horn mouth with a small mounting bracket and 0.5 m connection lead. The black IP67 design suits compact public-address and vehicle installations where intelligible speech matters more than bass reproduction.

Typical applications

  • Speech reproduction in public-address installations
  • Outdoor or industrial announcements
Full specifications
DK 97 · 8 Ω
Rated power6 W
Maximum power10 W
Nominal impedance8 Ω
Frequency response (−10 dB)380–20000 Hz
Mean sound pressure level93 dB (1 W/1 m)
Opening angle (-6 dB)69°/4000 Hz
Voice coil diameter15 mm
Net weight0.35 kg
Sound pressure level100 dB (1 W/1 m)@ 1600 Hz
ColourBlack
ConnectionsStripped ends (red cable = plus)
Length of cable0.5 m
Protective systemIP67
Temperature range-40 to 100 °C
Horn mouth diameter97 mm
Horn depth shown in drawing66.5 mm
Dimensions and drawings

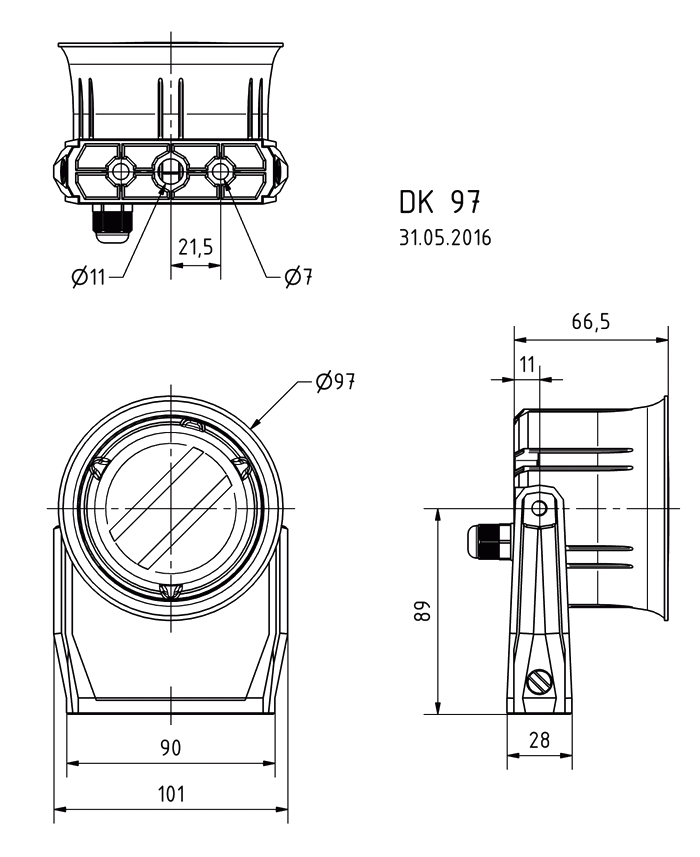

DK 97 · 8 Ω · part 50210 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the adjustable bracket and dimension drawing to check the fixing position and clearance around the 97 mm horn mouth. Select fixings suitable for the supporting surface and leave room for the lead.

Connect the 0.5 m stripped cable to a compatible 8 Ω amplifier; the red conductor is positive. Enclose and strain-relieve the joint for the installation environment.

Aim the horn towards listeners and secure the bracket. Preserve the enclosure and cable-entry seals; protect the cable joint separately from the IP67 horn.
