Visaton DL 10 100 V, 4 Inch, Ceiling Speaker

DL 10 · 100 V · part 50111 — Product photo

Product photo · Enlarge image

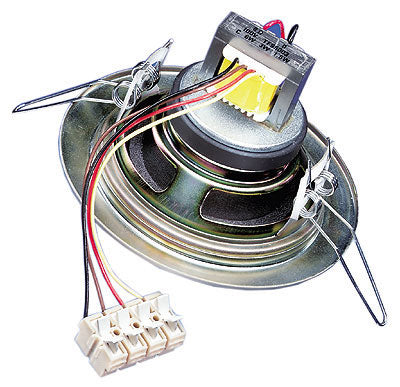

DL 10 · 100 V · part 50111 — Product photoProduct photo DL 10 · 100 V · part 50111 — Rear view and connectionsRear view and connections DL 10 · 100 V · part 50111 — Dimension drawingDimension drawing DL 10 · 100 V · part 50111 — Response and impedanceResponse and impedance DL 10 · 100 V · part 50111 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 10 · 100 V · part 50111 — Product photo

Product photo

Open original image
Part number: 50111

A compact white ceiling speaker with three selectable power taps for distributed 100 V sound systems.

Type
Ceiling speaker
Input
100 V
Transformer taps
6W/3W/1.5 W
Cut-out
110 mm
Face / finish
White, RAL 9010
Mean SPL
86 dB (1 W/1 m)
ex VAT
£51.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 10 is a ceiling speaker with a white, ral 9010 face for music and speech. Spring arms hold it in a circular opening, and spring terminals simplify the connection. This version includes a 100 V transformer with 6W/3W/1.5 W taps.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 10 · 100 V
Input100 V via fitted transformer
Frequency response (−10 dB)75–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)82°/4000 Hz
Excursion limit+/−2.5 mm
Resonance frequency140 Hz
Magnetic induction0.7 T
Magnetic flux130 µWb
Voice coil diameter20 mm
Cut-out diameter110 mm
Net weight0.545 kg
Transformer matching6W/3W/1.5 W
Sound pressure level90 dB (1 W/1 m)@ 2100Hz
Max. sound pressure level94 dB (6 W/1 m)
ColourWhite, RAL 9010
ConnectionsSpring terminals
Length of cable0.2 m
Protective systemIP54 — front side in a sealed enclosure
Temperature range−40 to 110 °C
Front diameter135 mm
Depth shown in drawing76 mm
Dimensions and drawings

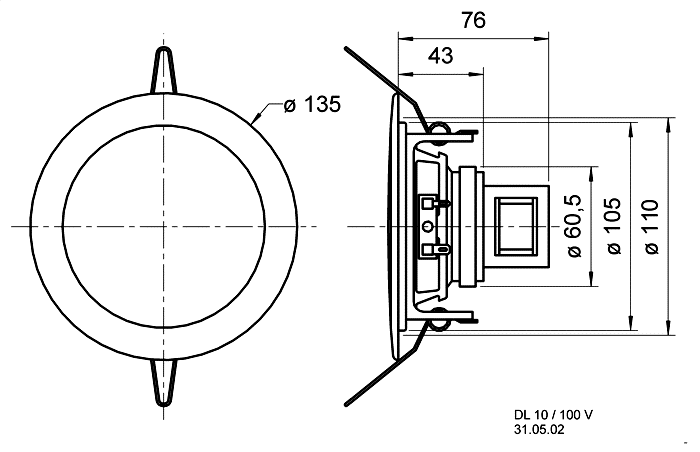

DL 10 · 100 V · part 50111 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 110 mm circular cut-out for the 135 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 76 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect the 100 V speaker line at the spring terminals and select the required 6W/3W/1.5 W tap according to the terminal markings. Keep polarity consistent and account for the chosen tap in the amplifier’s total line load. The transformer is included.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
