Visaton DL 18/1 100 V, 6.5 Inch, Ceiling Speaker (RAL 9010)

Part number: 50105

A 17 cm full-range ceiling speaker for 100 V systems, with a corrosion-free RAL 9010 grille and quick round-cut-out mounting.

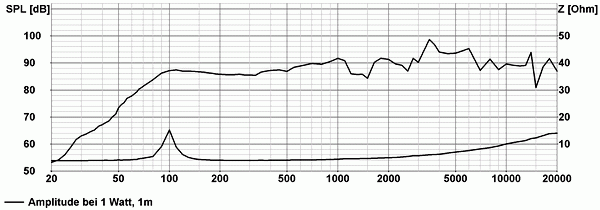

Frequency response
70–20000 Hz
Mean sound pressure level
93 dB (1 W/1 m)
Transformer matching
6 W/3 W/1.5 W
Cutout diameter
200 mm
Protective system
IP X3
Resonance frequency fs
100 Hz
ex VAT
£45.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 18/1 installs through a 200 mm round ceiling cut-out and uses a push-terminal block for 100 V connection and 6/3/1.5 W tap selection. Visaton lists 70–20000 Hz response, 93 dB mean sound pressure, IPX3 protection and a −40 to 110 °C operating range. The grille attaches by bayonet fitting.

Typical applications

  • Commercial 100 V audio systems
  • Speech and programme reproduction
  • Fixed installations using the published transformer taps
Full specifications
DL 18/1 100 V, 6.5 Inch, Ceiling Speaker (RAL 9010)
Frequency response70–20000 Hz
Mean sound pressure level93 dB (1 W/1 m)

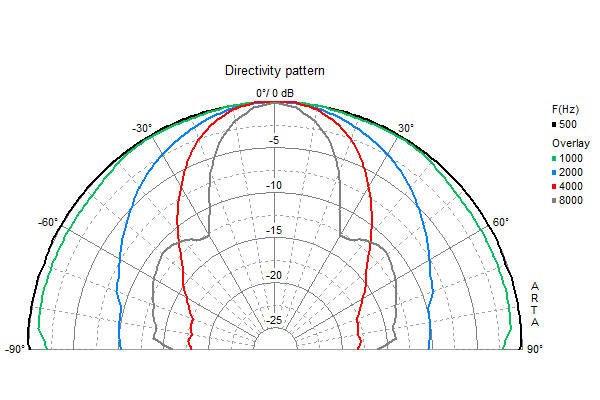

Opening angle (-6 dB)57°/4000 Hz
Resonance frequency fs100 Hz
Voice coil diameter20 mm
Cutout diameter200 mm
Net weight1.15 kg
Transformer matching6 W/3 W/1.5 W
Sound pressure level101 dB (1 W/1 m)@ 3260 Hz
Max. sound pressure level101 dB (6 W/1 m)
ColourRAL 9010
ConnectionsSpring terminals
Protective systemIP X3
Temperature range−40 ... 110 °C
Dimensions and drawings
Visaton DL 18/1 - 100 V (RAL 9010) — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Isolate the 100 V line before wiring and select the transformer tap for the required local level.

Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.

Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
