Visaton DL 18/2 100 V, 6.5 Inch, Ceiling Speaker

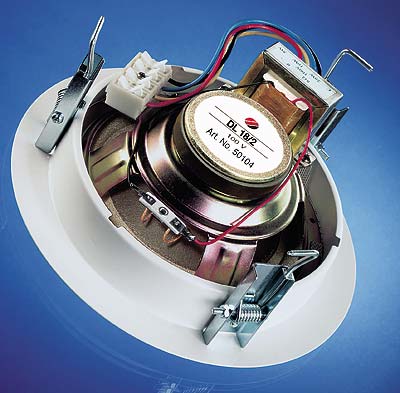

DL 18/2 · 100 V · part 50104 — Product photo

Product photo · Enlarge image

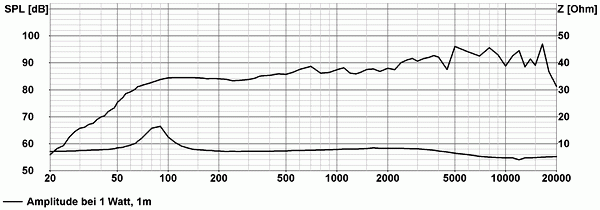

DL 18/2 · 100 V · part 50104 — Product photoProduct photo DL 18/2 · 100 V · part 50104 — Rear view and connectionsRear view and connections DL 18/2 · 100 V · part 50104 — Dimension drawingDimension drawing DL 18/2 · 100 V · part 50104 — 8 Ω driver response reference8 Ω driver response reference DL 18/2 · 100 V · part 50104 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 18/2 · 100 V · part 50104 — Product photo

Product photo

Open original image
Part number: 50104

A coaxial ceiling speaker with a built-in transformer and three power taps for 100 V sound systems.

Type
Coaxial ceiling speaker
Input
100 V
Transformer taps
20 W/10 W/5 W
Cut-out
200 mm
Face / finish
White, RAL 9010
Mean SPL
90 dB (1 W/1 m)
ex VAT
£86.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 18/2 uses a two-way coaxial driver behind a white, corrosion-resistant grille for music and speech in suspended ceilings. The speaker and mounting ring fit into a round opening, and the grille attaches with a bayonet connection. This version includes a 100 V transformer with 20, 10 and 5 W taps.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 18/2 · 100 V
Input100 V via fitted transformer
Frequency response (−10 dB)50–20000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)64°/4000 Hz
Resonance frequency90 Hz
Magnetic induction0.95 T
Magnetic flux310 µWb
Height of front pole-plate3 mm
Voice coil diameter25 mm
Height of winding6 mm
Cut-out diameter200 mm
Net weight1.5 kg
Transformer matching20 W/10 W/5 W
Sound pressure level94 dB (1 W/1 m)@ 4954 Hz
Max. sound pressure level103 dB (20 W/1 m)
ColourWhite, RAL 9010
ConnectionsSpring terminals
Protective systemIPX3
Temperature range−40 to 80 °C
Front diameter218 mm
Depth shown in drawing93 mm including fixing brackets
Dimensions and drawings

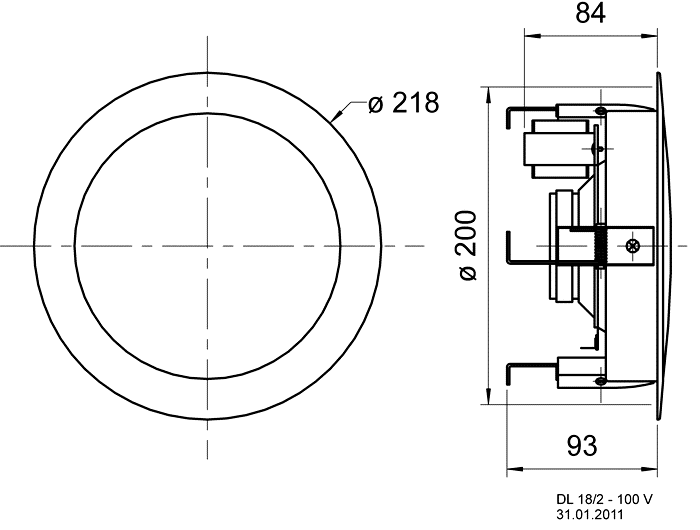

DL 18/2 · 100 V · part 50104 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 200 mm circular cut-out for the 218 mm face. Fit the speaker with its mounting ring using the snap-in fixings, then attach the grille with the bayonet connection. Allow for the 93 mm depth shown in the dimension drawing for the full fixing-bracket envelope, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect the 100 V speaker line at the spring terminals and select the required 20 W/10 W/5 W tap according to the terminal markings. Keep polarity consistent and account for the chosen tap in the amplifier’s total line load. The transformer is included.

FD 18 (50103) and FD 18 L (50123) are optional rear covers. They are not suitable for F30 fire-protection ceilings; a separate suitable ceiling-housing system is required where the installation calls for one.
