Visaton DL 25 100 V/8 Ohm, 10 Inch, Ceiling Speaker

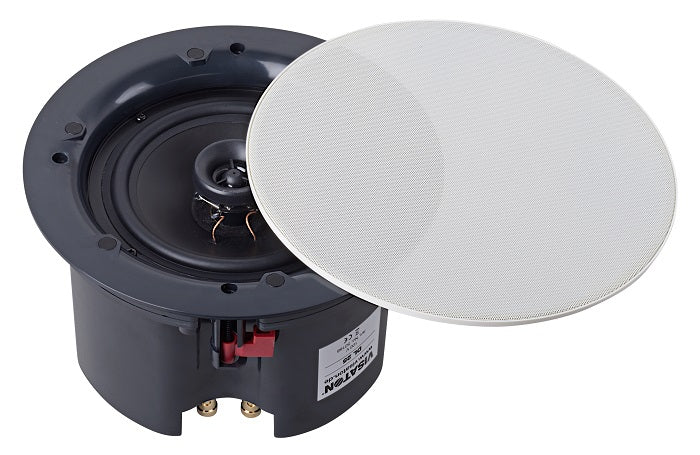

DL 25 · 100 V / 8 Ω · part 50168 — Product and rear view

Product and rear view · Enlarge image

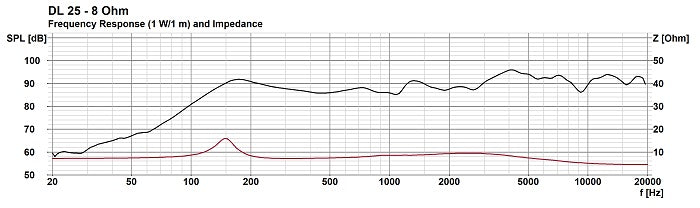

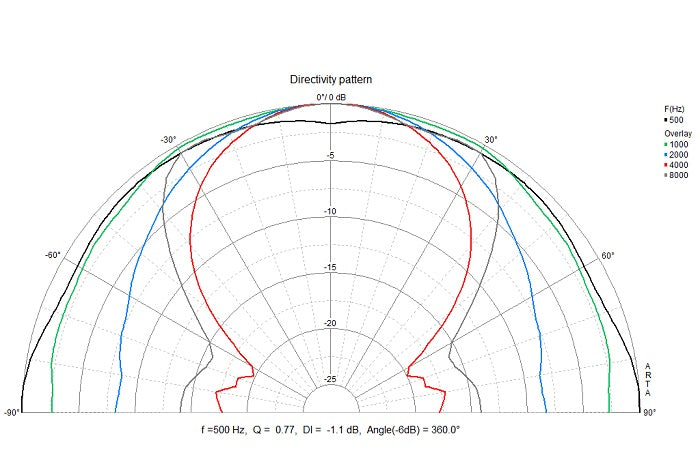

DL 25 · 100 V / 8 Ω · part 50168 — Product and rear viewProduct and rear view DL 25 · 100 V / 8 Ω · part 50168 — Removable magnetic grilleRemovable magnetic grille DL 25 · 100 V / 8 Ω · part 50168 — Dimension drawingDimension drawing DL 25 · 100 V / 8 Ω · part 50168 — Response and impedance — 8 Ω connectionResponse and impedance — 8 Ω connection DL 25 · 100 V / 8 Ω · part 50168 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 25 · 100 V / 8 Ω · part 50168 — Product and rear view

Product and rear view

Open original image
Part number: 50168

A ceiling speaker with a coaxial driver, removable magnetic grille and a choice of 100 V or 8 Ω connection.

Type
Coaxial ceiling speaker
Input
100 V / 8 Ω
Rated power
20 W
Cut-out
212 mm
Face / finish
White, RAL 9010
Mean SPL
90 dB (1 W/1 m)
ex VAT
£219.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 25 houses a 13 cm coaxial driver behind a white 245 mm face. Four clamps secure it in a ceiling opening, while the magnetic grille removes for access. It can connect through its 100 V transformer taps or an 8 Ω input, making it suitable for music and speech in shops, homes and hotels.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 25 · 100 V / 8 Ω
Input options100 V transformer taps or 8 Ω
Rated power20 W
Maximum power30 W
Nominal impedance8 Ω
Frequency response (−10 dB)90 - 20000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)70°/ 4000 Hz
Resonance frequency150 Hz
Cut-out diameter212 mm
Net weight2.0 kg
Transformer matching20 W/10 W/5 W/2.5 W/8 Ω
Sound pressure level96 dB (1 W/1 m)@ 4114 Hz
Max. sound pressure level103 dB (20 W/1 m)
ColourWhite, RAL 9010
ConnectionsSpring terminals
Mounting depth150.5 mm
Temperature range-40 to 70 °C
Front diameter245 mm
Dimensions and drawings
DL 25 · 100 V / 8 Ω · part 50168 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 212 mm circular cut-out for the 245 mm face. Tighten its four mounting clamps to secure the unit and refit the magnetic grille. Allow for the 150.5 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Choose either a 100 V line tap (20, 10, 5 or 2.5 W) or the 8 Ω connection to suit the sound system. Use the marked terminals and do not combine the two input arrangements. Keep the selected transformer tap within the amplifier’s available line capacity.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
