Visaton DL 8 100 V, 3.3 Inch, Ceiling Speaker

DL 8 · 100 V · part 50198 — Product photo

Product photo · Enlarge image

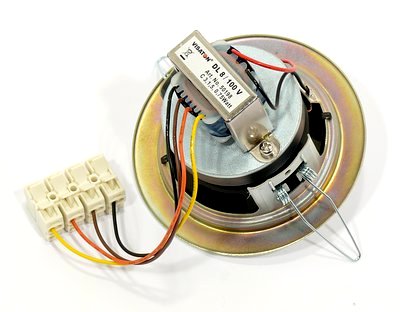

DL 8 · 100 V · part 50198 — Product photoProduct photo DL 8 · 100 V · part 50198 — Rear view and connectionsRear view and connections DL 8 · 100 V · part 50198 — Dimension drawingDimension drawing DL 8 · 100 V · part 50198 — Response and impedanceResponse and impedance DL 8 · 100 V · part 50198 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 8 · 100 V · part 50198 — Product photo

Product photo

Open original image
Part number: 50198

A small white ceiling speaker with a built-in transformer for distributed 100 V speech and music systems.

Type
Ceiling speaker
Input
100 V
Transformer taps
3 W/1.5 W/0.75 W
Cut-out
93 mm
Face / finish
White, RAL 9010
Mean SPL
87 dB (1 W/1 m)
ex VAT
£43.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 8 is a ceiling speaker with a white, ral 9010 face for music and speech. Spring arms hold it in a circular opening, and spring terminals simplify the connection. This version includes a 100 V transformer with 3 W/1.5 W/0.75 W taps.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 8 · 100 V
Input100 V via fitted transformer
Frequency response (−10 dB)90–18000 Hz
Mean sound pressure level87 dB (1 W/1 m)
Opening angle (-6 dB)112°/4000 Hz
Height of front pole-plate3 mm
Voice coil diameter14 mm
Cut-out diameter93 mm
Net weight0.515 kg
Transformer matching3 W/1.5 W/0.75 W
Sound pressure level90 dB (1 W/1 m)@ 3600 Hz
Max. sound pressure level91 dB (3 W/1 m)
ColourWhite, RAL 9010
ConnectionsSpring terminals
Length of cable0.15 m
Protective systemIP54 — front side in a sealed enclosure
Temperature range−40 to 110 °C
Front diameter105 mm
Depth shown in drawing74 mm
Dimensions and drawings

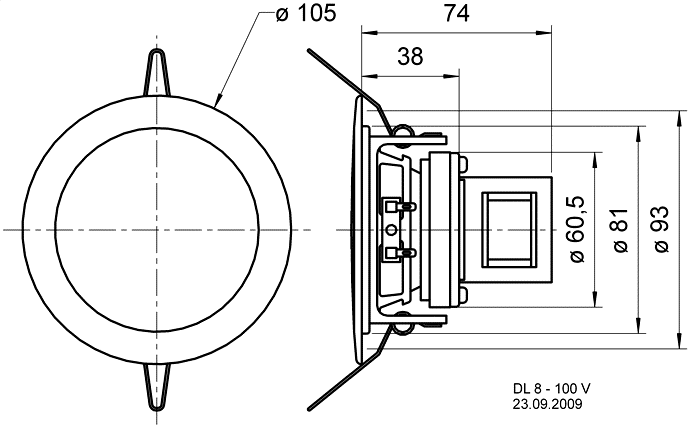

DL 8 · 100 V · part 50198 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 93 mm circular cut-out for the 105 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 74 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect the 100 V speaker line at the spring terminals and select the required 3 W/1.5 W/0.75 W tap according to the terminal markings. Keep polarity consistent and account for the chosen tap in the amplifier’s total line load. The transformer is included.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
