Visaton DPS 26 100 V, Dipole Flat-Panel Speaker (Silver)
Product photo · Enlarge image

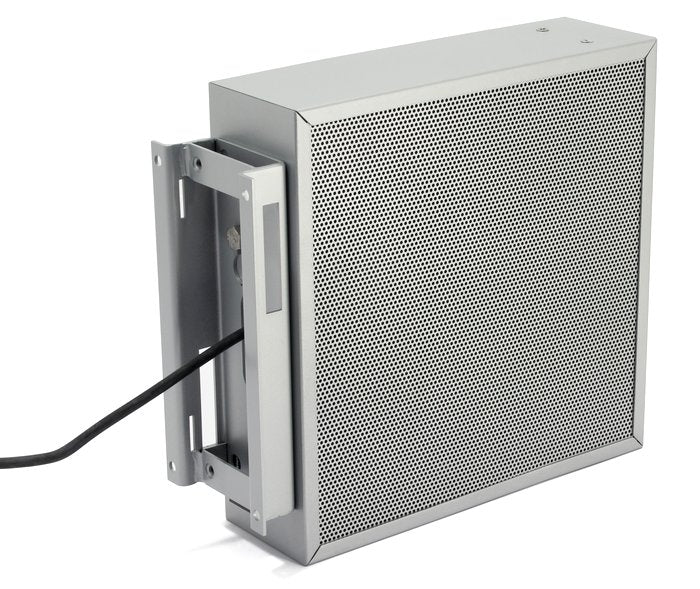

Product photo
Rear view and connections

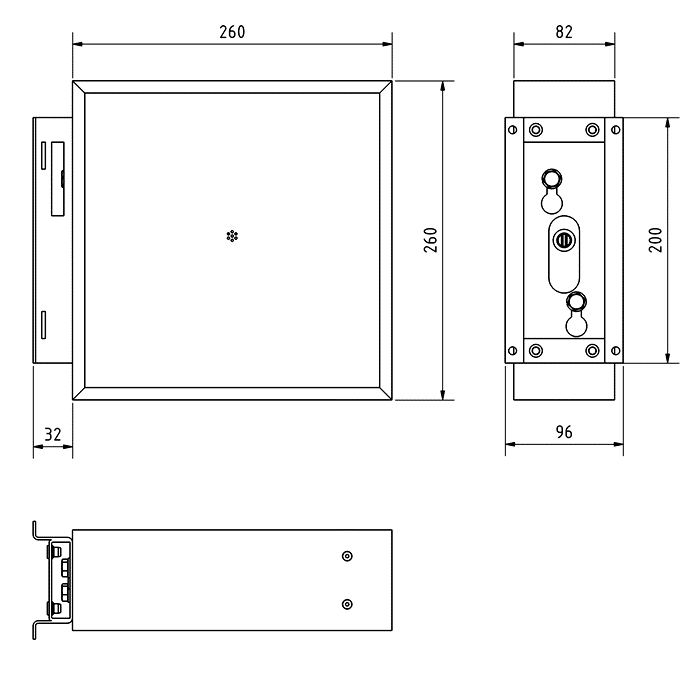

Dimension drawing

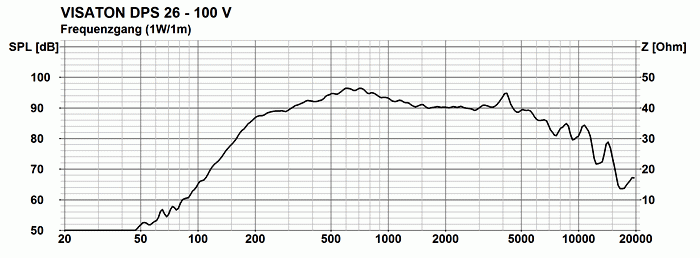

Frequency response

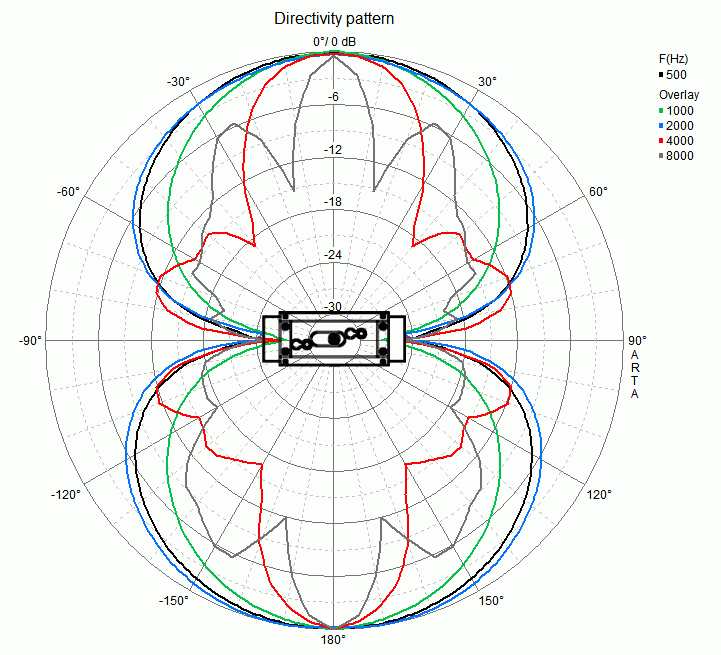

Horizontal directivity

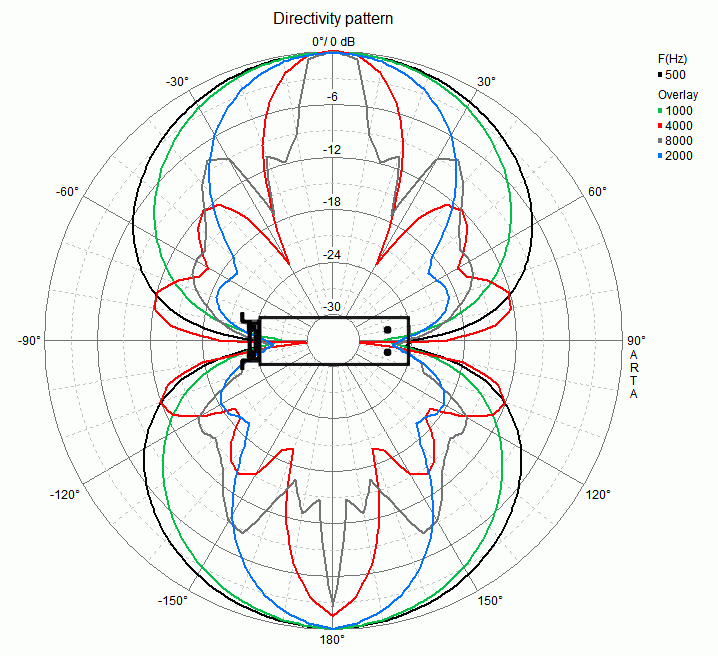

Vertical directivity
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DPS 26 uses a square aluminium housing and dipole radiation to concentrate speech towards the intended listening area. Its 100 V transformer offers six power settings. The RAL 9006 finish and IP55 construction suit outdoor public-address work, with the installation and aim chosen for the site.
Typical applications
- Railway-platform announcements
- Speech coverage along narrow public areas
Full specifications
| Frequency response (−10 dB) | 200–18000 Hz |
|---|---|
| Mean sound pressure level | 92 dB (1 W/1 m) |
| Net weight | 3.2 kg |
| Transformer matching | 6/3/1.5/1/0.5/0.3 W |
| Max. sound pressure level | 100 dB (6 W/1 m) |
| Colour | Silver, RAL 9006 |
| Length of cable | 3 m |
| Protective system | IP55 |
| Temperature range | −40 to 80 °C |
| Housing dimensions (W × H × D) | 260 × 260 × 82 mm |
| 100 V connection: Red / White | 6 W |
| 100 V connection: White / Yellow | 3 W |
| 100 V connection: Yellow / Black | 1.5 W |
| 100 V connection: Red / Yellow | 1 W |
| 100 V connection: White / Black | 0.5 W |
| 100 V connection: Red / Black | 0.3 W |
Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Plan for the 260 × 260 × 82 mm housing plus the bracket and cable. Use the mounting drawing and a fixing arrangement suitable for the 3.2 kg assembly. Keep both radiating faces clear and aim them along the intended listening area.
Choose the required 100 V tap using the manufacturer’s wire-pair table before connecting. Keep the unused conductors individually insulated and protect the cable joint against the installation environment.
Make the connection through the supplied 3 m cable without opening the cabinet. Maintain its seals and avoid obstructions immediately against either face.
