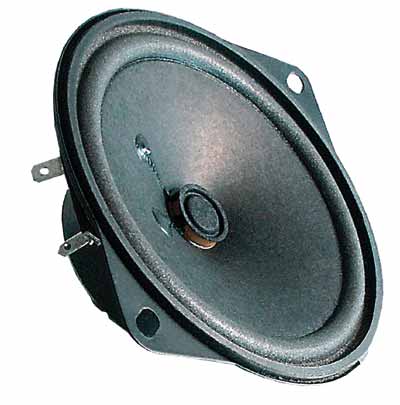

Visaton FR 10 F 4 Ohm, 4 Inch, Full Range Speaker

Part number: 4622

A shallow 10 cm full-range driver with two fixing lugs for vehicle audio and compact panel installations.

Nominal size
10 cm / 4 inch
Impedance
4 Ω
Rated power
20 W
Cut-out
94 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
150 Hz
ex VAT
£8.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

This 4 Ω model specifies 20 W rated power and a response extending to 22 kHz at −10 dB. Its two-lug frame differs from the four-slot FR 10.

Typical applications

  • Vehicle audio installations
  • Compact built-in music systems
Full specifications
FR 10 F · 4 Ω
Rated power20 W
Maximum power30 W
Nominal impedance4 Ω
Frequency response (−10 dB)100–22000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)122°/4000 Hz
Excursion limit±4 mm
Resonance frequency fs150 Hz
Height of front pole-plate3 mm
Voice coil diameter14 mm
Height of winding2.5 mm
Cut-out94 mm
Net weight0.2 kg
D.C. resistance Rdc3.7 Ω
Mechanical Q factor Qms6.5
Electrical Q factor Qes1.99
Total Q factor Qts1.52
Equivalent volume Vas2.2 l
Effective piston area Sd52 cm²
Dynamically moved mass Mms2.4 g
Force factor Bxl1.7 Tm
Inductance of the voice coil L0.35 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings
FR 10 F · 4 Ω · part 4622 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 94 mm panel opening and a 115.5 mm fixing pitch. Leave room behind the speaker for the magnet, terminals and wiring. Optional grilles: 4640, 4642 and 4744.

Use an amplifier suitable for the 4 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
